Removing the lcd module – Aspire Digital 8730Z User Manual
Page 94
84
Chapter 3
Removing the LCD Module
1.
See “Removing the Battery Pack” on page 54.
2.
See “Removing the SD dummy card” on page 55.
3.
See “Removing the ExpressCard dummy card” on page 56.
4.
See “Removing the Lower Cover” on page 56.
5.
See “Removing the TV Tuner Board Modules” on page 58.
6.
See “Removing the TV Tuner Board Modules” on page 58.
7.
See “Removing the Middle Cover” on page 73.
8.
See “Removing the Keyboard” on page 74.
9.

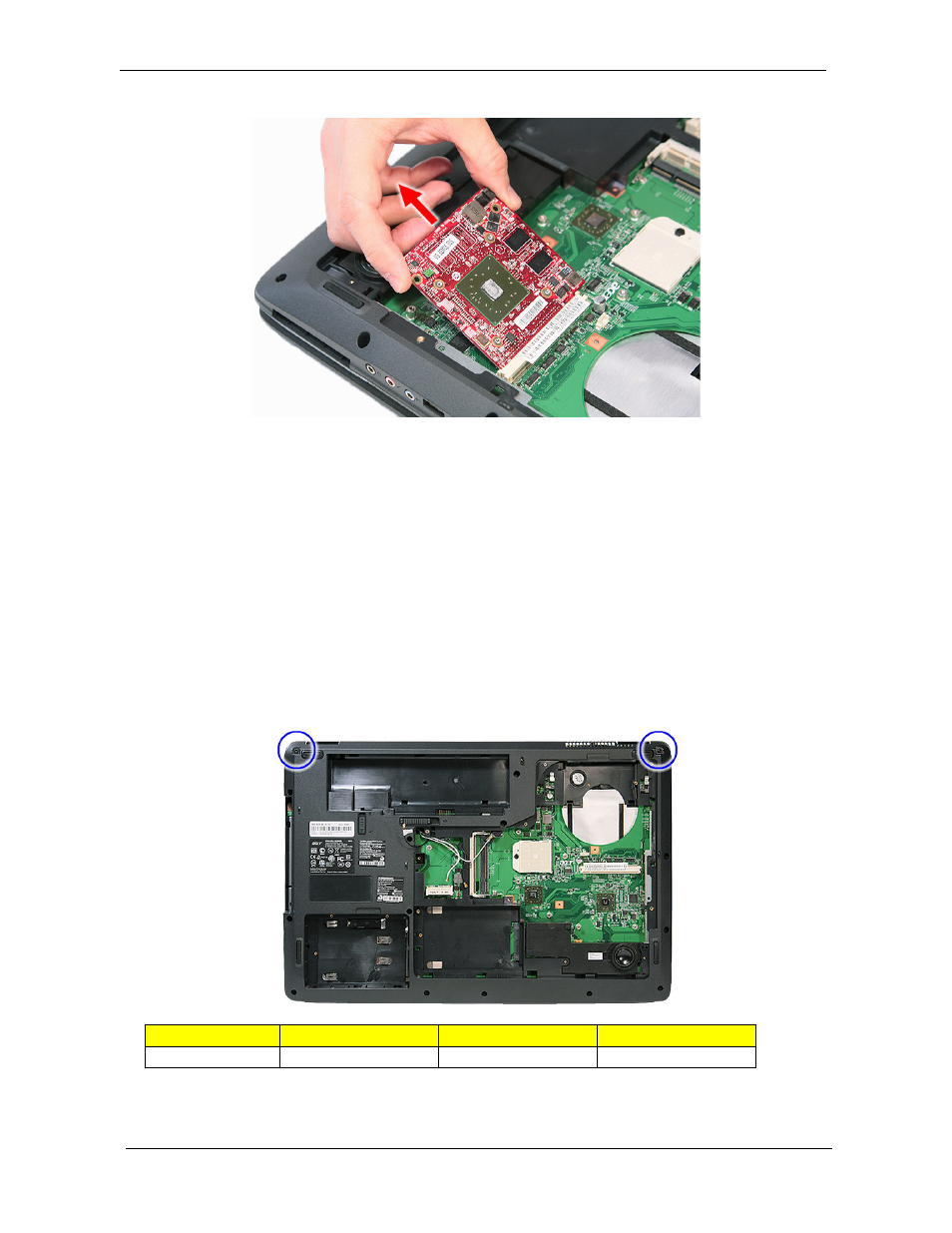

Turn over the system and remove the two screws (A) from the bottom of the left and right hinges.
Step
Size (Quantity)
Color
Torque
1~2
M2.5 x L8 (2)
Black
3.0 kgf-cm
