Page 103
Chapter 3
93

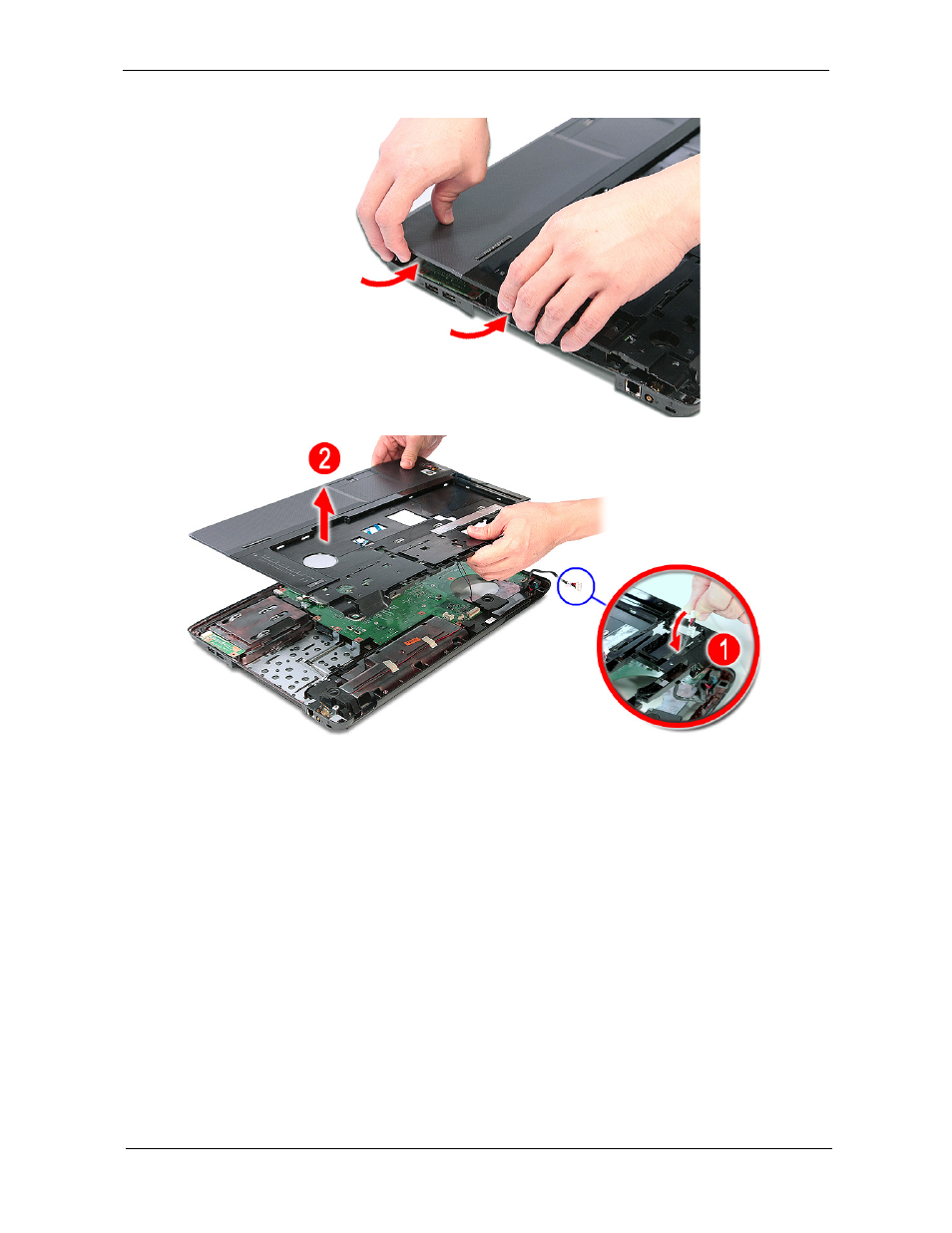

24. Gently remove the upper case from the lower case.
CAUTION: Remember to release the power cable from the hole on the upper case before removing the upper
case from the system.
Removing the E-Key Board
1.
See “Removing the Battery Pack” on page 54.
2.
See “Removing the SD dummy card” on page 55.
3.
See “Removing the ExpressCard dummy card” on page 56.
4.
See “Removing the Lower Cover” on page 56.
5.
See “Removing the DIMM” on page 58.
6.
See “Removing the TV Tuner Board Modules” on page 58.
7.
See “Removing the TV Tuner Board Modules” on page 58.
8.
See “Removing the Hard Disk Drive Module 1” on page 64.
9.
See “Removing the Hard Disk Drive Module 2” on page 66.
10. See “Removing the Hard Disk Drive Module 2” on page 66.
11. See “Removing the Middle Cover” on page 73.
