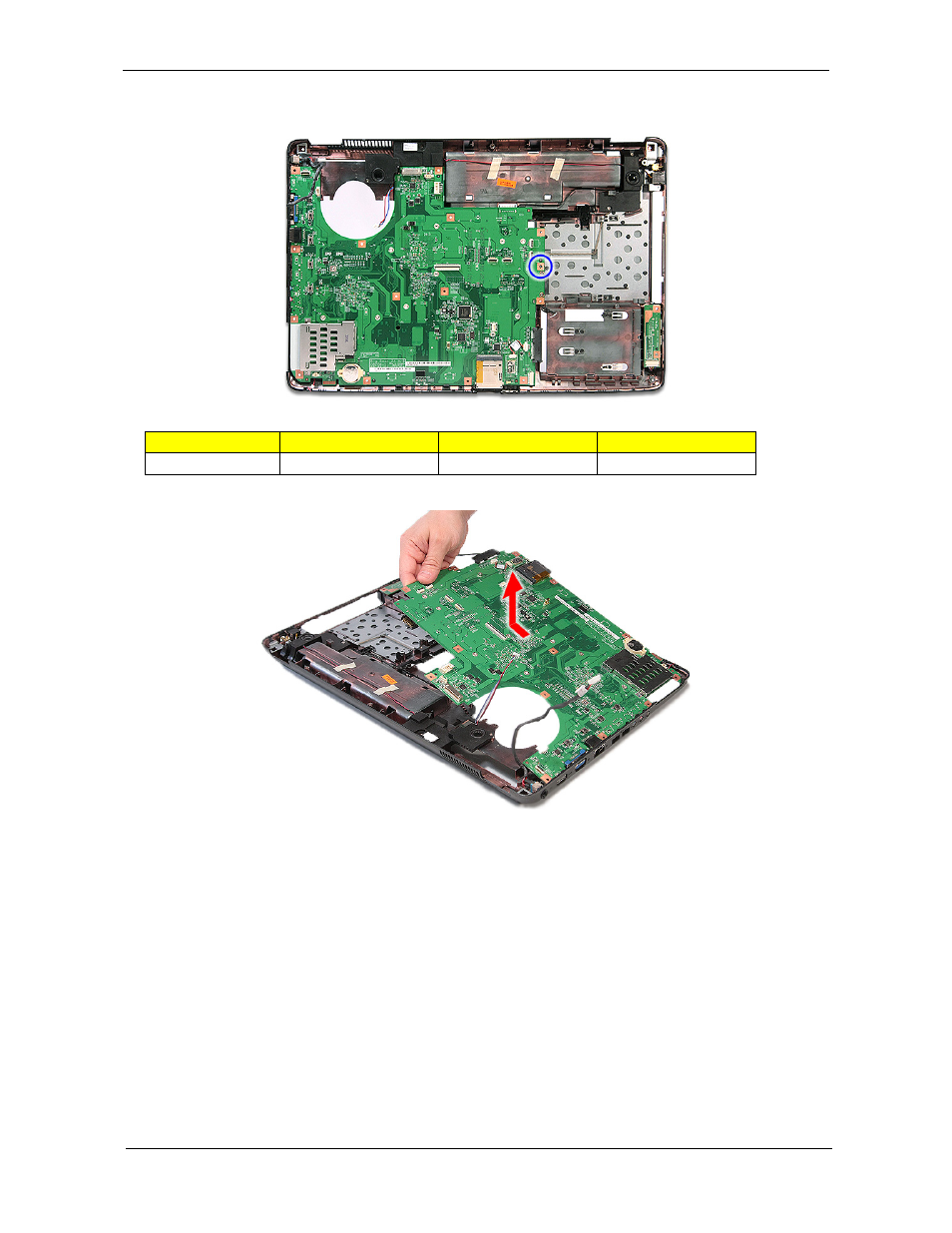

20. Remove the one screw (B) securing the main board in place.
21. Carefully remove the main board.
Removing the Speaker Module
1.
See “Removing the Battery Pack” on page 54.
2.
See “Removing the SD dummy card” on page 55.
3.
See “Removing the ExpressCard dummy card” on page 56.
4.
See “Removing the Lower Cover” on page 56.
5.
See “Removing the DIMM” on page 58.
6.
See “Removing the TV Tuner Board Modules” on page 58.
7.
See “Removing the TV Tuner Board Modules” on page 58.
8.
See “Removing the Hard Disk Drive Module 1” on page 64.
9.
See “Removing the Hard Disk Drive Module 2” on page 66.
10. See “Removing the Hard Disk Drive Module 2” on page 66.
Step
Size (Quantity)
Color
Torque
1
M2 x L4 (1)
Silver
1.6 kgf-cm
