4” wall mount, Installation – Maximum Wall Mount - 4" User Manual
Page 2
4” WALL MOUNT
INSTALLATION
30 Samuel Barnet Blvd.
New Bedford, MA 02745
(508) 995-2200
Page 2
1/8” PILOT
HOLES
4

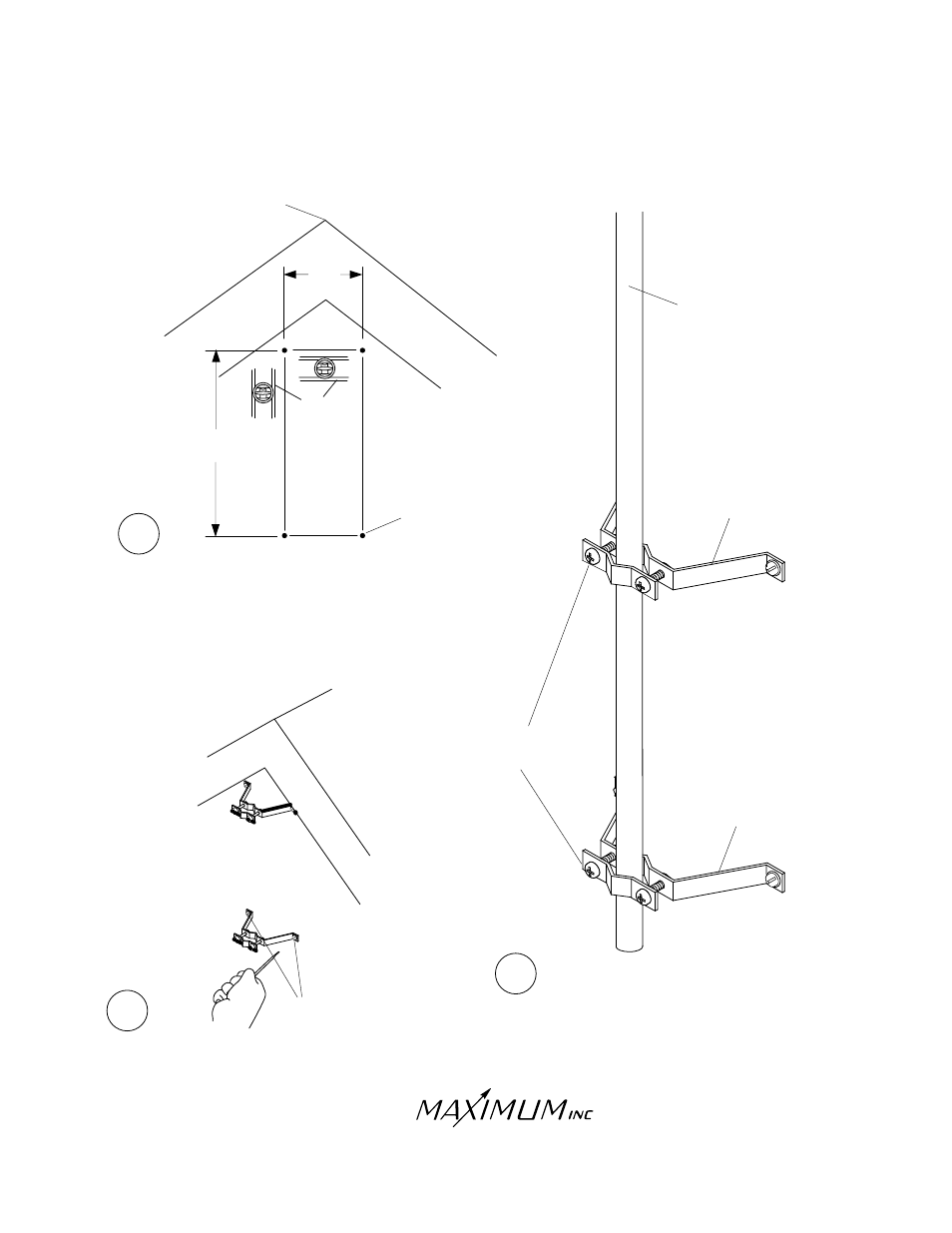

Drill two 1/8” level pilot holes 8 1/4” apart for each
bracket. Brackets must be separated from each
other by at least 18” for mast stability. Both
brackets must be aligned vertically for the mast
to be straight when installed.
5
6
Slip mast into brackets and tighten
with the carriage bolts.
4 INCH
BRACKET
MAST
ROOF
PEAK
8 1/4”
18”
MINIMUM
LEVEL
ROOF
PEAK
4 INCH
BRACKET
CLAMPING
SCREWS
LAG SCREWS
Secure the brackets
with the lag screws
