Chapter 3: Basic Operations 21

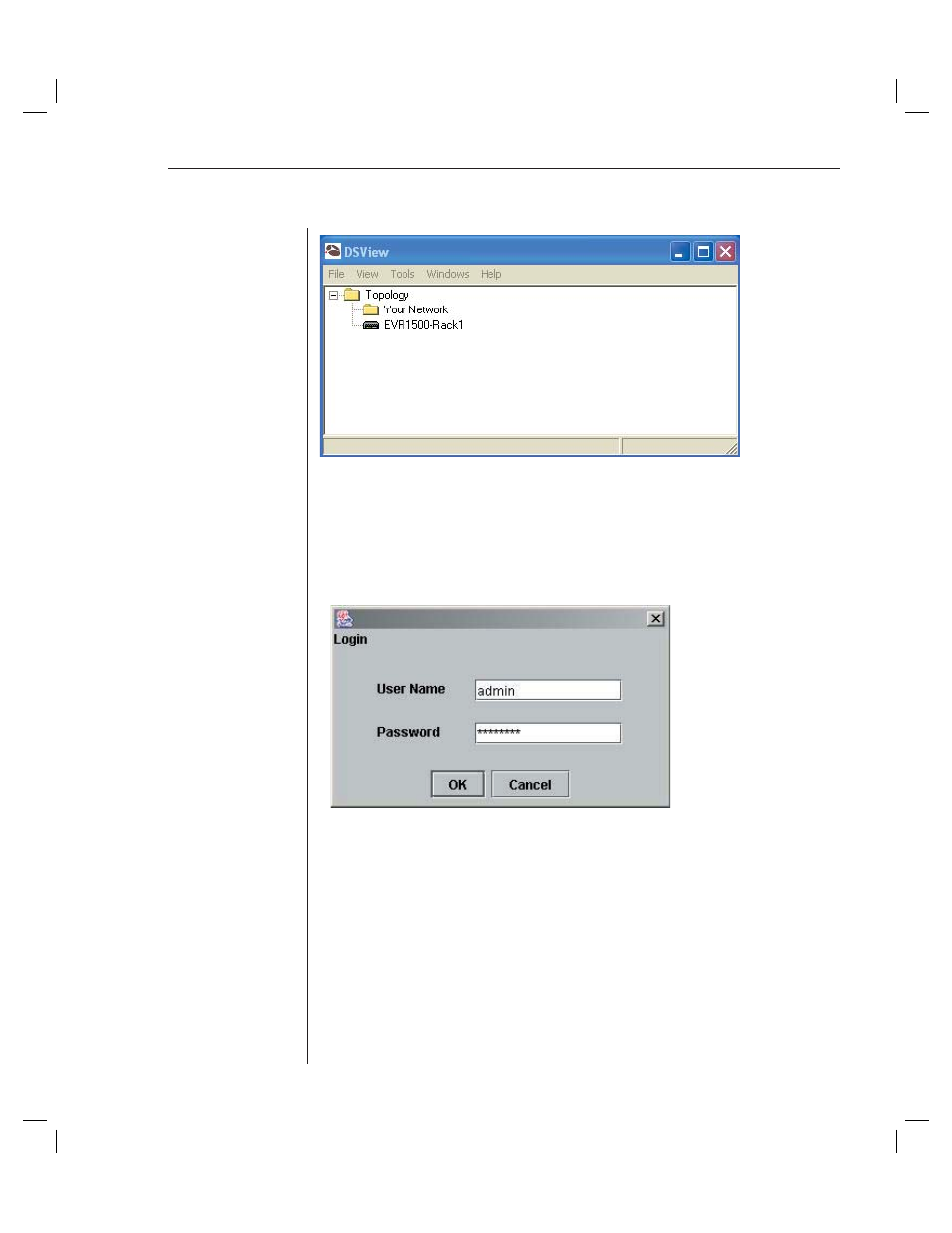

Figure 3.3: DSView Software Window
3. Double-click the Topology icon. The EVR1500 environmental monitor
appliance icon displays.
4. Double-click the EVR1500 environmental monitor appliance icon. Internet
Explorer is launched and the Login window displays. This action loads
the Java applet.
Figure 3.4: Login Window
5. Type admin in the User Name fi eld.
6. Type password in the Password fi eld. Click OK.
Configuring the Network
You can configure the network and set parameters for the SMTP (Simple Mail
Transfer Protocol) email server through the web GUI Network tab. If you have
already configured your network through HyperTerminal, the values will be
automatically populated; you can bypass the following steps provided and
proceed to Configuring the Email Server.
