Appendix E. NL100 to MD485 Network
It is possible to access an MD485 network via a TCP/IP network using an
NL100. See Figure E-1.
To wall transformer
NL100 NETW ORK LINK INTERF
ACE
POWER
RS485
Logan, Utah
RS485
CS I/O
CS I/O
RS232
RS232
LAN LINK 10 B ASE T
MADE IN USA
SN:
10 BASE T LINK LAN
G 12V
To TCP/IP Network

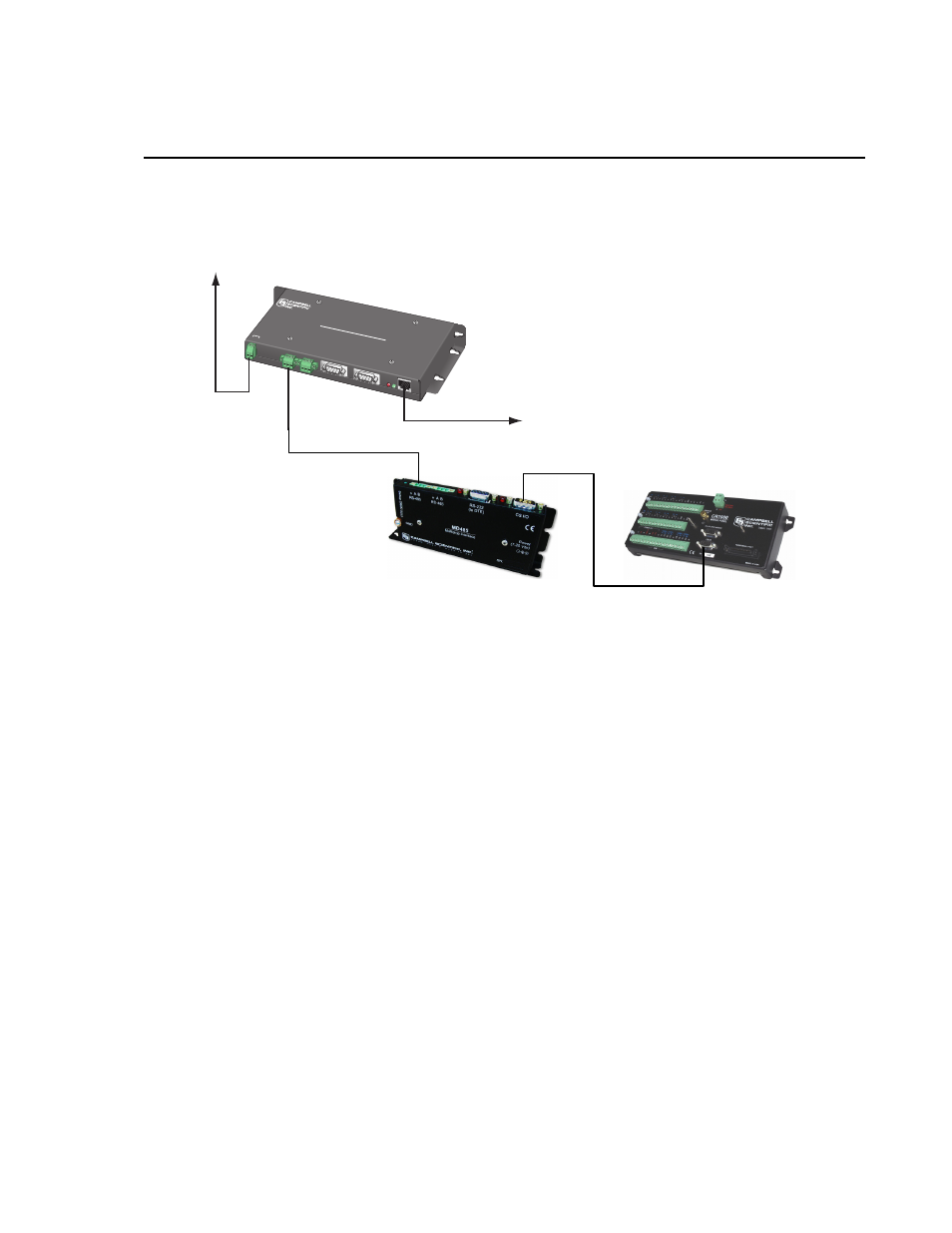

FIGURE E-1. NL100 to MD485 Conversion
Where an NL100 to MD485 network is desired, the following configurations
will provide communications in transparent mode, with MD9 emulation or
with PakBus Networking. The NL100 does not perform MD9 emulation. So
at least two MD485s are always required for MD9 emulation with an NL100.
1. HARDWARE REQUIREMENTS
a. MD485(s)
b. NL100
c. NL100 Transformer (CSI Item #13947) or other source of power for
NL100
d. Ethernet Cable
e. SC12 cable(s) (one included with each MD485)
f. CABLE2TP
cable
2. TRANSPARENT COMMUNICATION (POINT-TO-POINT)
PC------------NL100---MD485-DL
LoggerNet Setup
a. Setup:
IPPort
PakBus Port (PakBus dataloggers only)
CR1000
E-1
