2. bubble chamber installation – Campbell Scientific CS470/CS471 Compact Bubbler System User Manual
Page 20
CS470/CS471 Compact Bubbler System

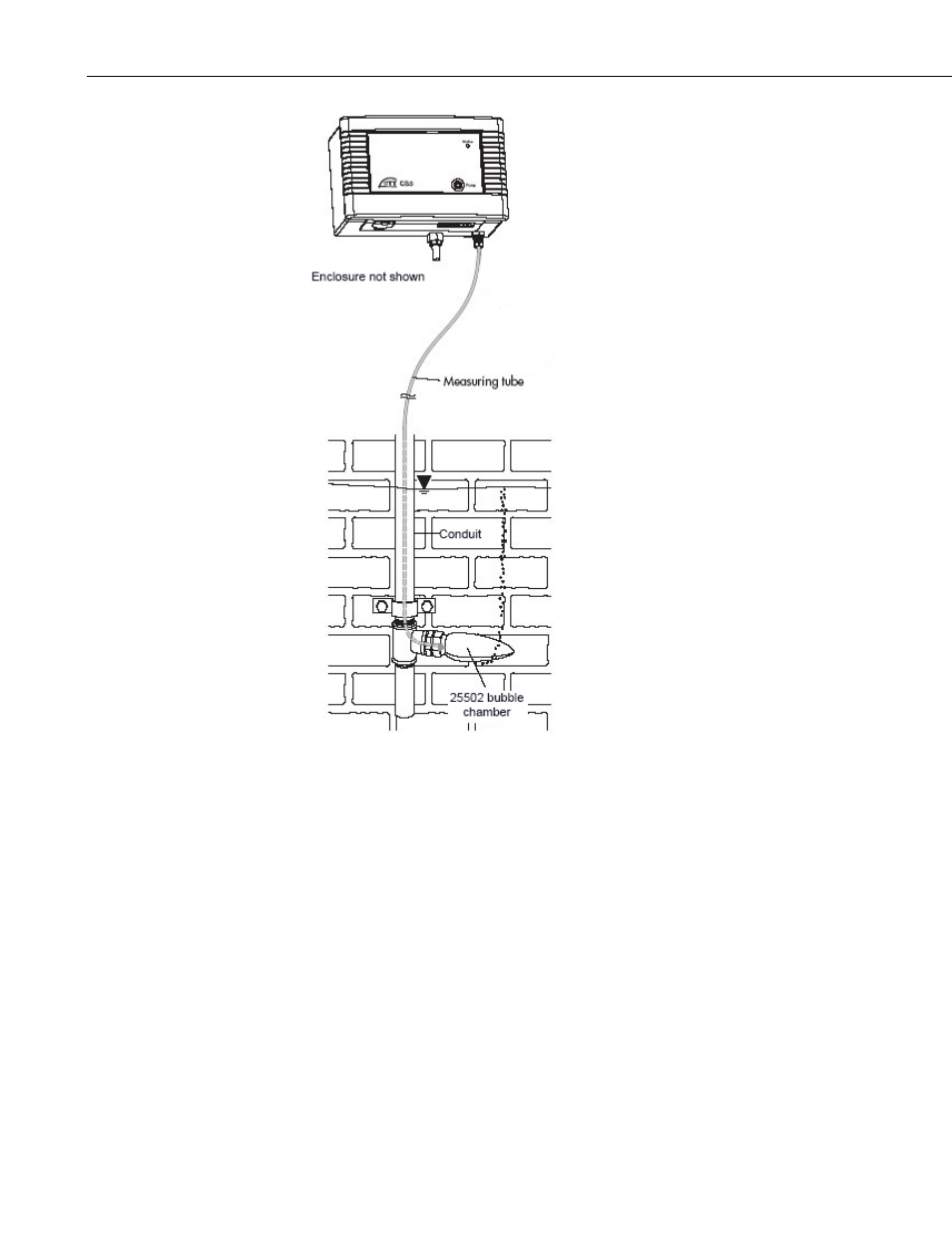

FIGURE 7-2. Bubble Chamber Installation
2. Fasten the conduit in place
3. Attach an elbow or tee joint at the bubble chamber location. The elbow or
tee joint should terminate with a 2-inch NPT female threaded connection.
4. Route the tubing through the conduit.
5. Cut the tubing at a 90° angle with a sharp knife (not scissors).
6. Detach the NPT adapter from the bubble chamber by unscrewing the three
hexagonal screws of the bubble chamber’s flange (see FIGURE 7-3).
10
