CS470/CS471 Compact Bubbler System
3.1 Shipping Kit and Accessories
3.1.1 Shipping Kit
The CS470/CS471 ships with:
• (1) Installation Kit (top DIN rail with fastening parts; screw terminal
blocks, pin jumpers)
• (2) #505 Screws
• (2) #6044 Grommets
• (1) #1113 Flat-bladed screwdriver
3.1.2 Accessories
The following are ordered as Common Accessories:
• CABLE4CBL-L 4-Conductor 22 AWG Cable — used to connect the
CS470/CS471 to a datalogger. Cable length is user-specified. This
cable can either terminate in stripped and tinned leads that connect
directly to the datalogger or a connector that mates with a prewired
enclosure.
• Polyethylene Tubing, 3/8 inch OD, 1/8 inch ID (pn 25503) — used as
the measuring tube and is submerged in the liquid. Specify length, in
feet, when ordering.
• OTT EPS-50 Bubble Chamber (pn 25502) — includes an NPT
adapter allows the bubble chamber to be connected to standard
plumbing materials.
4. Quickstart
Short Cut is an easy way to program your datalogger to measure the sensor and
assign datalogger wiring terminals. The following procedure shows using
Short Cut to program the CS470/CS471.

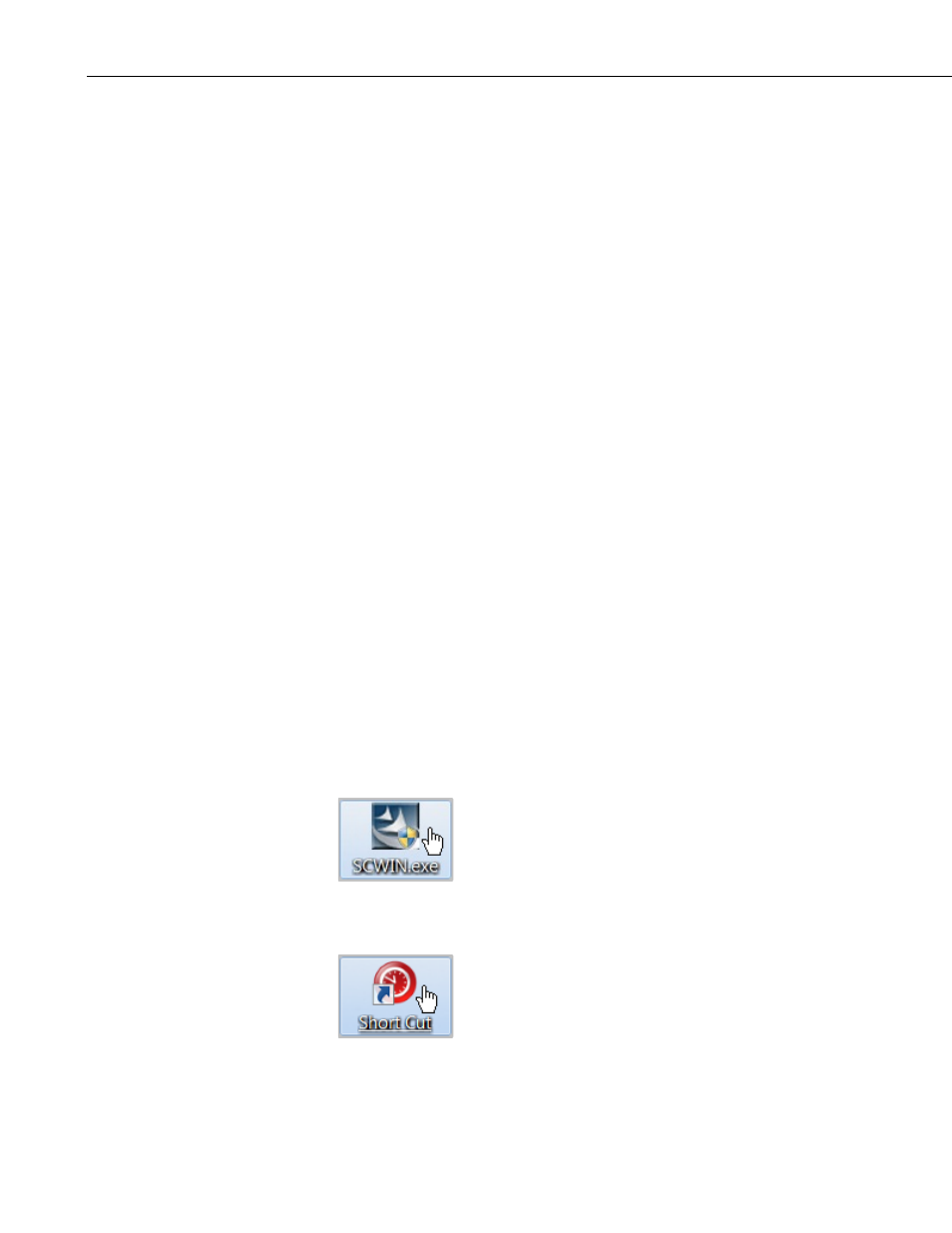

1. Install Short Cut by clicking on the install file icon. Get the install file
from either www.campbellsci.com , the ResourceDVD, or find it in
installations of LoggerNet, PC200W, PC400, or RTDAQ software.
2. The Short Cut installation should place a Short Cut icon on the desktop of
your computer. To open Short Cut, click on this icon.
