R.M. Young Wind Sentry
03101 can also be mounted at the top of a tripod using the CM216 (see
FIGURE 7-1).
Mount the CM200-series crossarm to the tripod or tower. Screw the mounting
pipe into the base of the 03101, and attach the sensor / mounting pipe to the
crossarm.
Route the sensor cable along the underside of the crossarm to the tower/tripod
mast, and to the instrument enclosure. Secure the sensor cable to the crossarm
and mast using cable ties.

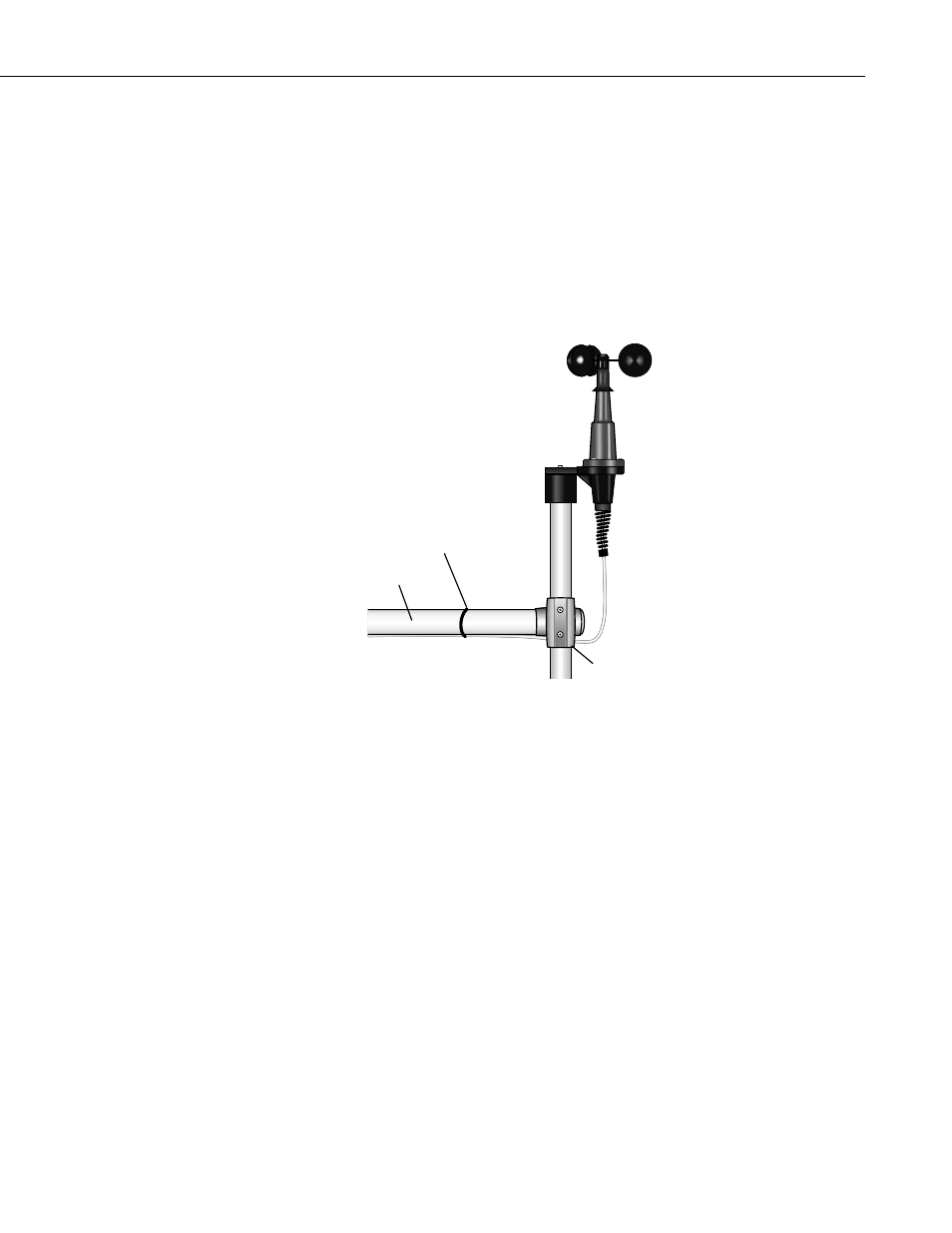

FIGURE 7-2. 03101 mounted to a crossarm via a 1049 NU-RAIL
Cable Tie
Crossarm
1049 NU-RAIL Fitting
7.2.3 03301 Vane
The 03301 vane is typically ordered as a replacement vane for the 03002 Wind
Sentry Set, and includes the bracket for attaching it to the 03002 small
crossarm. Part number 4913 pipe mount (not included with the sensor) can be
used to attach the 03301 to a CM200-series crossarm (with the CM220 or pn
1049), and the mounting pipe that ships with the sensor.
7.3 Wiring
Connections to Campbell Scientific dataloggers are given in TABLE 7-1 and
TABLE 7-2. When Short Cut is used to create the datalogger program, the
sensor should be wired to the channels shown on the wiring diagram created by
Short Cut.
