R.M. Young Wind Sentry
4.2 Step 2 — Use SCWin Short Cut to Program Datalogger
and Generate Wiring Diagram
The simplest method for programming the datalogger to measure the 03002 is
to use Campbell Scientific's SCWin Short Cut Program Generator.

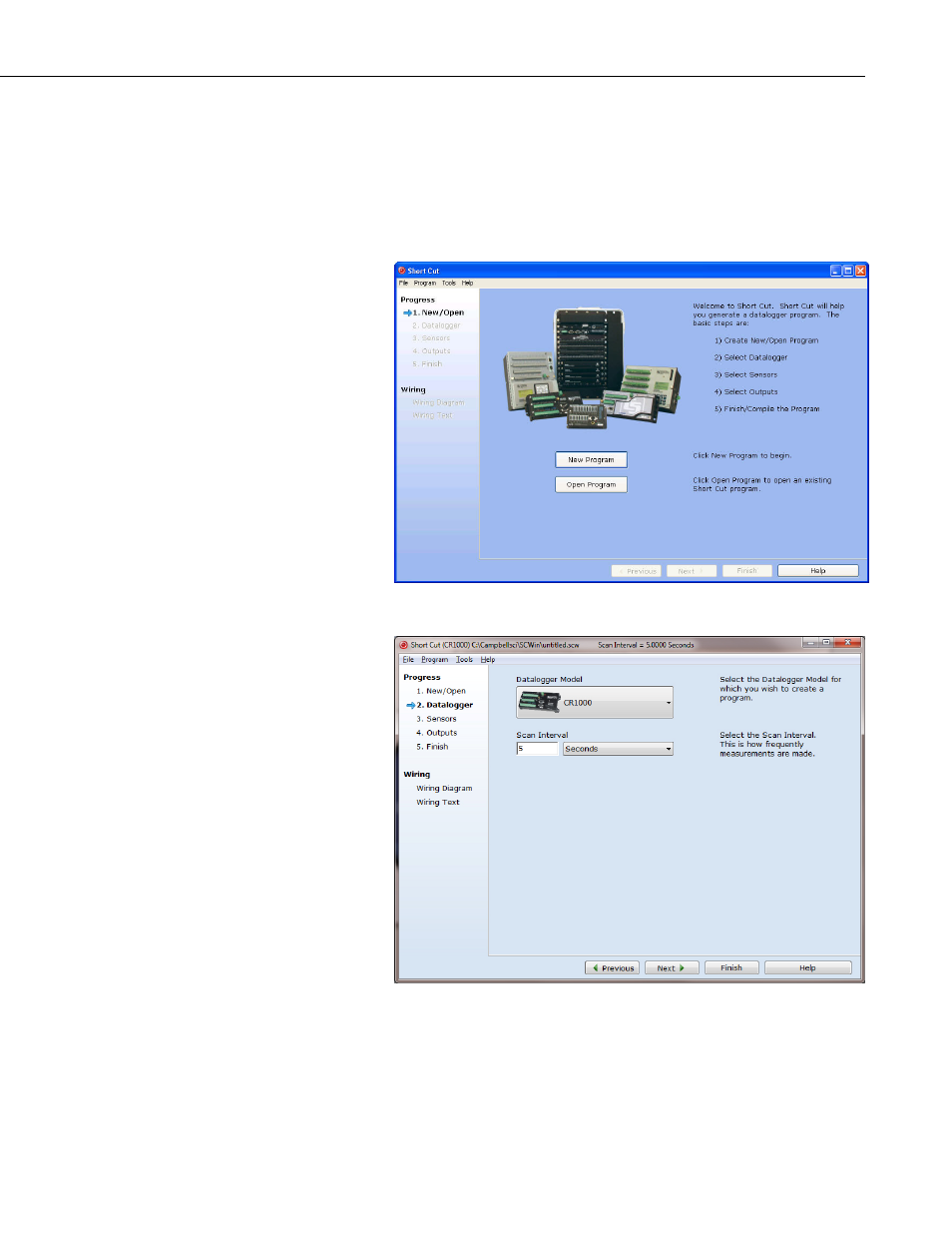

1. Open Short Cut and click on New Program.
2. Select the Datalogger and enter the Scan Interval and select Next.
5
