83
System all This page shows the current system log of the Broadband router.
It displays any event occurred after system start up.
At the bottom of the page, the system log can be cleared with
Clear button or it can be refreshed by Refresh button to get the
most updated situation. When the system is powered down, the
system log will disappear if not saved to a local file.
Wireless By select this options, you can check wireless log.
DoS
By select this options, you can check DoS log.
Enable Remote Log
If you want to send all log information to remote server, please
check this box to enable this function and fill the server IP
Address in the “Log Server IP Address” field.
Log Server IP Address
Input the server IP address where you want to save the logs.
Click <Apply Changes> at the bottom of the screen to save the above configurations.

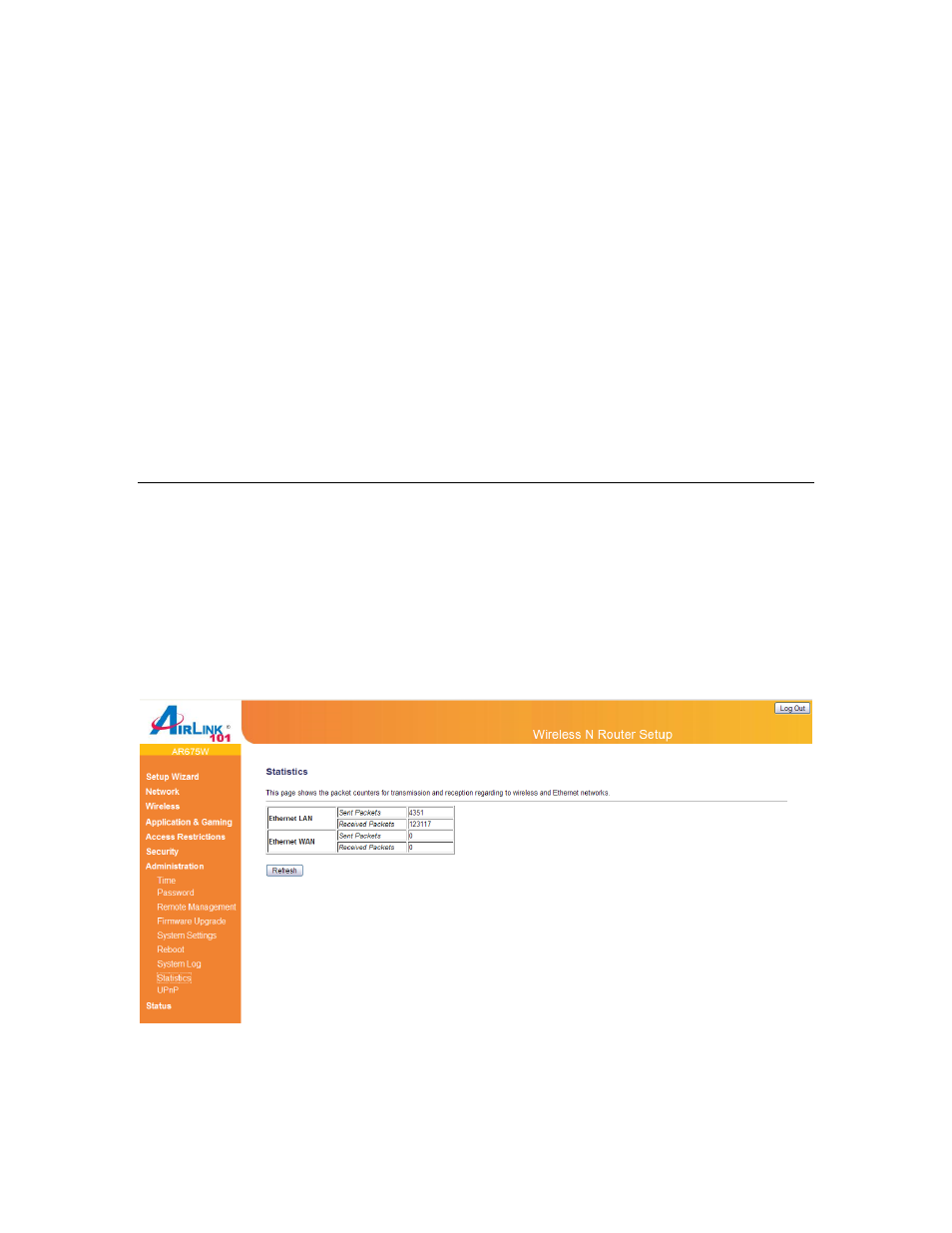

3.6.8 Statistics
View the statistics of packets sent and received on WAN, LAN and Wireless LAN.
