64
3.3 Application & Gaming

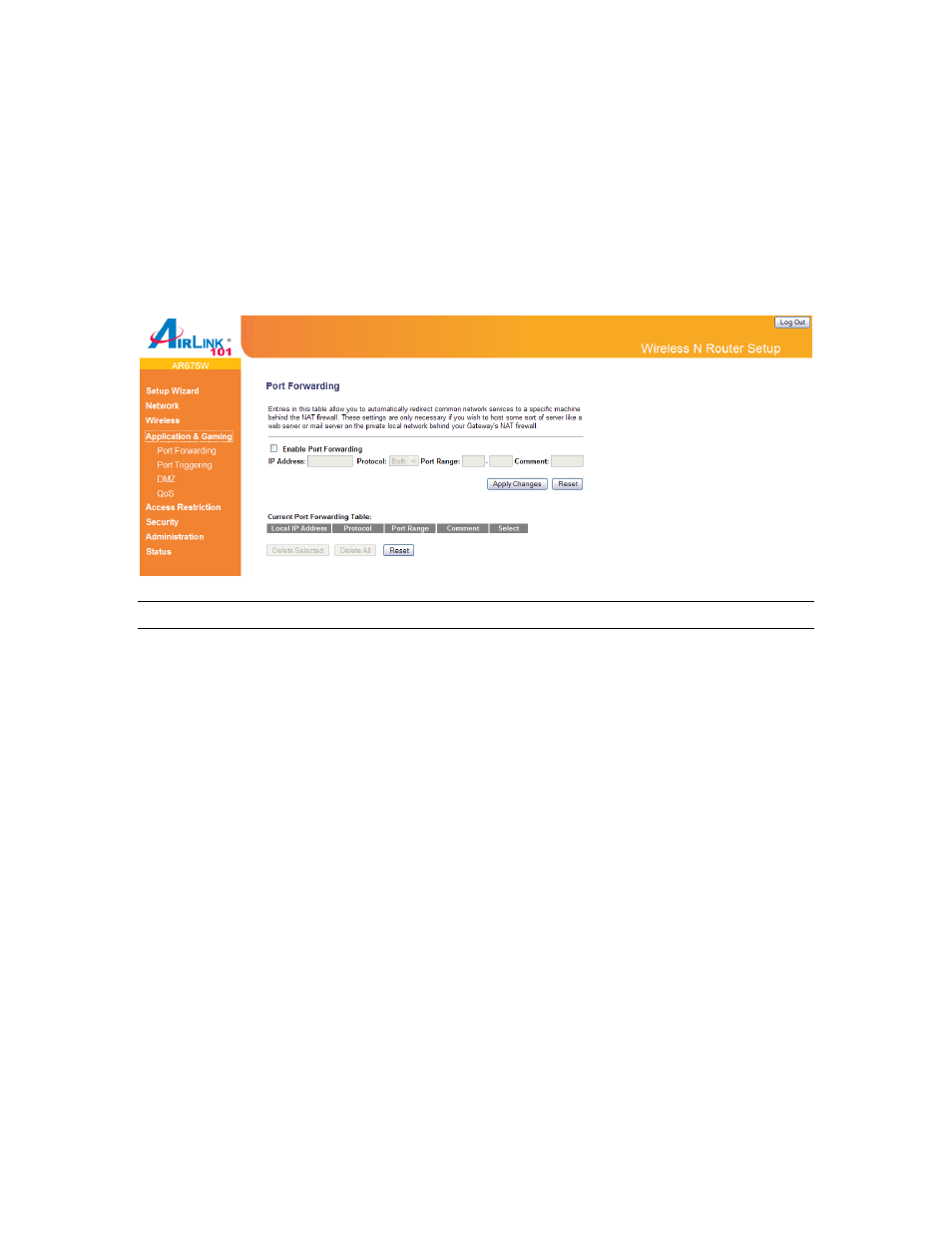

3.3.1 Port Forwarding
The Port Forwarding allows you to re-direct a particular range of service port numbers (from the
Internet/WAN Ports) to a particular LAN IP address. It helps you to host some servers behind the
router NAT firewall.
Parameter Description
Enable Port Forwarding
Enable Port Forwarding
IP Address
This is the private IP of the server behind the NAT
firewall. Note: You need to give your LAN PC clients a
fixed/static IP address for Port Forwarding to work
properly.
Protocol
This is the protocol type to be forwarded. You can
choose to forward “TCP” or “UDP” packets only or
select “both” to forward both “TCP” and “UDP” packets.
Port Range
The range of ports to be forward to the private IP.
Comment
The description of this setting.
Current Port Forwarding Table
From the table, you can check each Port forwarding
setting.
Delete Selected If you want to delete a setting, check the ‘select’ box of
the setting you want to delete, then click ‘Delete
Selected’ button. (You can select more than one setting).
