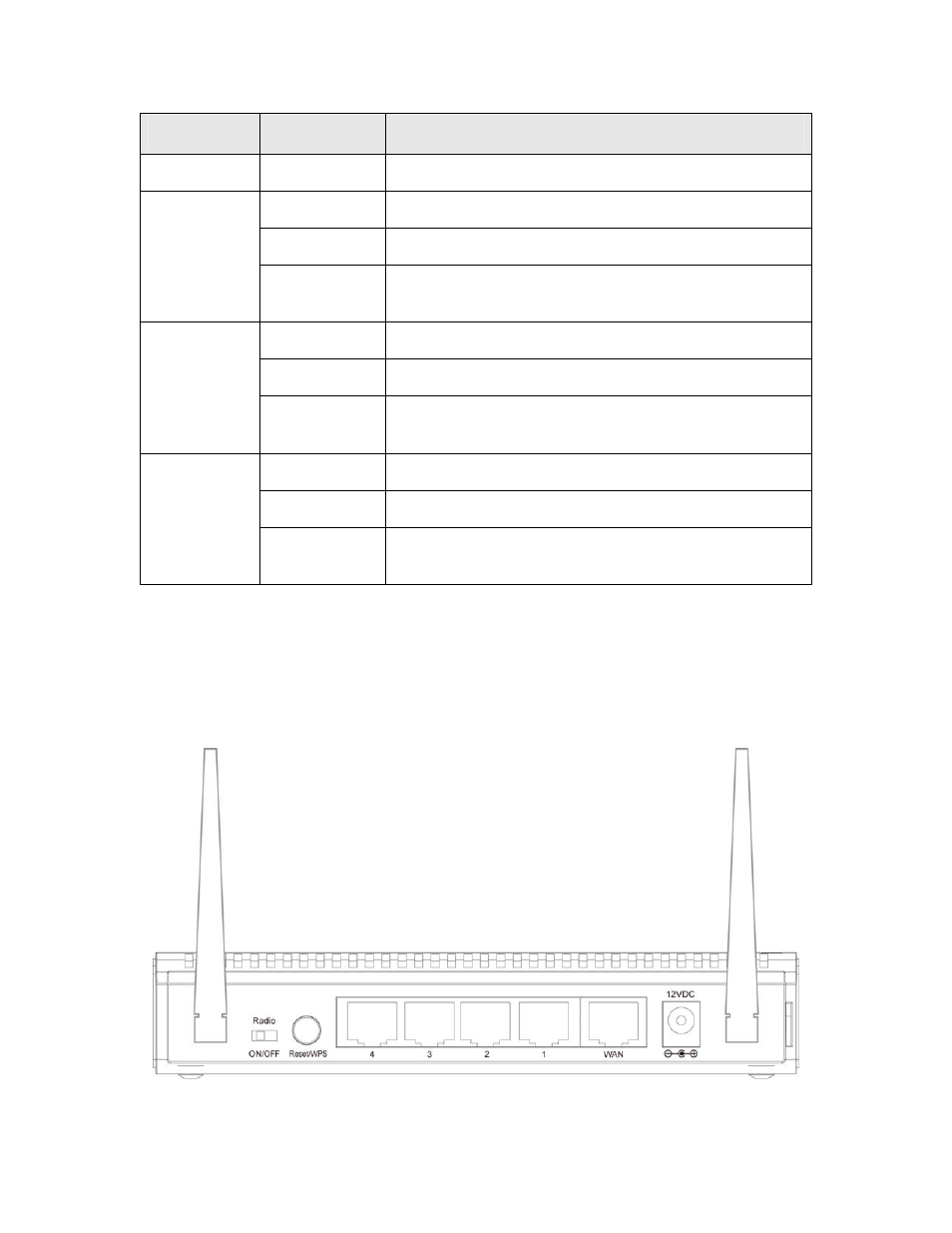

Back Panel
LED
Light Status
Description
POWER
Solid Green
Router is powered on.
Solid Green
WPS setup is in progress.
Off
Wireless network is switched off.
WLAN
Flashing
Green
Wireless network is ready and WPS setup is not in
progress.
Solid Green
WAN port is connected.
Off
WAN port is not connected.
WAN
LNK/ACT
Flashing
Green
WAN port is transferring or receiving data.
Solid Green
LAN port is connected.
Off
LAN port is not connected.
LAN 1-4
LNK/ACT
Flashing
Green
LAN port is transferring or receiving data.
Antenna A
Antenna B
