Operation Manual Flytec 6015-GPS
12
2.2.4 Menu Settings Variometer
Tip:
By use of the PC Software Flychart Extras -> Flight instrument Options, all instrument
characteristics can be set easily and comfortably.
By use of the feature tone simulation the adjusted values can be checked easily!
2.2.4.1 Digital-Vario
Integrator
Main Setup Menu Variometer Digital
Setting of average value time constant from 1 – 30 seconds for the digital Variometer display.
2.2.4.2 Threshold value last thermal
Main Setup Menu Variometer
Threshold for the display arrowhead of last thermal, the range can be set between 0,5 up to 3 m/s.
The thermal arrowhead in the compass rose points to the direction, where the integrated Vario was
the last time higher than this threshold value.
2.2.4.3 Basic filter (Turbulence filter)
Main Setup Menu Variometer Filter .
The response characteristics of Variometer display and of climb- or sink acoustics can be adapted
within a wide range in accordance to the pilot’s needs or the weather conditions.
In order to simplify the settings, Flytec has defined 4 basic- resp. turbulence filters.
Variometer - sensitivity / response characteristics
Filter No.
0 weak filtering for very calm air in Winter
1 Default normal filtering for enjoyment thermal with light turbulence
2 high filtering thermal with turbulence
3 very high turbulence filtering for very rough and strong thermal
2.2.5 Variometer - Acoustic settings
The climb tone is a frequency modulated beep tone whose pitch and beep tone sequence rises
rhythmically at increasing climb rate. The pulse/pause ratio is 1:1.
Following settings are possible under Main Setup Menu Variometer Climb Acoustic and
Variometer Sink Acoustic:
Climb Acoustic settings:
Climb threshold:
= climb acoustic threshold
Basic frequency = basic tone pitch Vario climb
Frequency change = increase of tone pitch
(frequency modification per m/s)
Pitch modification = increase of beep interval per m/s
Pitch mode = linear or exponential
increase of climb acoustic
Pre-Thermal Threshold: = trigger point of Pre-Therm.acoustic

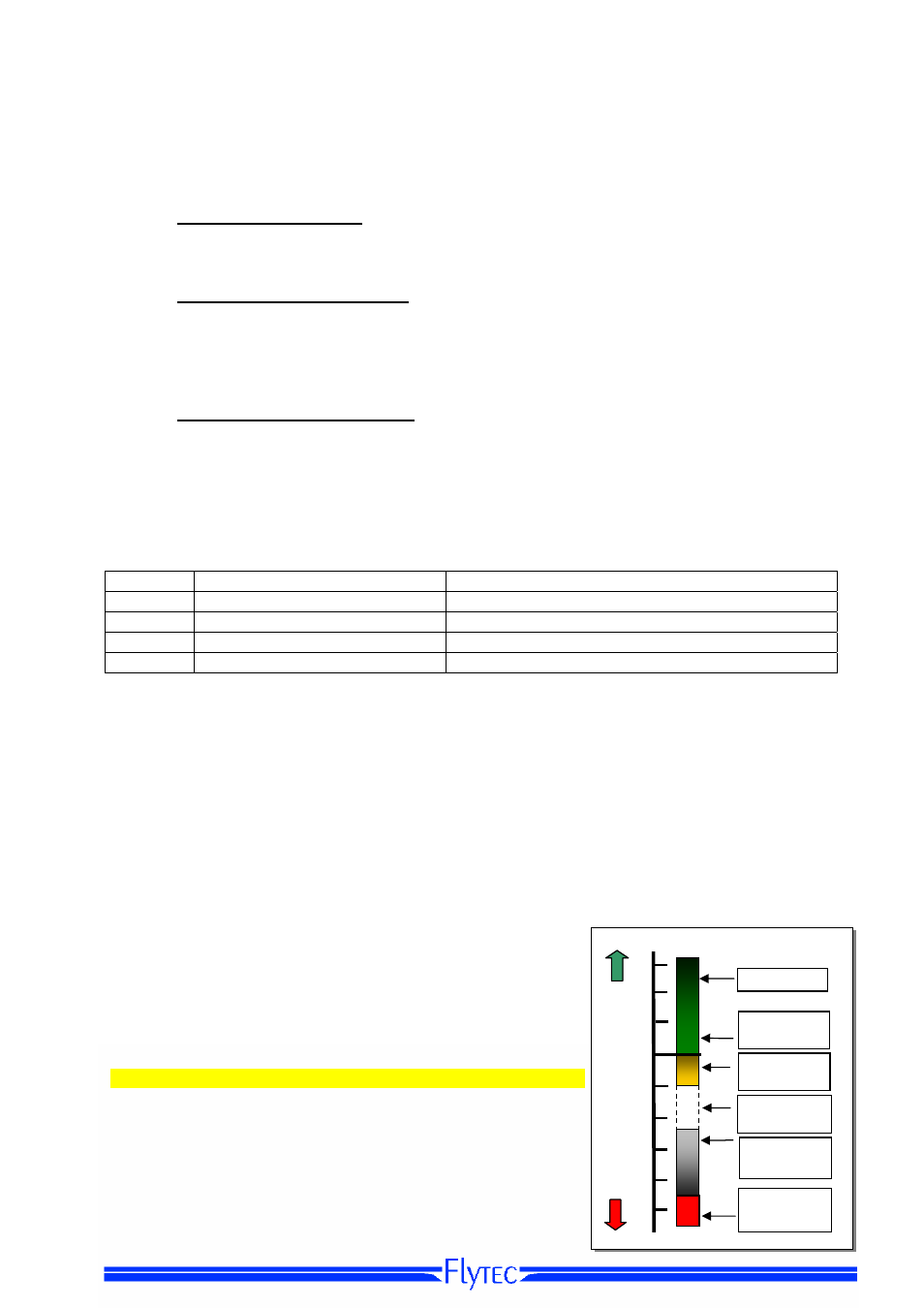

Soundloss
range
Pre Thermal
threshold
Sinktone
threshold
Climb tone
Climb accou.
threshokd
Sink
tonealarm
Sinken
Steigen
0 m/s
Sink Acoustic settings:
Sink threshold:
=Sink tone threshold
Basic frequency =basic tone pitch Vario sink
Sink Alarm =Sink alarm threshold
