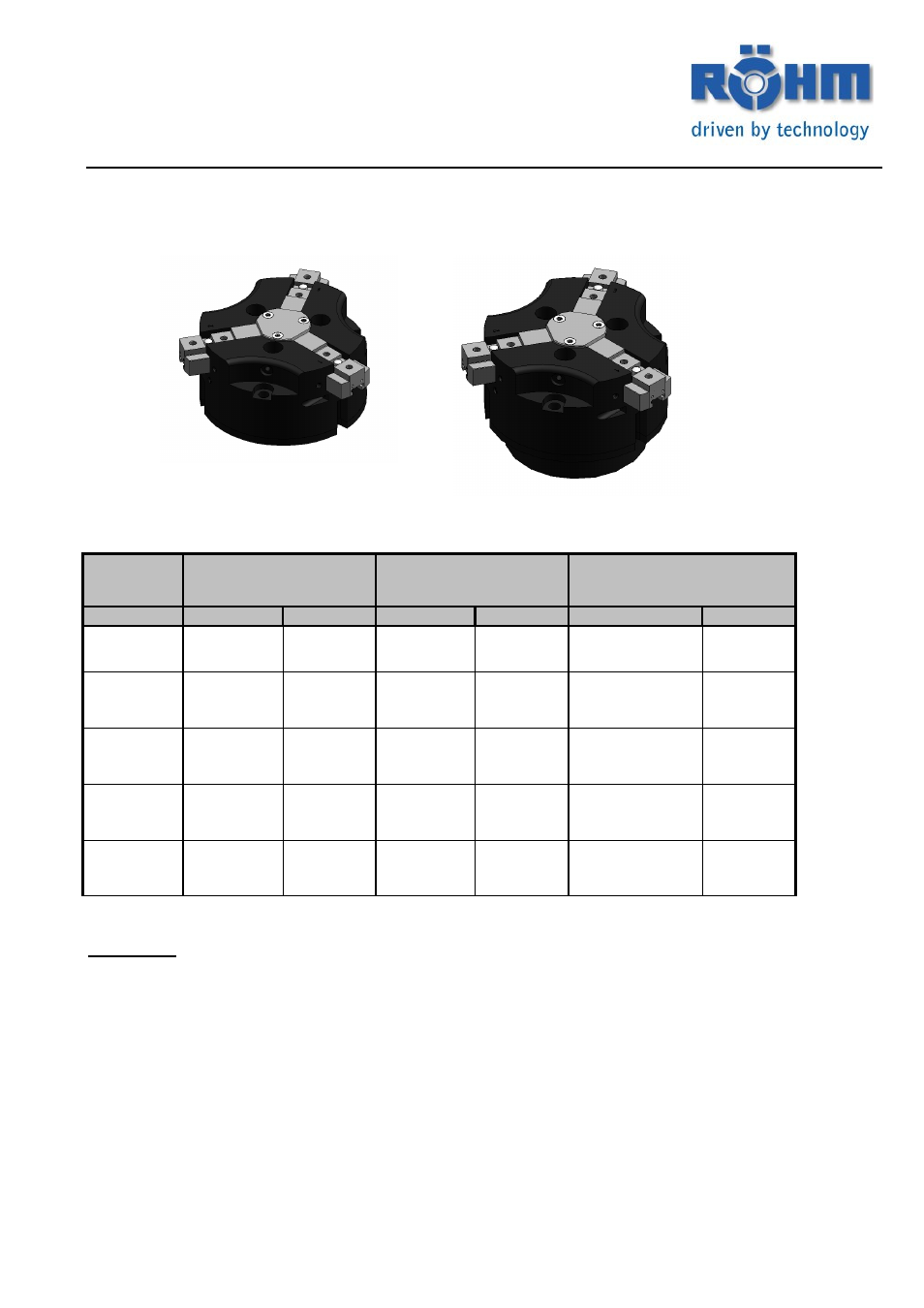

Overview: RZP; RZP-A
3-jaw centric grippers
ID 1104572 Operating Manual RZP; RZP-A
Röhm GmbH, Dillingen Works Röhmstr. 6, 89407 Dillingen/Donau, GERMANY, Tel. (49)9071/508-0
Page 5 of 39
Overview:
RZP-A
Designation
Total stroke
[mm]
Max. possible gripping
force
[N]
Recommended workpiece
weight
[kg]
Type
1
2
1
2
1
2
RPP-A 64
12
6
700
1350
3,5
6,5
RPP-A 80
16
8
1000
2500
5
12
RPP-A 100
20
10
2000
4000
10
20
RPP-A 125
26
12
3300
6500
16
32
RPP-A 160
32
16
6000
12000
30
60
RZP-A type:
1
Large jaw stroke, normal gripping force
2
Normal jaw stroke, high gripping force
GA
Gripping force lock for outer gripping with integrated springs for increased gripping forces
GI Gripping force lock for inner gripping with integrated springs for increased gripping forces
