Chapter 4. Configuration Overview and Examples
4-4
ATLAS Router User Manual
61200263L1-1.2A
Step 4: Connect packet endpoint to the appropriate physical inter-
face.
See Figure 4-6.

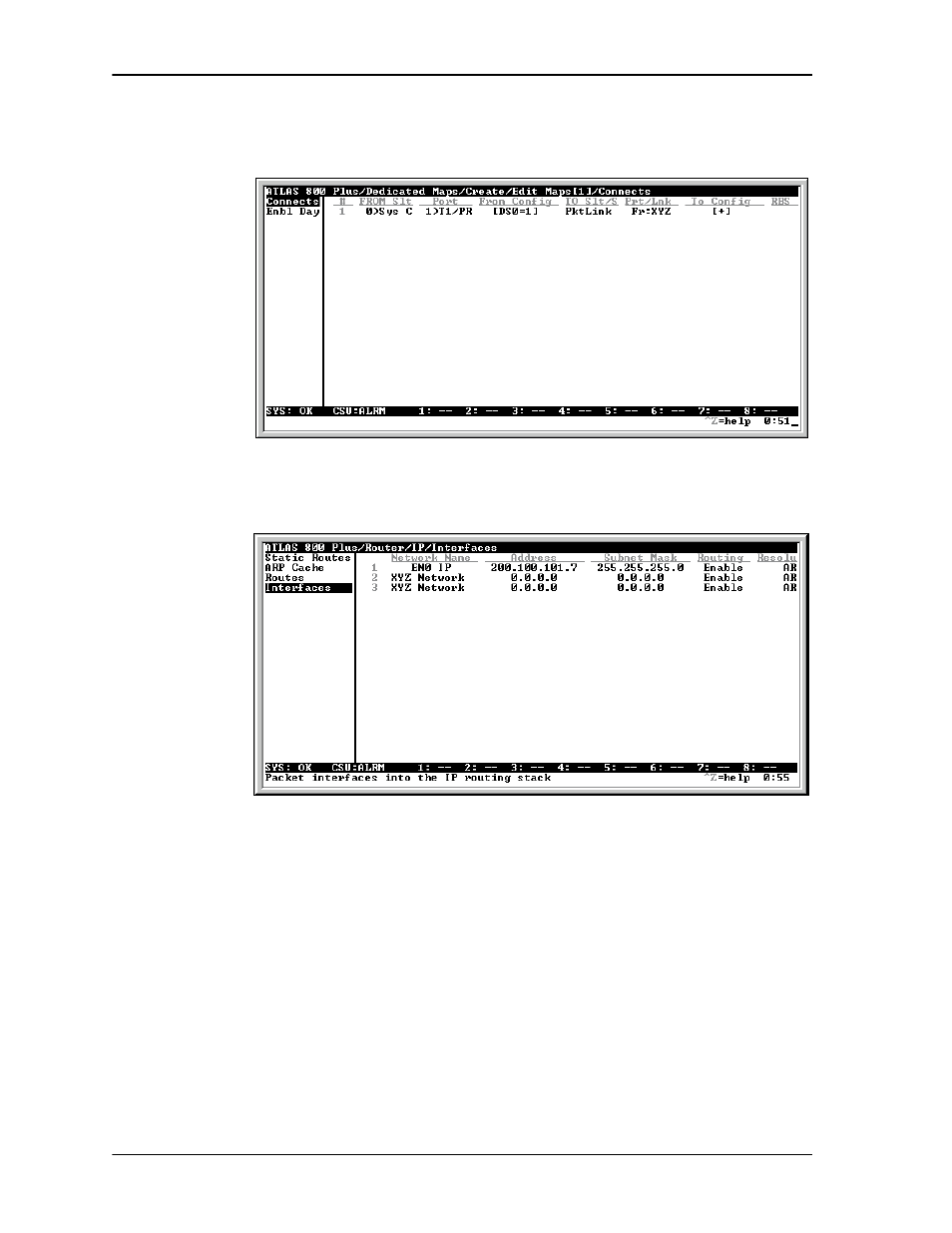

Figure 4-6. Panel for Connecting Endpoints to Physical Interface
Step 5: Enable routing on the two interfaces.
See Figure 4-7.
Figure 4-7. Panel for Enabling Routing
