5
2.2 USB Module

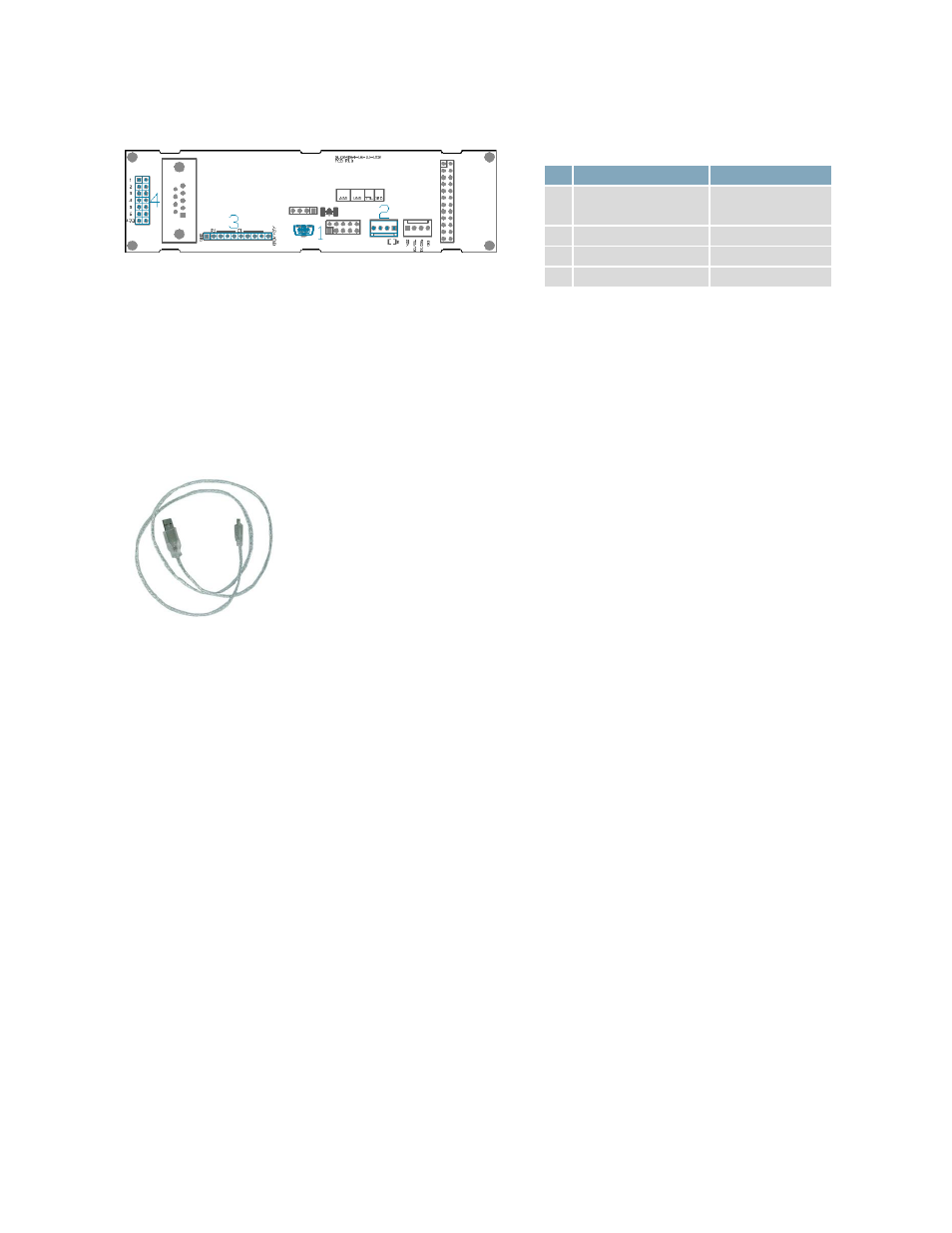

Figure 5: USB Connections
Table 2: Standard Headers
# Header Mate
1 Mini USB
EXTMUSB3FT/
INTMUSB3FT
2 Alternate Power PCS
3 Keypad KPP4x4
4 GPO None Offered
The GLK24064-16-1U-USB offers a single USB protocol for easy connection to a host computer. The
simple and widely available protocol can be accessed using the on board mini B style USB connector as
outlined in the USB Connections section.
Recommended Parts
Figure 6: Mini USB Cable
(EXTMUSB3FT)
The External Mini USB cable is recommended for the GLK24064-16-1U-USB
display. It will connect to the miniB style header on the unit and provide a
connection to a regular A style USB connector, commonly found on a PC.
