PAGE 20
GPRS / GSM MODEM Configuration
MAN4005-04-EN
4
Data Transfer using Communication Blocks
For exchanging data over GSM / GPRS, communications block are required to be configured as follows:
4.1

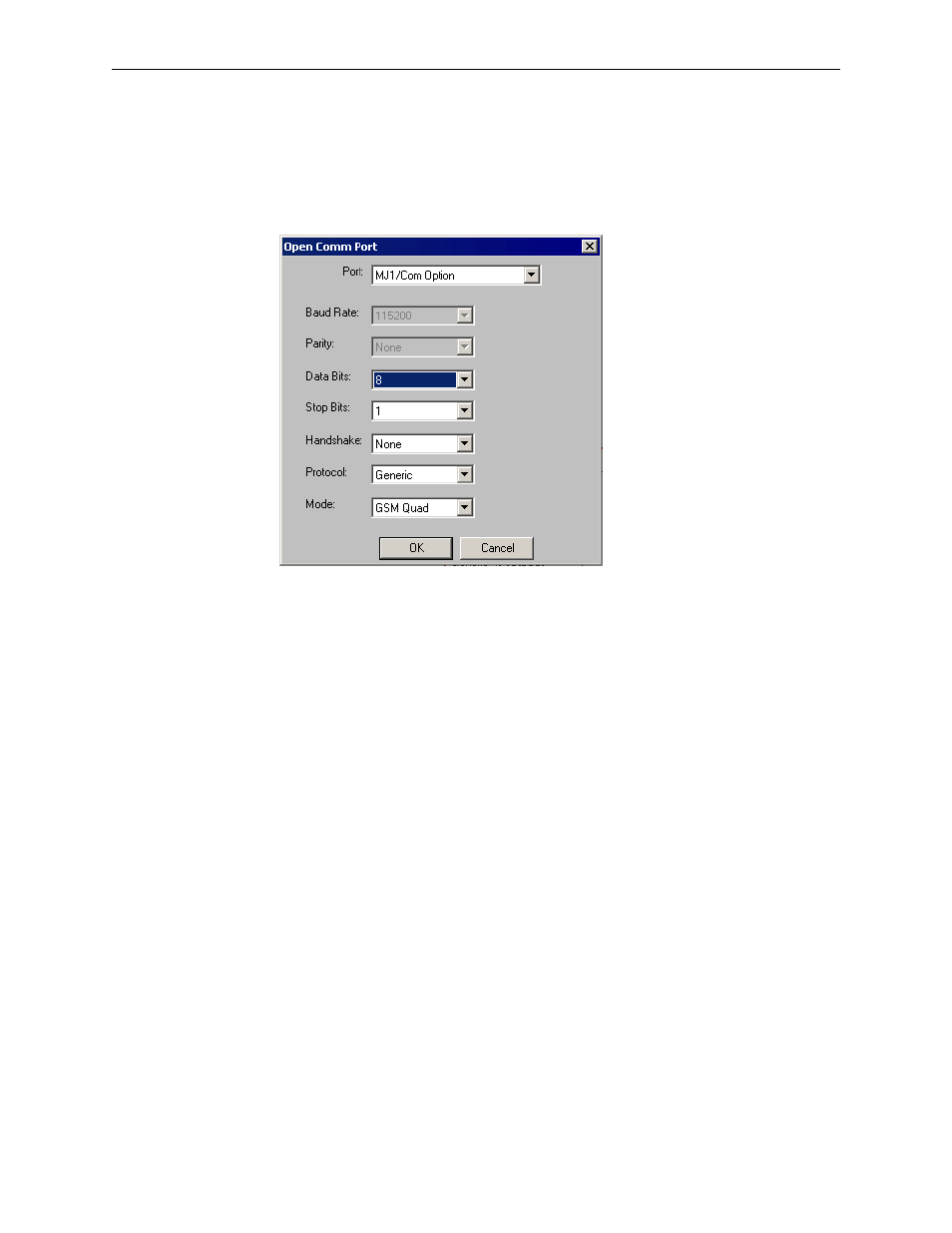

Open Port
When using the internal GSM modem, Mode should be specified GSM Quad. The Protocol can be selected as CsCAN, Generic or
Modbus. For Modbus, Slave or Master block should be used.
Page 20 of 62 ECN # 956
