9

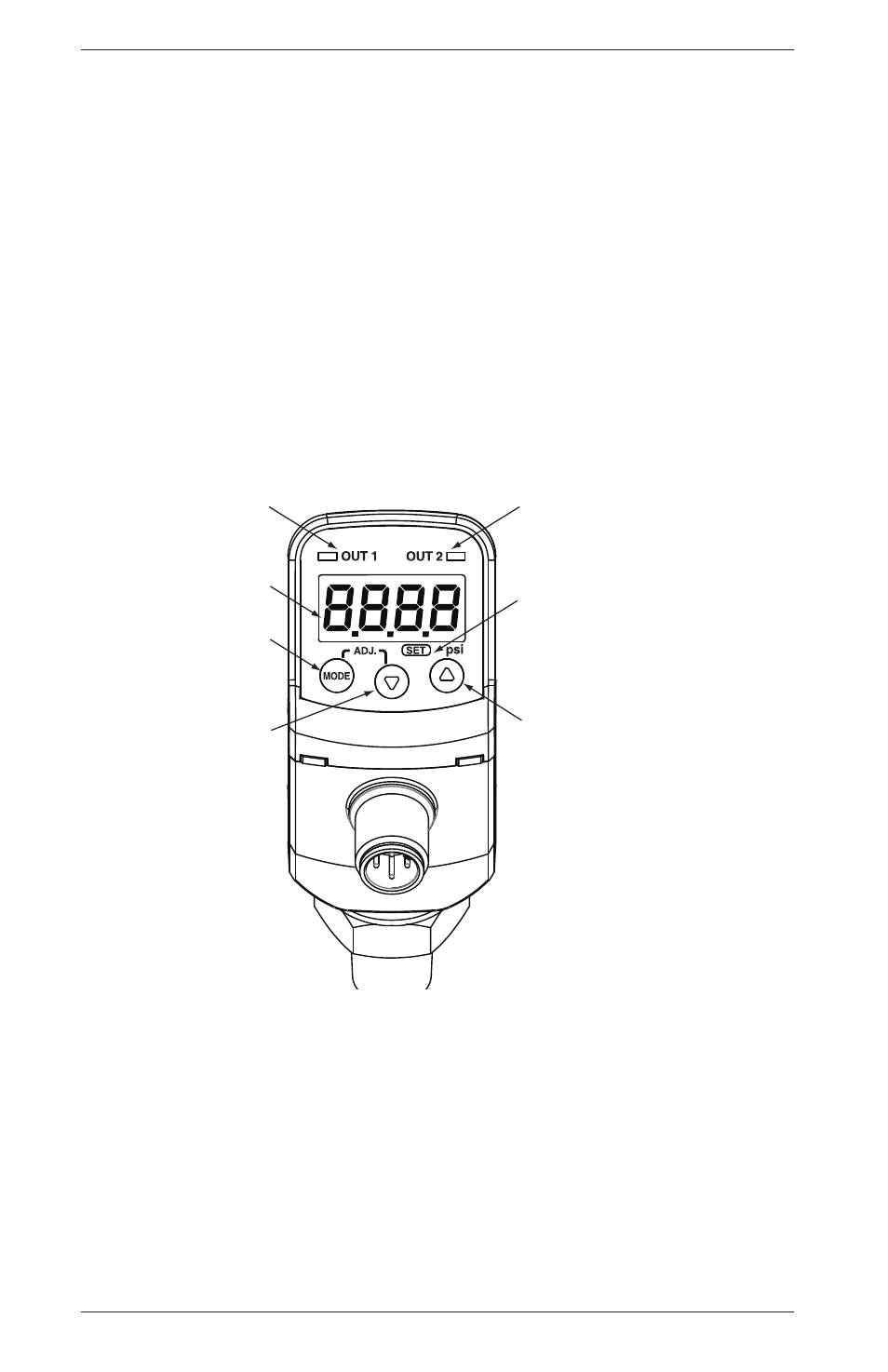

ᕥ Collector/switch 1
LED operation
indicator (OUT 2)
ᕡ 4 Digit, 8mm
LED display
ᕤ UP key ᕣ DOWN key
ᕢ MODE key
ᕦ Setting mode
LED operation
indicator (SET)
ᕥ Collector/switch 1
LED operation indicator
(OUT 1)
5. NOISE PREVENTION
Power Supply
The pressure display can fluctuate and provide incorrect output if noise is present in the
power supply/wires. Care should be taken to keep the GC35 power supply wires from high
voltage lines and use a power line with a high noise rejection ratio.
6. STORAGE
Store in a location in compliance with the environmental rating of the unit and within –20 to
+70°C (–4 to 158°F). Avoid direct exposure of the display to Sunlight.
7. MAINTENANCE
Although this is a solid state device, it is recommended that a visual inspection be conducted
twice a year along with regular zero adjustment if necessary.
8. MENU NAVIGATION
Functions
Please Note: Do not use sharp objects to press the keys as this can puncture and damage
the panel.
