Princeton Tec FRED TACTICAL MPLS - Manual

FRED TM MPLS
Operating and Maintenance
Instructions
Notice d’utilisation et d’entretien
Bedienungsanleitung

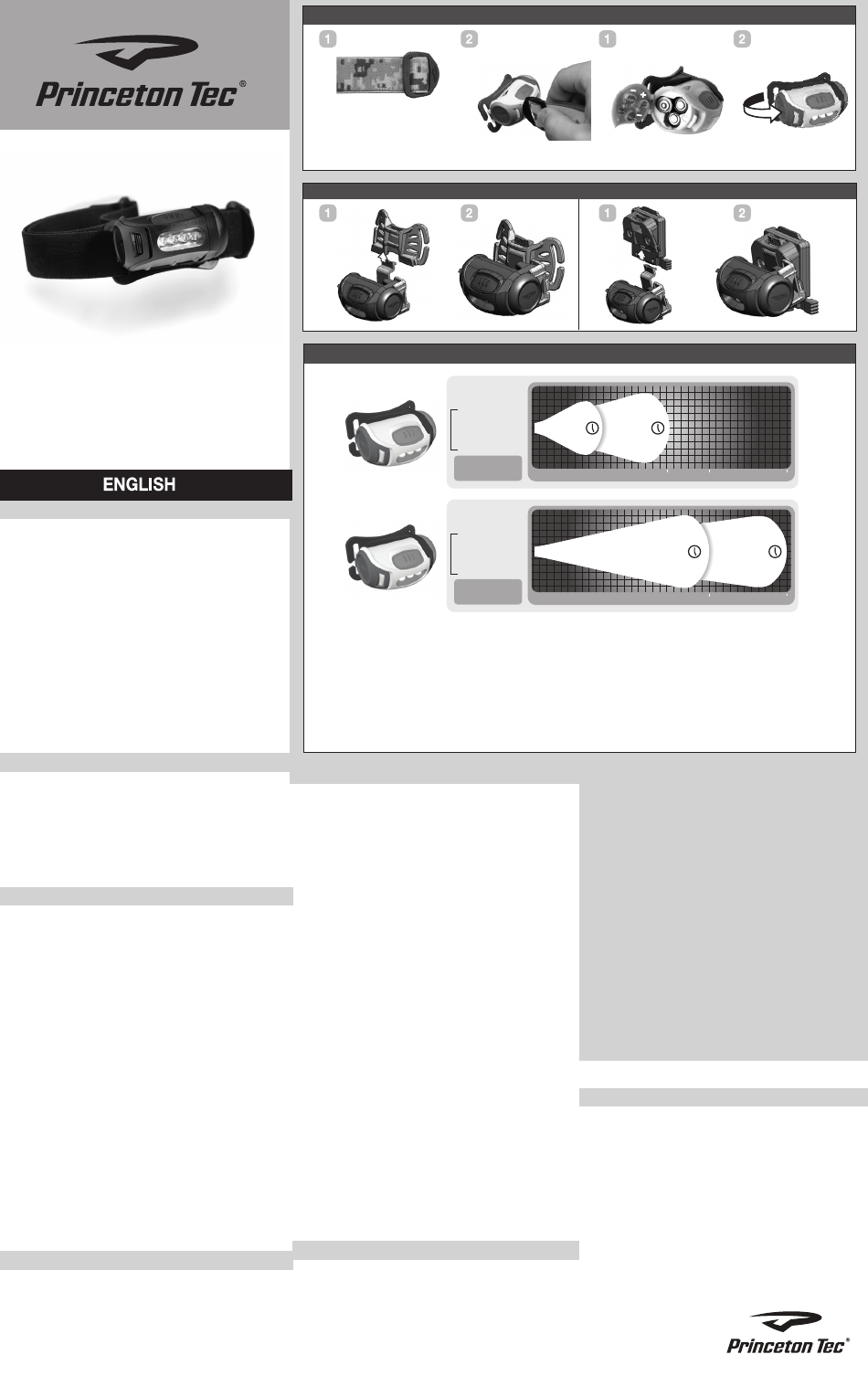

Battery Replacement Remplacement des piles Einlegen der Batterien
Switch Operation Opération de commutation Betriebsartenschalter
* Princeton Tec calculates total burn time as the time it takes for the light source to produce a
minimum of 0.25 lux at 2 meters. 0.25 lux is about the equivalent of a full moon on a clear night.
* Princeton Tec berechnet die Gesamtbrenndauer bezogen auf eine von der Stirnlampe erzeugte
minimale Beleuchtungsstärke von 0,25 Lux in 2 Meter Abstand. 0,25 Lux entsprechen in etwa
der Beleuchtungsstärke des Vollmonds in einer klaren Nacht.
* Princeton Tec définit la durée totale d’éclairage comme le temps nécessaire à la source
lumineuse pour produire un minimum de 0,25 lux à 2 mètres. 0,25 lux équivaut à peu près à la
luminosité d’une pleine lune dans un ciel nocturne dégagé.
Battery Installation – See Battery Installation Diagram
• 3 AAA
• Alkaline (LR03)
• Rechargeable NiCad or NiMH
Princeton Tec cares about the environment and
recommends recycling batteries. For more information
about battery recycling, please go to:
www.batteryrecycling.com
To install the batteries, unlatch the battery door. Open the
Remix case by popping the door latch over the catch and
rotate the door open.
Install three AAA batteries according to the polarity
markings on the inside of the cabinet. Observe proper
battery polarity when installing the batteries. Improper
installation of the batteries will damage the light and void
the warranty.
Rotate the door to the closed position, squeeze the body
between your forefingers and thumb to snap the door
latch over the catch.
WARNING
• Never mix fresh and used batteries.
• Never mix different battery brands or
chemistry types.
• Always remove drained batteries immediately.
• Remove batteries during long periods of storage.
NOTE: Rechargeable NiCad or NiMH batteries may
result in reduced brightness due to lower nominal
voltage.
Switch Operation – See Switch Operation diagram
The Fred has two light sources to choose from, one red
Ultrabright LED or 3 white Ultrabright LEDs. Each light
source has two modes (High and Low).
• To switch between the Red LED and the 3 white LEDs
-Press and hold the button until the light source
changes. Release the button when the appropriate
source is lit. The light will remain on this LED source
(allowing you to cycle though the modes) until you
decide to change it.
• Modes (High and Low) are selected by pressing and
releasing the button within 1.5 seconds of the
previous button press, if more than two seconds has
passed since the previous button press the next
press will turn the light off.
• There are two ways to turn the Fred off. You can cycle
through the modes until you reach off, or if the light has
been on for more than two seconds the next button
press will turn the light off.
• Note about changing batteries for lights with Red or
Green 5mm Ultrabright: To ensure the Ultrabright LEDs
turn on first, remove the old batteries, press and hold
the button down for three seconds to discharge the
capacitor on the circuit. Install the new batteries and
close the battery door. The light will now default to the
Ultrabright turning on first.
**The times listed on the rear of the package assume you
have start with fresh batteries and use only one mode.
NVG Mounting System
To attach the MPLS Headlamp to the NVG Shroud:
1. Slide the bracket arm into the NVG Shroud adapter
plate, making sure the pull tab is above the lip of the
adapter plate and that the male grooves on the bottom
of the bracket arm are aligned inside the female
grooves on the bottom of the adapter plate.
2. Push the bracket arm securely into place, ensuring
that the pull tab audibly clicks over the lip of the NVG
Shroud adapter plate.
3. Your MPLS Headlamp should now be secured in the
NVG Shroud. You can rotate the headlamp to focus your
light source accordingly.
To remove the MPLS headlamp from the NVG Shroud:
1. Remove the NVG Mount from your helmet.
2. Push up slightly on the bottom of the light housing.
3. While pushing upward, use the tool on the provided
headstrap to press the tab of the arm bracket towards the
headlamp housing, so that it disengages from the NVG
Shroud adapter plate.
4. Slide the headlamp unit out of the NVG Shroud
adapter plate.
To attach the MPLS Headlamp to the Butterfly Mount:
1. Slide the bracket arm into the Butterfly Mount, making
sure the pull tab is above the lip of the mount and that the
male grooves on the bottom of the bracket arm are
aligned inside the female grooves on the bottom of the
mount.
2. Push the bracket arm securely into place, ensuring that
the pull tab audibly clicks over the lip of the Butterfly
Mount.
3. Your MPLS Headlamp should now be secured in the
Butterfly Mount. The mount can be attached to the
provided headstrap, MOLLE straps, or any 1” webbing.
You can rotate the headlamp to focus your light source
accordingly.
To remove the MPLS headlamp from the Butterfly Mount:
1. Push up slightly on the bottom of the light housing.
2. While pushing upward, use the tool on the provided
headstrap to press the tab of the arm bracket towards the
headlamp housing, so that it disengages from the
Butterfly Mount.
3. Slide the headlamp unit out of the Butterfly Mount.
Troubleshooting
If the Fred fails to light:
• Check the batteries for proper installation.
• Replace batteries if proper installation is confirmed.
• Check the light for water contamination on the circuit
board. The light will resume normal operation once the
water is shaken or blown out and the light is left open until
completely dry. If the light has been contaminated with
salt water, flush the unit with fresh water and dry as
described above.
USA– International 5-Year Warranty
WARRANTY – Princeton Tec warrants this product to be free
from defects in workmanship and materials under normal
use for as long as you own this product. This warranty
covers all of the component parts of the product except
batteries. This warranty does not cover deterioration due to
normal wear or damage due to misuse, alteration,
negligence, accidents, or unauthorized repair. Princeton Tec
will repair or replace parts which are defective in
workmanship or materials.
Your authorized Princeton Tec Dealer and Princeton Tec are
the only facilities authorized to repair the product. After (3)
unsuccessful attempts (within the warranty period) to repair
the product, you have the right to elect replacement of the
product or a refund of the purchase price less allowance for
use of the product. NO INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARE INCLUDED IN THIS WARRANTY. (Some
states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitations or
exclusions may not apply to you.) This warranty gives you
specific legal rights, and you may also have other rights
which vary from state to state.
Princeton Tec reserves the right to change product
specifications without notice.
Return Policy
If your light fails to operate, follow these simple steps:
1) Check batteries. Replace if necessary.
2) Contact Princeton Tec customer service at 800-257-9080
to request an RMA number to send your light in for repair or
replacement. No warranty repairs will be accepted without
an RMA number.
3) Return the light without batteries to: Princeton Tec, 5198
Rt. 130, Bordentown, NJ 08505. Postage due and freight
collect items will not be accepted.
Princeton Tec
PO Box 8057,
Trenton, NJ 08650
Phone: 609-298-9331
Fax: 609-298-9601
www.princetontec.com
© 2013 Princeton Tec
press 1x = Low
press 2x = High
DISTANCE (Meters) 20 38
MED 74H LOW 145H
3 Ultrabright
LEDs
press 1x = Low
press 2x = High
DISTANCE (Meters) 18 10 35
MED 100H LOW 180H
1 RED
Ultrabright LED
to switch between light
sources, press and hold
button (1-2 seconds)
NVG Mounting System Système de montage NVG NVG-Befestigungssystem
Use tool on headstrap to open
battery compartment
Utilisez l'outil attaché à la sangle de la
frontale pour ouvrir le compartiment des piles.
Verwenden Sie zum Öffnen des Batteriefachs
das am Kopfband befestigte Werkzeug.
