Spray Controls (Pro)

Power Painter Pro

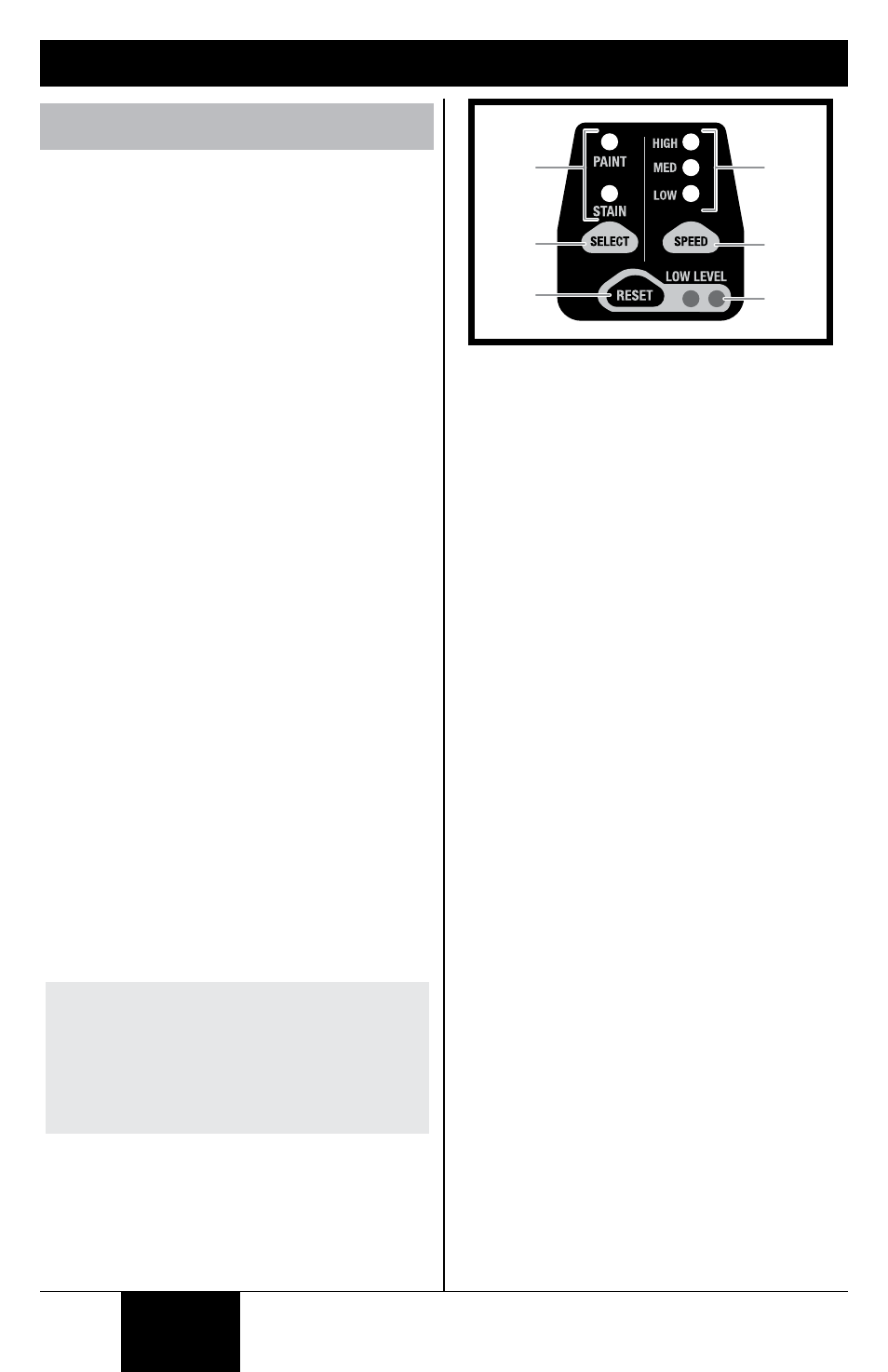

Electronic Material Selector:

The spray pattern is controlled by the Electronic

Material Selector (a) and by the thickness of the

material.
If you are spraying thicker materials such as latex

paint, press the ‘Select’ button (b) until the indicator

light indicates ‘paint’.
If you are spraying thinner materials such as thinner

stains, press the ‘Select’ button (b) until the indicator

light indicates ‘STAIN’.

Electronic Speed Control:

The speed control is displayed by the three green

lights on the upper right side of the control panel (c).
The Power Painter Pro offers three speed levels

(LOW/MED/HIgH). The lower the speed level,

the closer you can get to your work and the less

overspray you will have.
Lower speed levels give you greater control but

require more time to cover an area. Depending

upon the thickness of the material or conditions, the

settings may need to be adjusted.
To adjust the speed setting, press the ‘SPEED’ button

(d) until your desired speed is reached. If the sprayer

is unplugged, the current speed and electronic

material selector setting will be “stored” and

remembered during restart.

Low Cup Level Indicator

• Applicable only when spraying in cup mode,

cup filled to MAx FILL.

• The low cup level indicator is displayed by

the two red lights on the bottom right of the

control panel (e).

When your cup is running out of material, the low

cup level indicators will begin blinking. You should

quit spraying and refill the container (see Cup Mode

Setup instructions, page 6). avoid running the

cup dry. an empty cup will allow air to become

sucked into the sprayer, which leads to globbing

and spitting.

note: Before you resume spraying, press and

hold the ‘Reset’ button (f) and the indicators

will reset and no longer blink. always reset the

indicators when the cup is full and you are ready

to resume spraying. Failure to reset the low cup

level indicators will result in the indicators not

functioning properly. The low cup level lights will

reset whenever the power cord is unplugged.
