Section 2. Installation
15

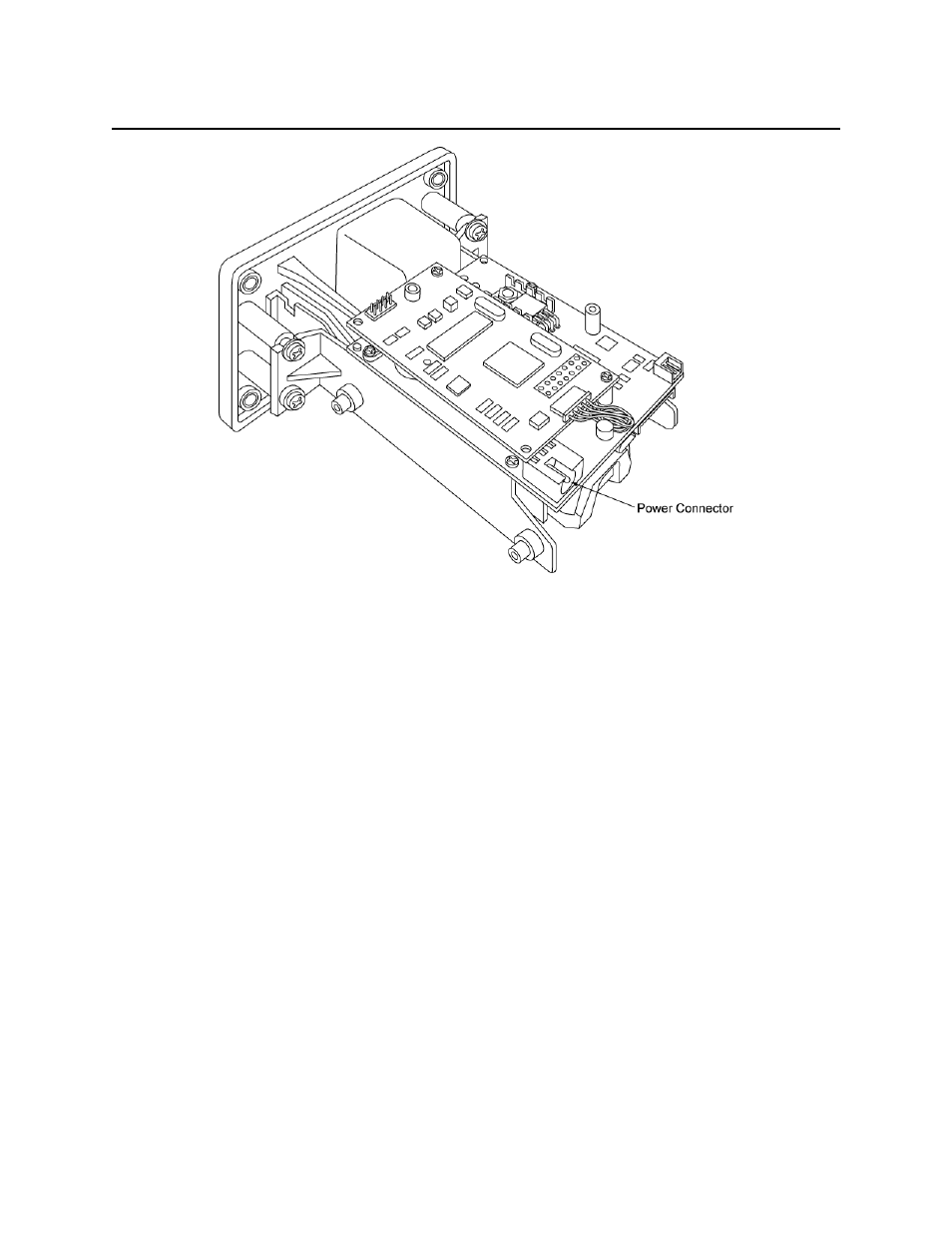

Figure 2-6. Contactless Module Installed
Antenna Installation
The antenna is a separate item that can be installed outside of the IntelliStripe 65. The antenna
module and the interface cable are supplied separately from the reader. Two types of cables are
offered:
• Flat Ribbon Cable – this cable is only 7.5” (19cm) but all 4 of the LEDs are supported
(see Figure 2-7)
• Coax Cable – this 12” (30cm) cable offers a slightly greater range of antenna placement
but it does not operate the LEDs on the antenna module (see Figure 2-8)
