SECTION 2. INSTALLATION
This section describes the cable connection, the Windows Plug and Play Setup, and the physical
mounting of the unit.
USB CONNECTION
Connect the USB cable to a USB port on the host. The Reader, LED Indicator, and pin numbers for the
4-pin connector are shown in Figure 2-1.

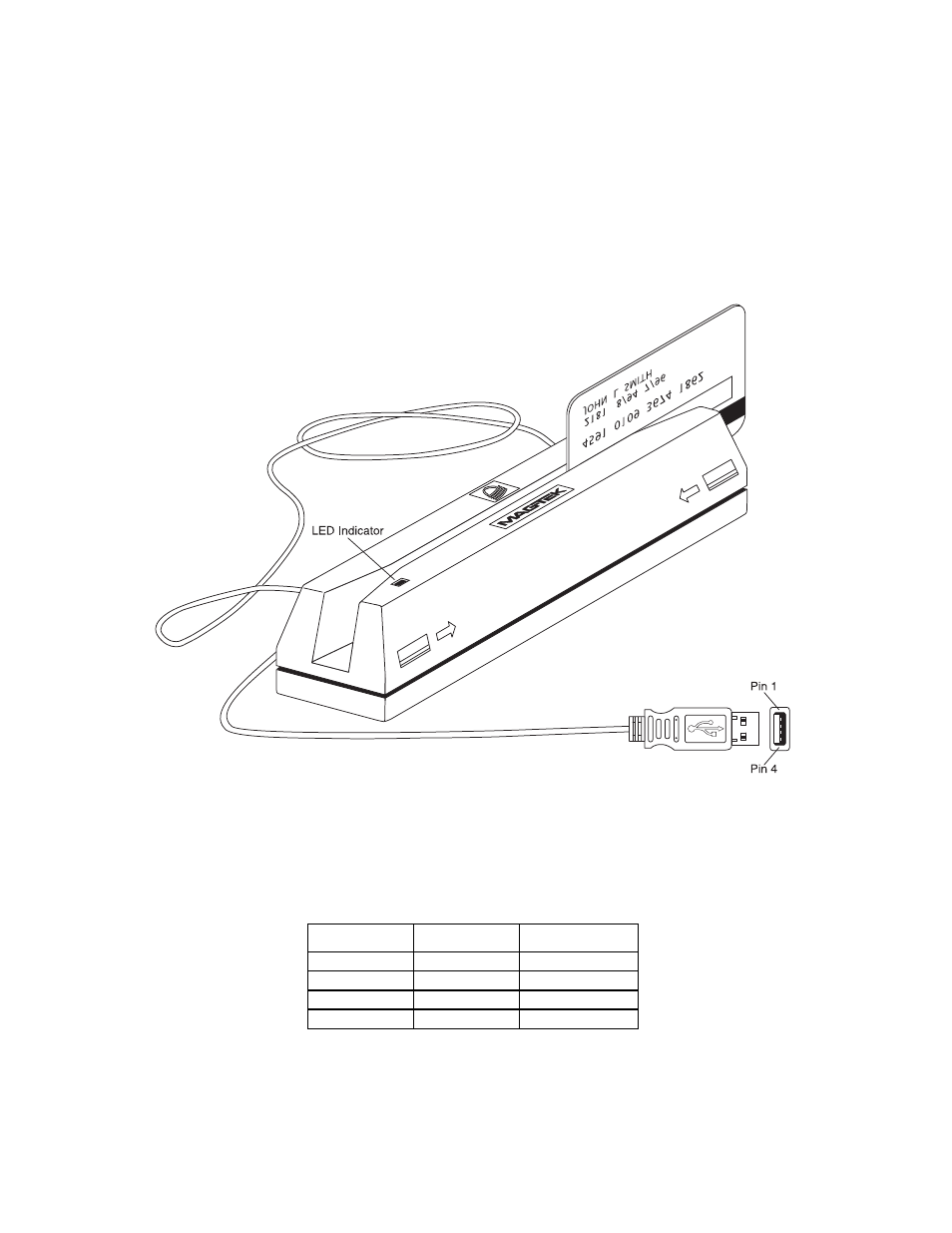

Figure 2-1. Reader Cable and Connector
Pin numbers and signal descriptions for the cable shown in the illustration are listed in Table 2-1.
Table 2-1. 4-Pin Connector
Pin Number
Signal
Cable Color
1 VBUS Red
2 -
Data
White
3 +Data
Green
4 Ground
Black
