9.3 Electrical
Integrated wiper
- IN 230Vac, consumption 7W max
- IN 24Vac, consumption 7W max
Heater Ton 15°C+/-3°C (59°F +/-5°F) Toff 22°C+/-3°C
(71°F +/-5°F)
- IN 115/230Vac, fan assisted triple heater,
consumption 150W
- IN 24Vac, fan assisted triple heater, consumption 80W
Camera power supply
- IN 100-240Vac - OUT 12Vdc, 50/60 Hz, 1A
9.4 Environment
Indoor / Outdoor
Operating temperature with heater: -20°C / +50°C (-4°F
/ +122°F)
9.5 Compliance to
IP66/IP67 according to EN 60529 with cable glands

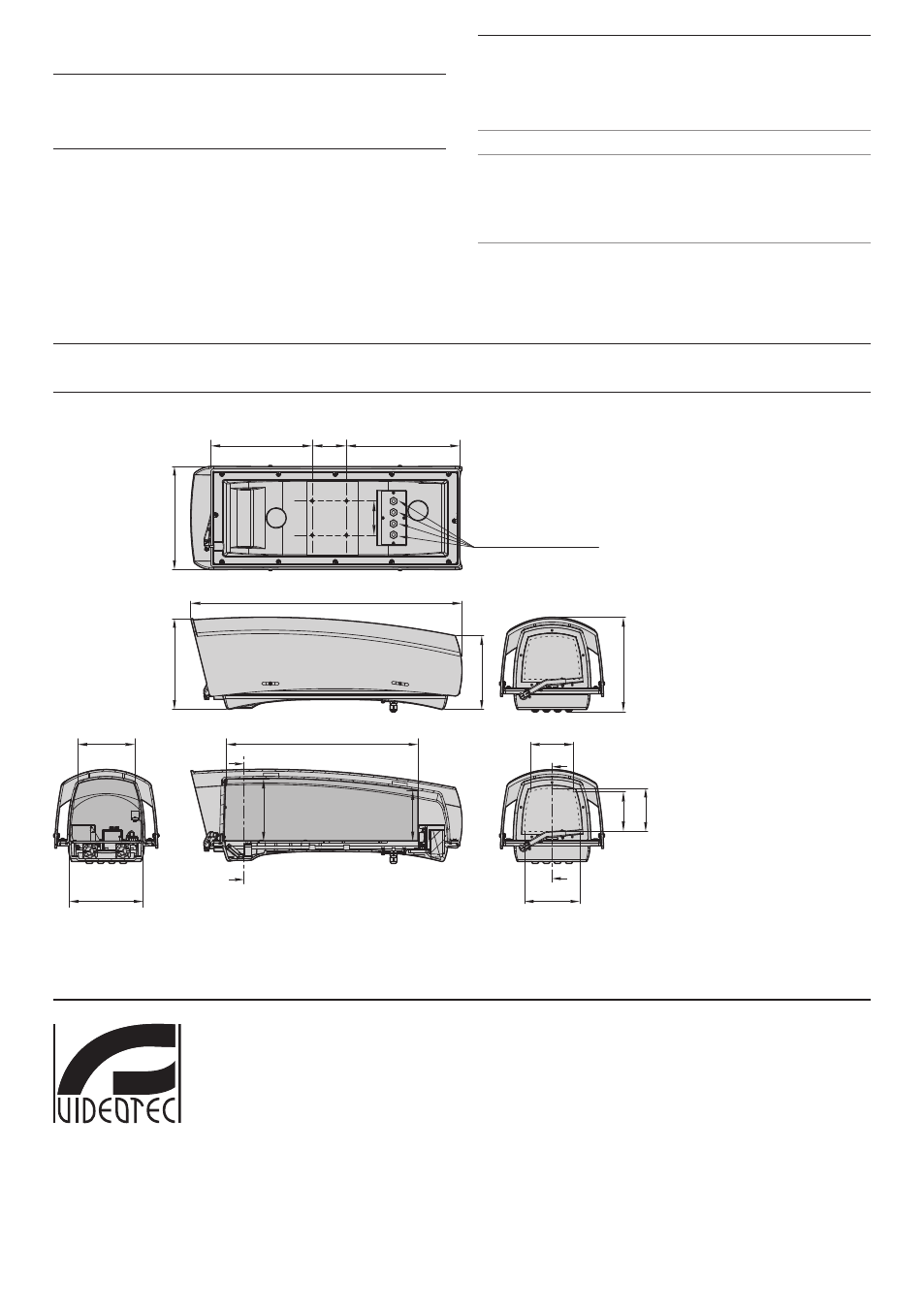

10 Technical drawings
j
The values are in millimeters.
256
280
93
246
139
169
201
108
117
156
519
117
275.2
736
93
307.2
200
150
D - D
C - C
D
D
C
C
4 CABLE GLANDS M16
USEFUL AREA
USEFUL
AREA
Fig. 26
HGV
VIDEOTEC S.p.A.
www.videotec.com
Printed in Italy
MNVCHGV_0850_EN
