Page 8: 2 how to install the camera
EN - English - I
nstruc
tions manual
6
MNVCHEEPOE_1407_EN

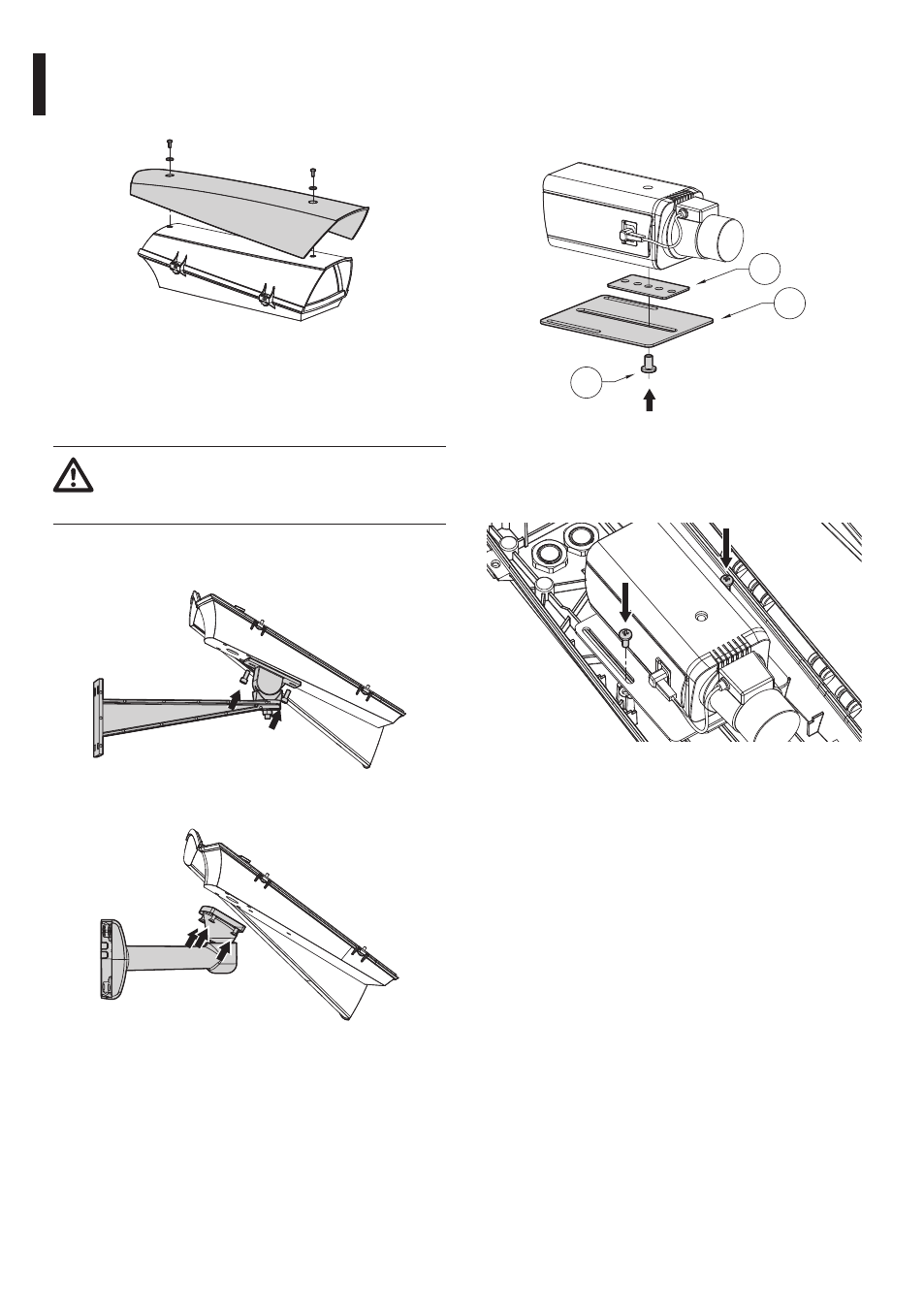

6.1.3 Fixing the sunshield
It’s possible to fix the sunshield to the housing using
screws, washers and spacers provided.
Fig. 4
6.2 Installation
6.2.1 Fixing of housing to support
Apply a generous amount of thread locking
compound into the screw holes (Loctite
243®).
Fix the housing to the support using the supplied
screws.
Fig. 5
Fixing on support with external cable passage.
Fig. 6
Fixing on support with internal cable passage.
6.2.2 How to install the camera
Fasten the camera with the 1/4" screw. If necessary,
use the supplied spacers to correctly position the
camera and optics (03).
02
03
01
Fig. 7
Fasten down the adjustable slide in the correct
position using the appropriate screws.
Fig. 8
