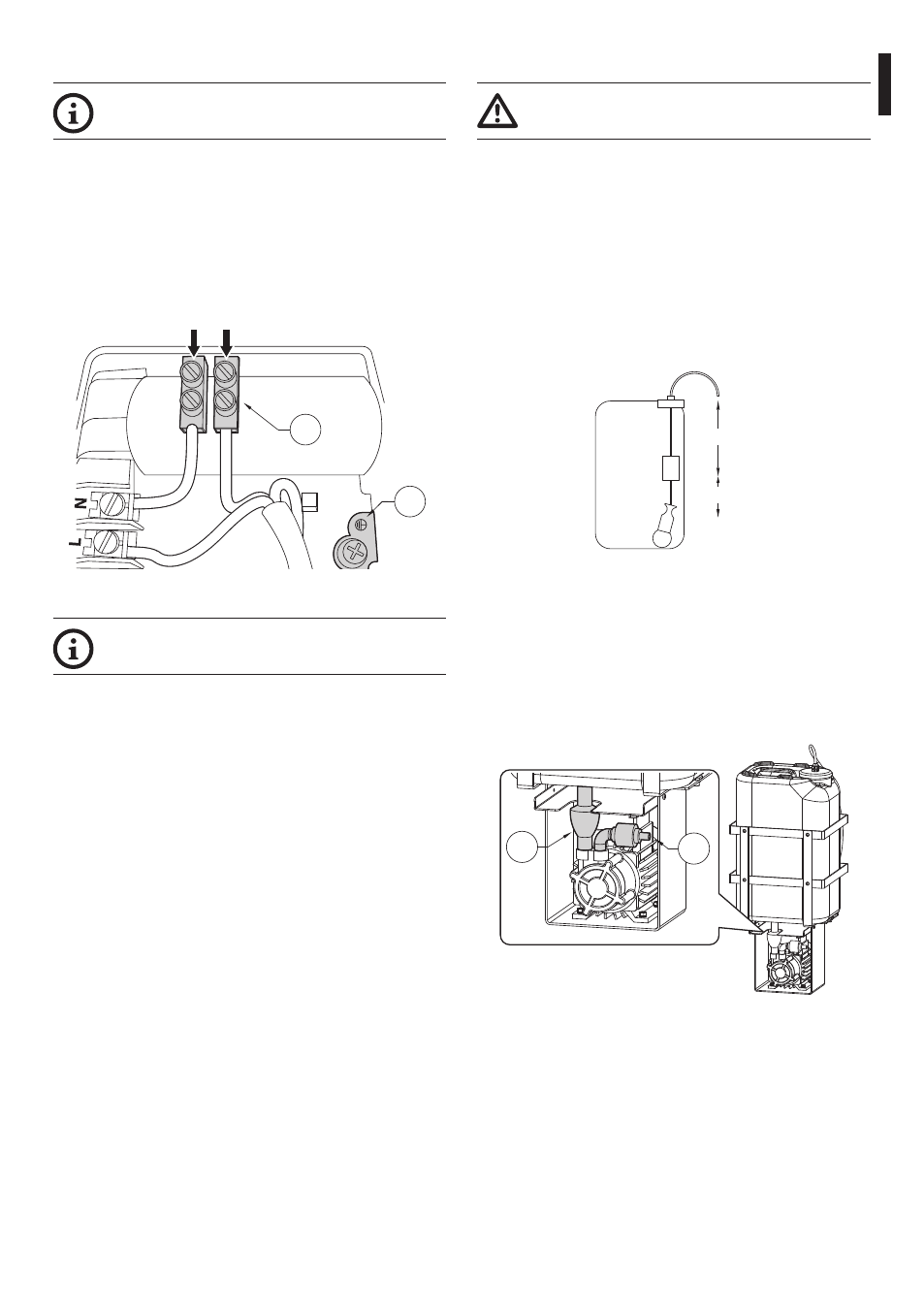

6.1.5 Connecting the pump motor
Operation valid for pump with 30m (98ft)
delivery.
To connect the pump use the auxiliary terminal
present in the waterproof box of the pump (01).
Connect the power supply phase cable (L) and
neutral cable (N).
Connect the earth cable to the pump casing (earth
hole) (02).
02
01
Phase (L) Neutral (N)
Fig. 8
Use an external switch (minimum capacity
4A, 250V) to activate the pump.
6.1.6 Pump installation
Be very careful not to start the pump when
the tank is empty.
6.1.6.3 Pump with 5m (16ft) or 11m (36ft)
delivery
Fill the tank with water and insert it in the metal cage.
Insert the pump in the tank and tighten the cap.
The system is ready to be powered.
6.1.6.4 Pump with 30m (98ft) delivery
Adjust the position of the level controller and the
weight.
220mm
120mm
Fig. 9
Fill the tank with water and insert it in the metal
cage, taking care to insert the male/female hydraulic
coupling (01) correctly. Put the float inside the tank
and screw the plug on. Check the delivery hose
coupling for the pump (02) to make sure a small
quantity of water comes out.
01 02
Fig. 10
Connect the supply pipe.
The system is ready to be powered.
