Specifications
Mechanics
Pan 0-355° horizontal plane movement
Speed 5° per second
Torque 35 Nm at specified voltage
Tilt 0-355° vertical plane movement
Speed 2,8° per second
Torque 63 Nm at specified voltage
Maximum load 40 Kg (88 lb) (balanced)
Protection IP 67
Potentiometer Linear Multiturns (10 turns)
General
Construction carpentry in Aisi 316 stainless steel
Finish external polishing
Temperature from -20°C to +55°C (from -4°F to 131°F)
Dimensions 164x250x280 mm
Weight 15 Kg (33 lb)
Cable diameter 10 mm
Electric features
Power Supply NXPTH210/NXPTH210C 230 V~ 50/60 Hz 13+13 W
NXPTH211/NXPTH211C 24 V~ 50/60 Hz 13+13 W
Wiring 6 cables 0.56mm.² (AWG 20) (Functions: left, right, up, down, common and earth).
4 cables 0.34mm.² (AWG 22) (Preset)

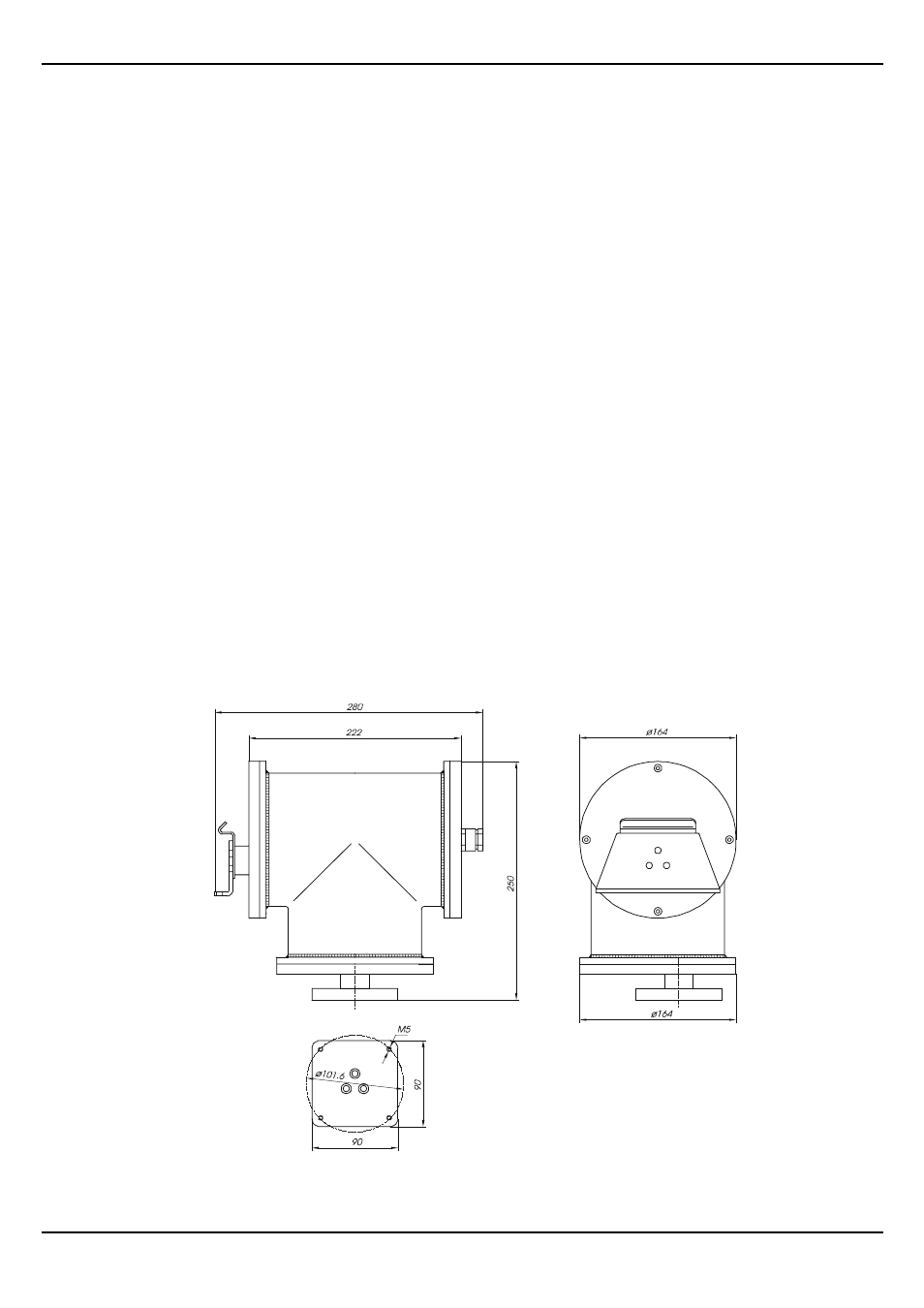

Dimensions
