RocketRAID 231x Hardware Description/Installation

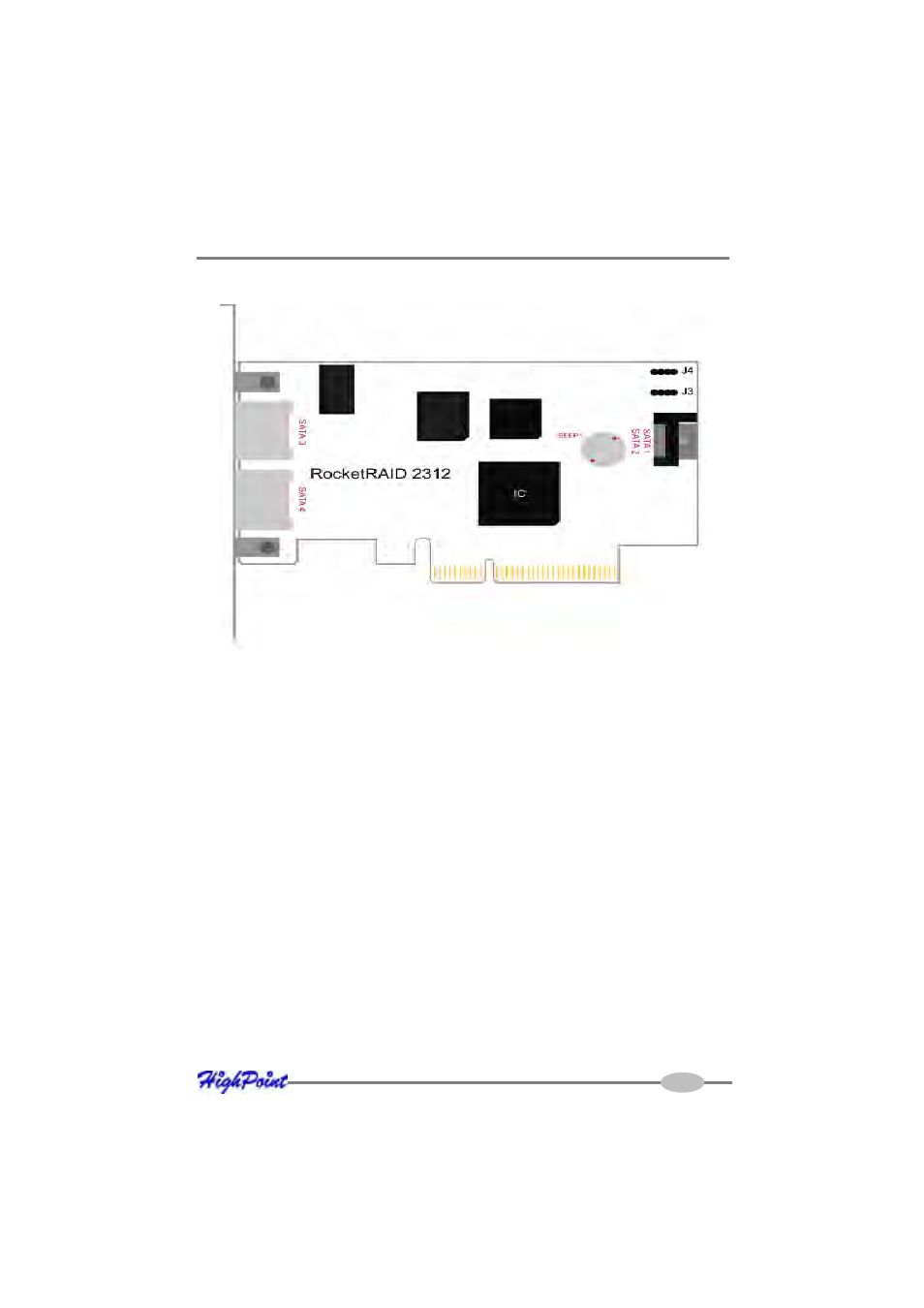

RocketRAID 2312
SATA1, SATA2
These represent the host adapter’s two internal SATAII channels
SATA3, SATA4
These represent the host adapter’s two external SATAII (eSATA) channels
J3, J4
These LED connectors can be used to configure Disk Failure (J3) and Disk Activity
(J4) indicators for hard disks attached to the RocketRAID 2312’s internal SATA
channels (SATA 1 and 2). These connections are ideal for server chassis that utilize
removable drive bays.
BEEP1 - Speaker
Alarm (speaker): the speaker emits and audible alarm in the case of disk/array failure.
