Web RAID Management Interface

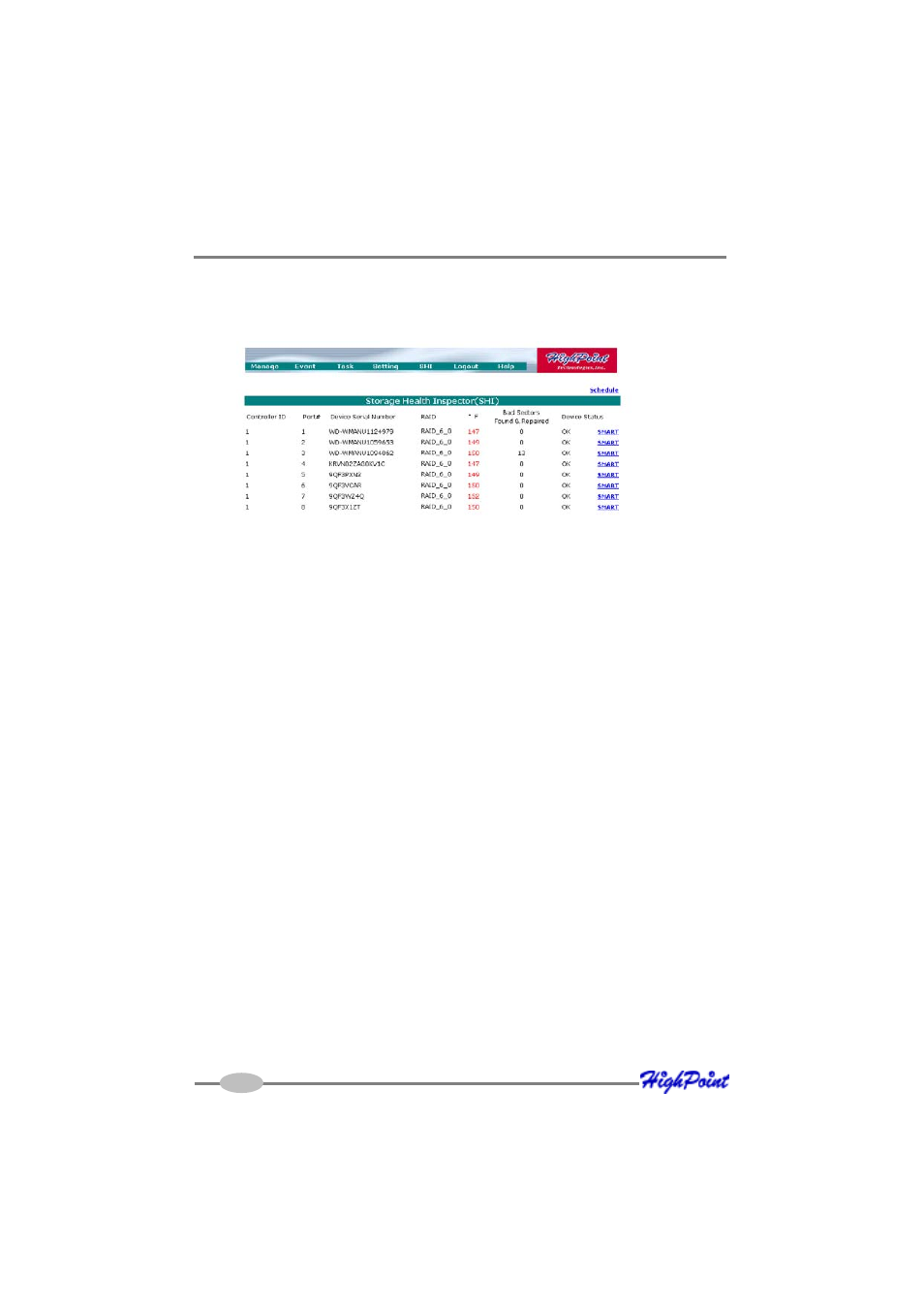

SHI – Storage Health Inspector
The primary SHI interface displays a brief “health” summary of each hard disk.
Controller ID
Which controller /card the disk is attached to.
Port #
Port location of the hard disk
Device Serial Number
Serial number of the hard disk
RAID
RAID/Non-RAID status
F
Temperature (in Fahrenheit) of the hard disk (Celsius is displayed under the SMART
status)
Bad Sectors/Found & Repaired
The card is capable of repairing bad sectors – a summary of this activity is presented
here.
Device Status
OK means the disk is in a healthy state. A Failed status suggests the disk was taken
offline (due to a RAID, SMART or sector failure.
Schedule
Click on the blue “ Schedule ” link to access the Event menu (see page 12 for more
information).
