RocketRAID 3xxx Hardware Description/Installation
Port1 – Port 8
These represent the RocketRAID 3320’s eight SATA channels.
SAF-TE
SAF-TE port. This support is dependent upon the system chassis. Not all chassis
models support SAF-TE features. Consult the chassis’s manual for more information.

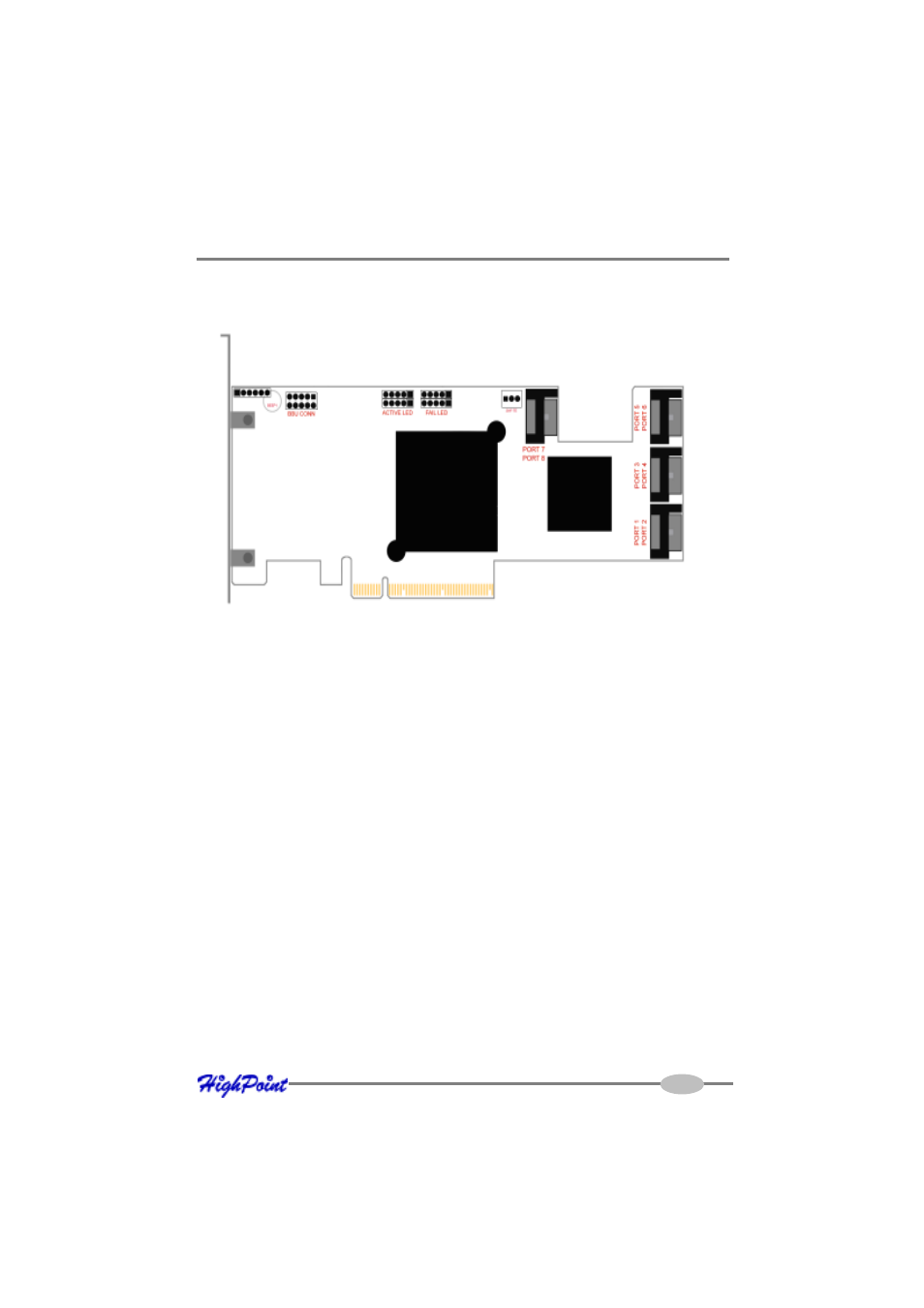

3 - RocketRAID 3320 Adapter Layout
ACTIVE LED, FAIL LED
LED connectors (disk-activity/disk-failure).
The RocketRAID 3320 has 4 LED jumpers, set in banks of two. 2 Jumpers are provided
for Disk Activity, and 2 are provided for Disk Failure.
The numbered pins (1-4, 5-8) represent each of the channels (hard disks).
