RocketRAID 3xxx Hardware Description/Installation
Port1
This represent the RocketRAID 3510’s one internal Mini-SAS port. One port can
support up to 4 hard disks.

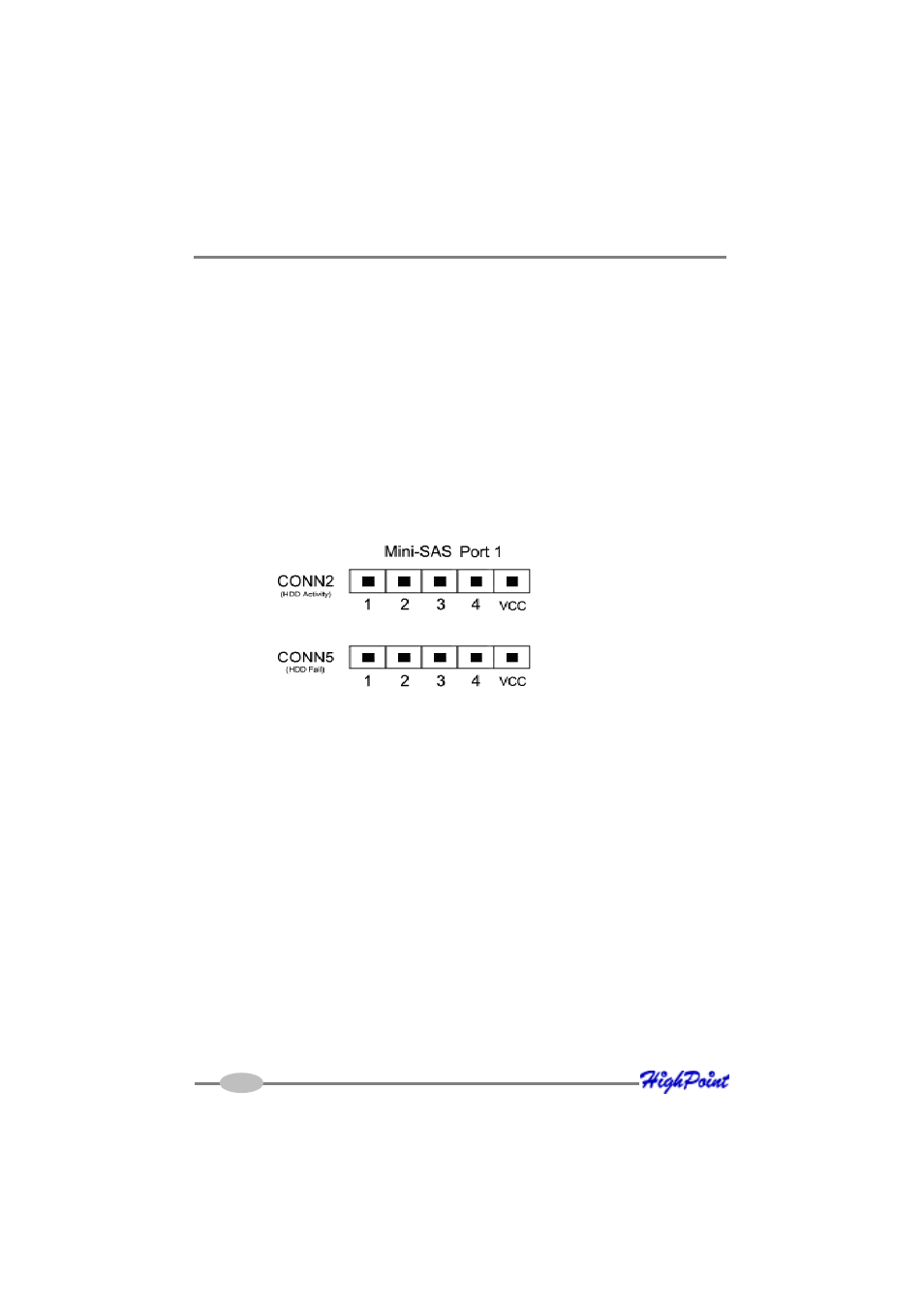

CONN2, CONN5 - Active LED, Fail LED
LED connectors (disk-activity/disk-failure).
The RocketRAID 3510 has 2 LED jumpers. Each Jumpers are provided for one Mini-SAS
port.
The numbered pins (1-4) represent each of the channels (hard disks).
For more information about LED support, contact our Customer Support Department.
BEEP1 – Speaker
Alarm (speaker): the speaker emits and audible alarm in the case of disk/array failure.
CONN10 (BBU)
Connector for battery backup (optional part).
2-3
