Connecting cables, Basic wiring, Figure 10 – Vaisala FD12P User Manual
Page 43: Connecting internal grounding, Figure 10 on p
Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 43
0110-182

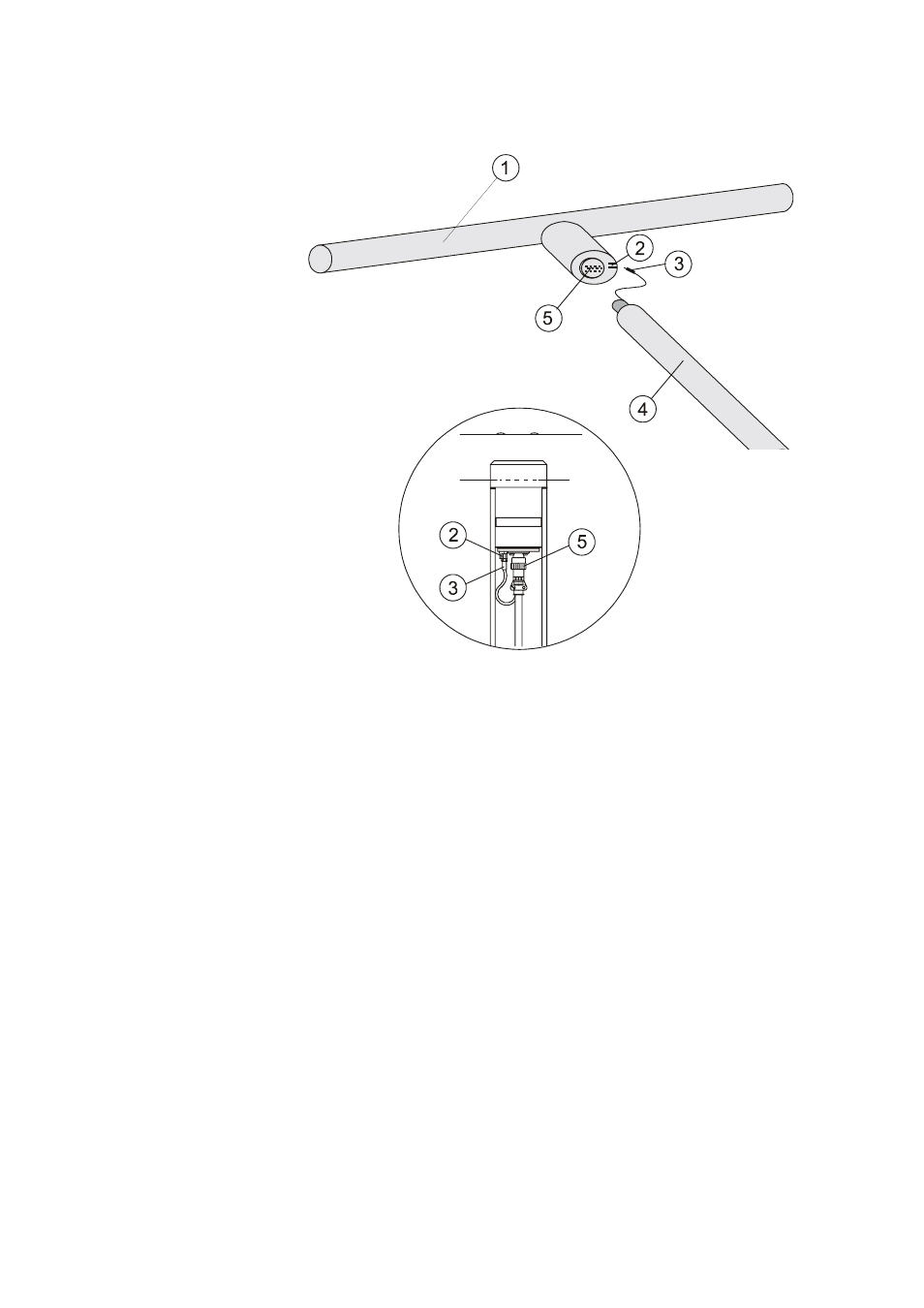

Figure 10
Connecting Internal Grounding
The following numbers refer to Figure 10 above:
1
=
Crossarm
2
=
Ground terminal socket
3
=
Grounding flat connector
4
=
Pole mast
5
=
MIL-connector
Connecting Cables
Basic Wiring
To do the basic wiring, do the following:
1.
The electronics enclosure includes a power cable. Remove the
plug.
