Figure 9, Dts14b and the sensor holder assembly to mast – Vaisala FD12P User Manual
Page 42
User's Guide _______________________________________________________________________
42
______________________________________________________ M210296en-A
- Insert the crossarm to the pole mast and lock it in the right
position with two 8-mm bolts.
- Erect the mast.
- Lift the DRD12 Rain Detector to an upright position. Tighten
the clamp.
0201-088

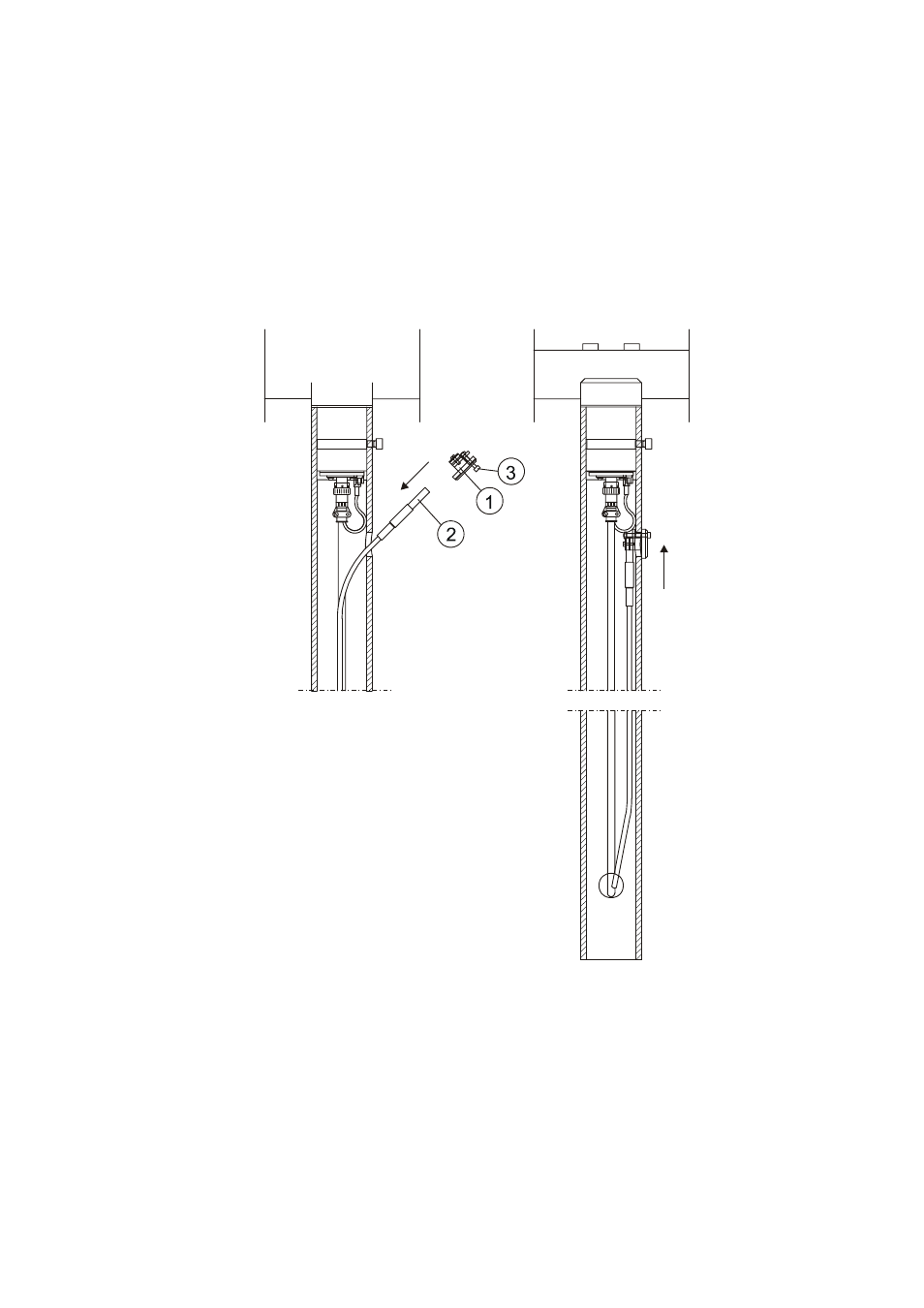

Figure 9
DTS14B and the Sensor Holder Assembly to Mast
The following numbers refer to Figure 9 above:
1
=
Sensor holder
2
=
DTS14
3
=
Fixing screw
