STATUS/DC/BATT provides the number of days since the
battery last met its charge parameters. Press the
soft key to restart the timer. Press the soft key to
view the next battery status screen.
batttery min(imum) displays the minimum battery voltage
since it was last reset by the user. Pressing the
soft key resets the battery minimum voltage; it also resets
automatically at midnight. Press the soft key to
view the next battery status screen.

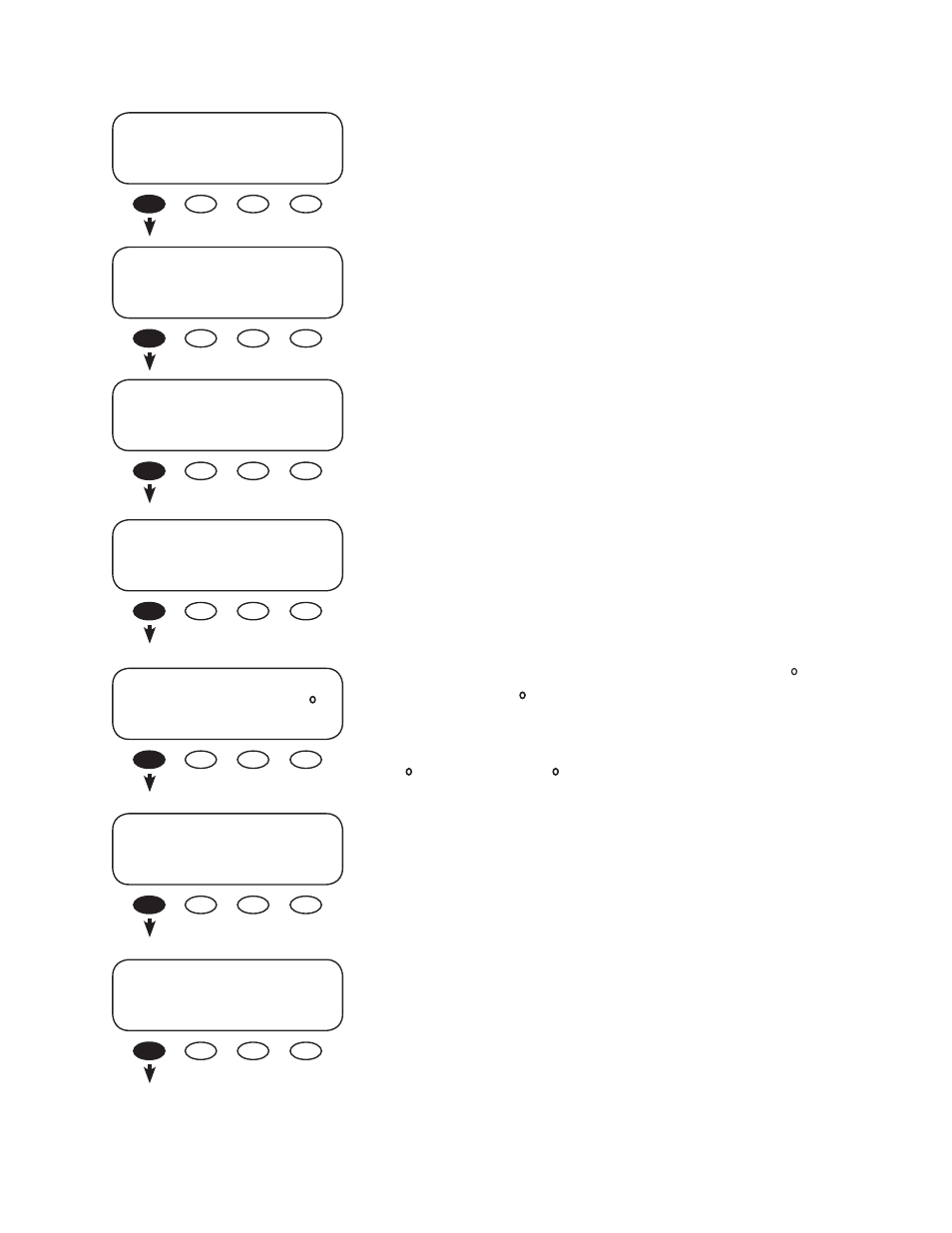

STATUS/DC/BATT
battery min today
12.4 vdc
DOWN UP RESET TOP
STATUS/DC/BATT
days since charge
parameters met 5.9
DOWN UP TOP
batttery max(imum) displays the maximum battery voltage
since it was last reset by the user. Pressing the
soft key resets the battery maximum voltage; it also resets
automatically at midnight. Press the soft key to
view the next battery status screen.
STATUS/DC/BATT
battery max today
12.7 vdc
DOWN UP RESET TOP
temp comp’d batt setpoint shows the temperature compen-
sated end of charge volts when a network RTS is part of the
system. Press the soft key to continue.
STATUS/DC/BATT
temp comp’d batt
setpoint 14.2 vdc
DOWN UP TOP
cycle charge factor displays the last cycle amp hours removed
and amp hours returned (as a percentage). Press the
soft key to continue.
cycle KwHr charge effi ciency states the last cycle kilowatt hours
removed and kilowatt hours returned (as a percentage). Press
the soft key to view the next screen.
STATUS/DC/BATT
cycle KwHr charge
effi ciency 65%
DOWN UP TOP
STATUS/DC/BATT
cycle charge
factor 78%
DOWN UP TOP
When an RTS is present and the temperature is less than 60 C
and greater than10 C, the temperature is displayed in Celsius
(C). Instead of a temperature reading, ### will appear if an RTS
is not present, is damaged, or the temperature is less than
10 C or greater than 60 C. Press the soft key to
continue.
STATUS/DC/BATT
system battery
temperature 29 C
DOWN UP TOP
