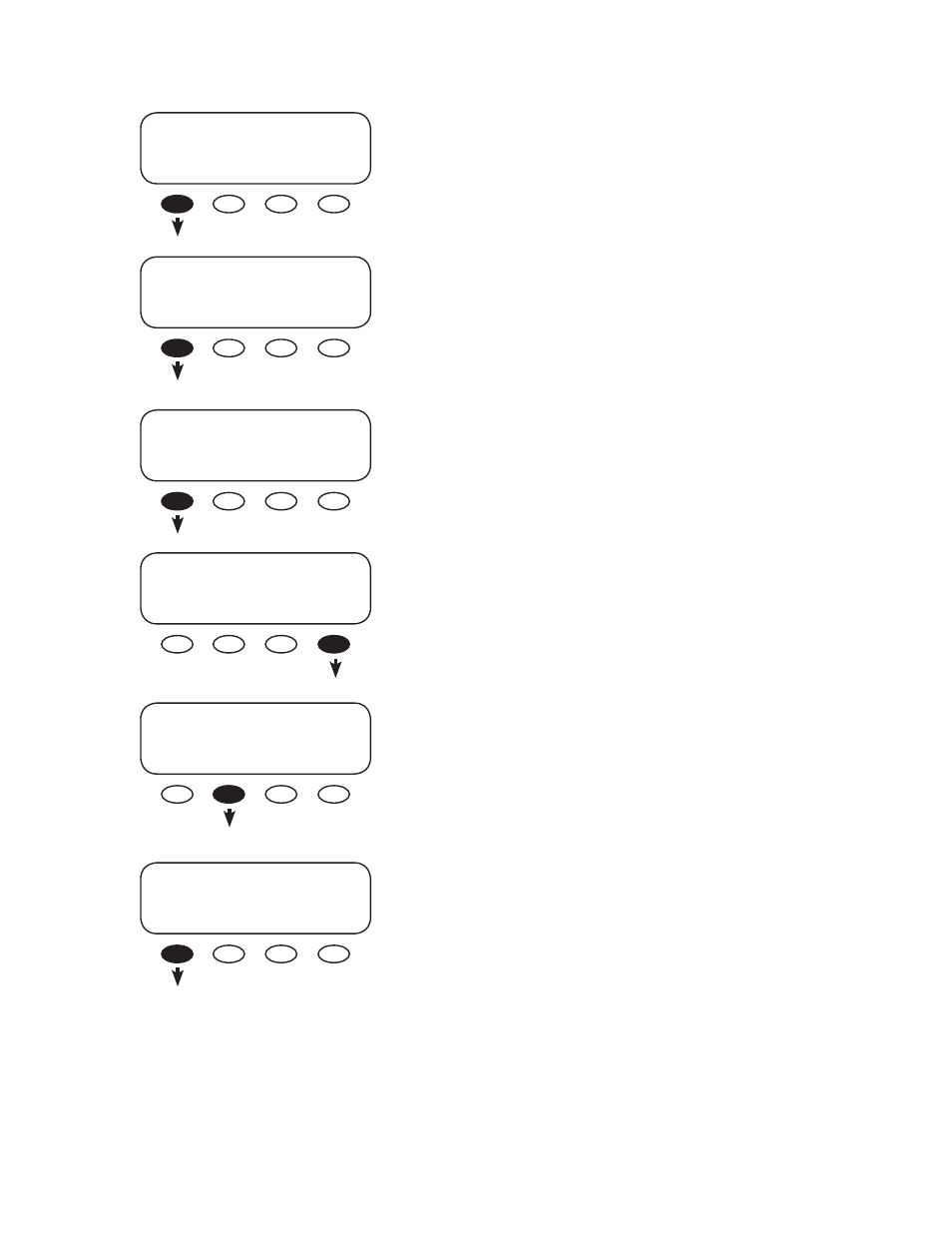

Pressing the soft key brings up the SHUNT
C charged screen.
Pressing the soft key leads to the end of
the meter menu
Press the soft key to return to the STATUS
screen.
Press the soft key to view the amps and
kilowatts removed and charged in each shunt
Pressing the soft key brings up the FN
fi rmware screen.
METER/DC/SHUNT C
charged
AH 0kWH
DOWN UP TOP
STATUS/FN
STATS
METER SHUNT BATT TOP
STATUS/FN/METER
end of meter menu
UP TOP STATUS
STATUS/FN/METER
DC fi rmware revision
000.00/040
DOWN UP TOP
METER/DC/SHUNT C
removed
AH 0kWH
DOWN UP TOP
In this example, SHUNT A has detected 0.9 amps
removed. Press the soft key to return this
value to 0. Press the soft key to continue
through the menu.
STATUS/DC/SHUNT A
max removed
amps 0.9
DOWN UP RESET TOP
