36
The FX connected to Port
01 is always programmed
as the Master.

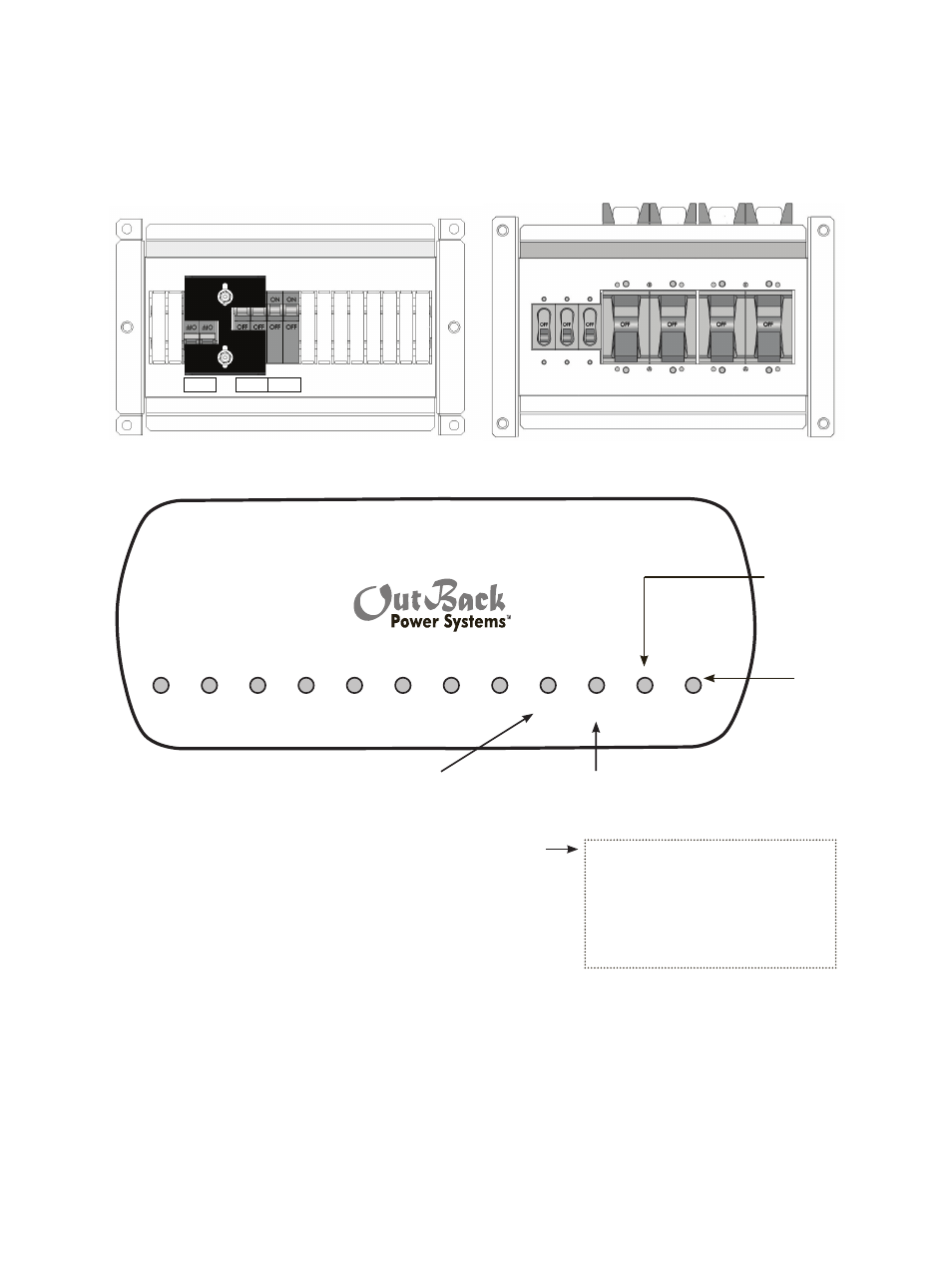

AC Breakers Off DC Breakers Off
Components and Connections:
1. With all AC and DC breakers OFF, connect all FXs to the HUB with individual lengths of CAT5 cable.
a) Connect the OutBack MATE after all other components,
including any OutBack Charge Controllers, have been
connected and powered up.
b) Components installed after powering up the system will
require repolling the MATE (please see page 8).
c) With the MATE, a user assigns a status and stacking value to
the FX on each Port. These status and value assignments can
be changed at any time as long as the Master FX is plugged
into HUB Port 01.
• The Master FX is always considered to
be the Leg #1 or L-1 phase.
POWER HUB
10 9 8 7 6 5 4 3 2 1 2 ND
mate
1 st
mate
Slave FXs plug into Ports 02 and higher
OutBack Charge Controllers plug into any
ports after the last FX is connected.
2 nd MATE
port is not
operable
MATE
connects
at 1st MATE
port
BYPASS OUTPUT INPUT
Note: Pay attention to the Port number on the screen! Be sure the FX whose status and stacking value
you’re changing is the one you mean to change.
