25
Setting Explanation

WPA Algorithms
：
Provides TKIP [Temporal Key Integrity Protocol]
or AES [Advanced Encryption Standard]. The default is TKIP
mode.

Pass Phrase
：
Enter the encrypted characters with 8-63 ASCII
characters.

Key Renewal Interval
： Set the key’s renewal period.

Radius Server
：
Enter the IP address of the Radius server.

Radius Server port
：
Enter the authentication port of the Radius
server. The default is 1812.

Shared Secret
：
Enter the shared key for authentication server
with 8~63 ASCII characters.

Session Timeout
：
The authentication interval period between
AP and authentication server. The default is 3600s.

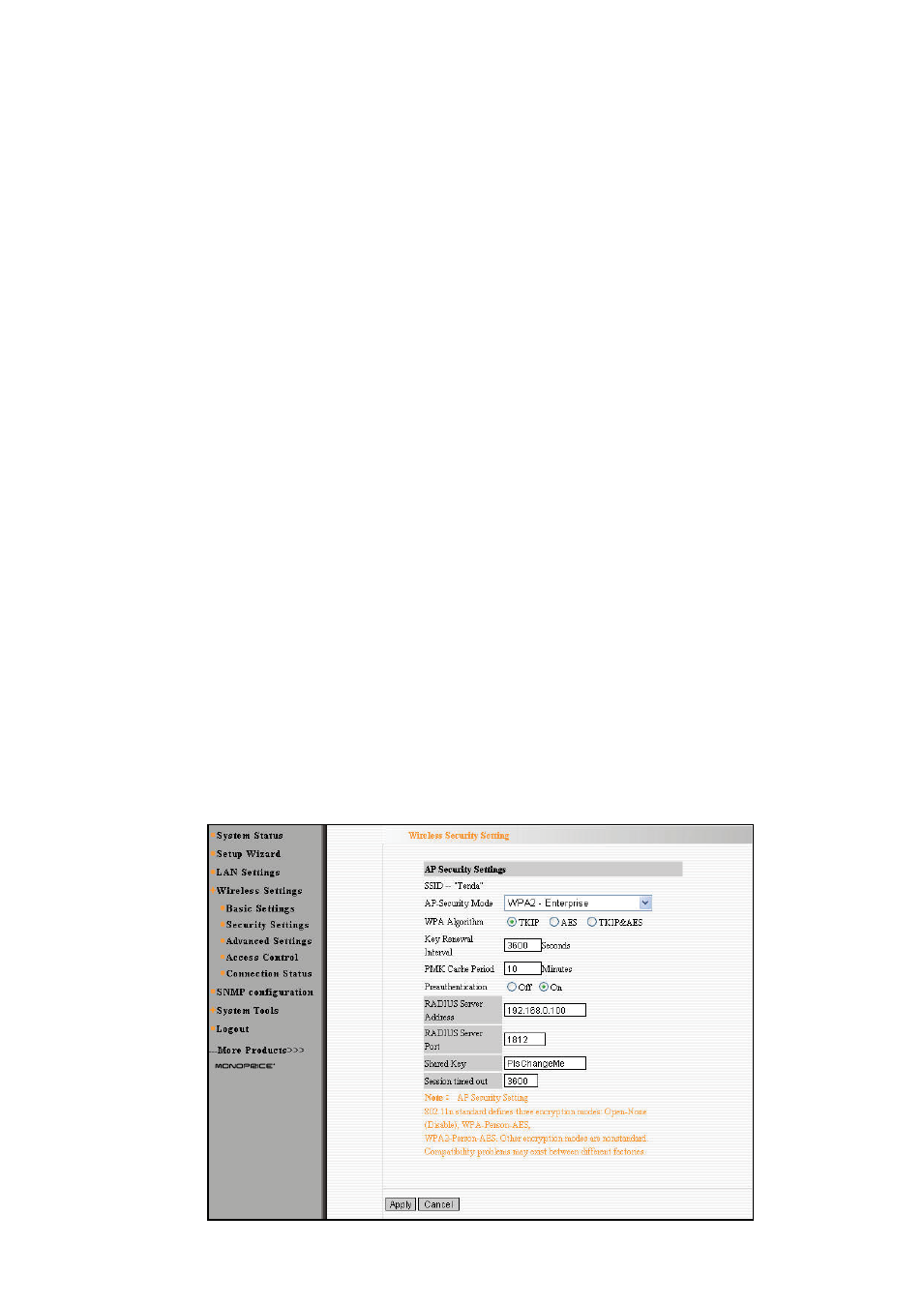

WPA2
This security mode is based on Radius authentication server and WPA2
encryption method. WPA2 is used when a RADIUS server is connected
to the device. Select “WPA2” from the drop-down menu to enter the
following window:
