2 3
STEP 5
1. Mount and position in a convenient orientation the three (3) relay pack assembly to a flat surface.
STEP 3
1. Mount the Docking Station in desired location.
a. Drill and Cut openings according to Figure 2 (Use enclosed template)
b. Route docking station cable through center opening
c. Slide docking station into opening and secure with provided bolts and lock nuts
2. Assemble the Docking Station Face Plate
a. Toe in top tab on docking station face plate
b. Rotate face to engage lower tab
c. Push face plate until both tabs snap into place
Note: If Docking Station Face Plate removal is required insert a large, flat blade screw
driver on tab and gently pry until the tab disengages. Pull Face from docking station.
STEP 4
1. Mount the module to a flat surface using 1/4" or equivalent screws (not included). During installation
the wiring harnesses can be removed temporarily from the control modules. The wire harness
connectors (Deutsch) are keyed to insure correct orientation when reattached to the control modules.

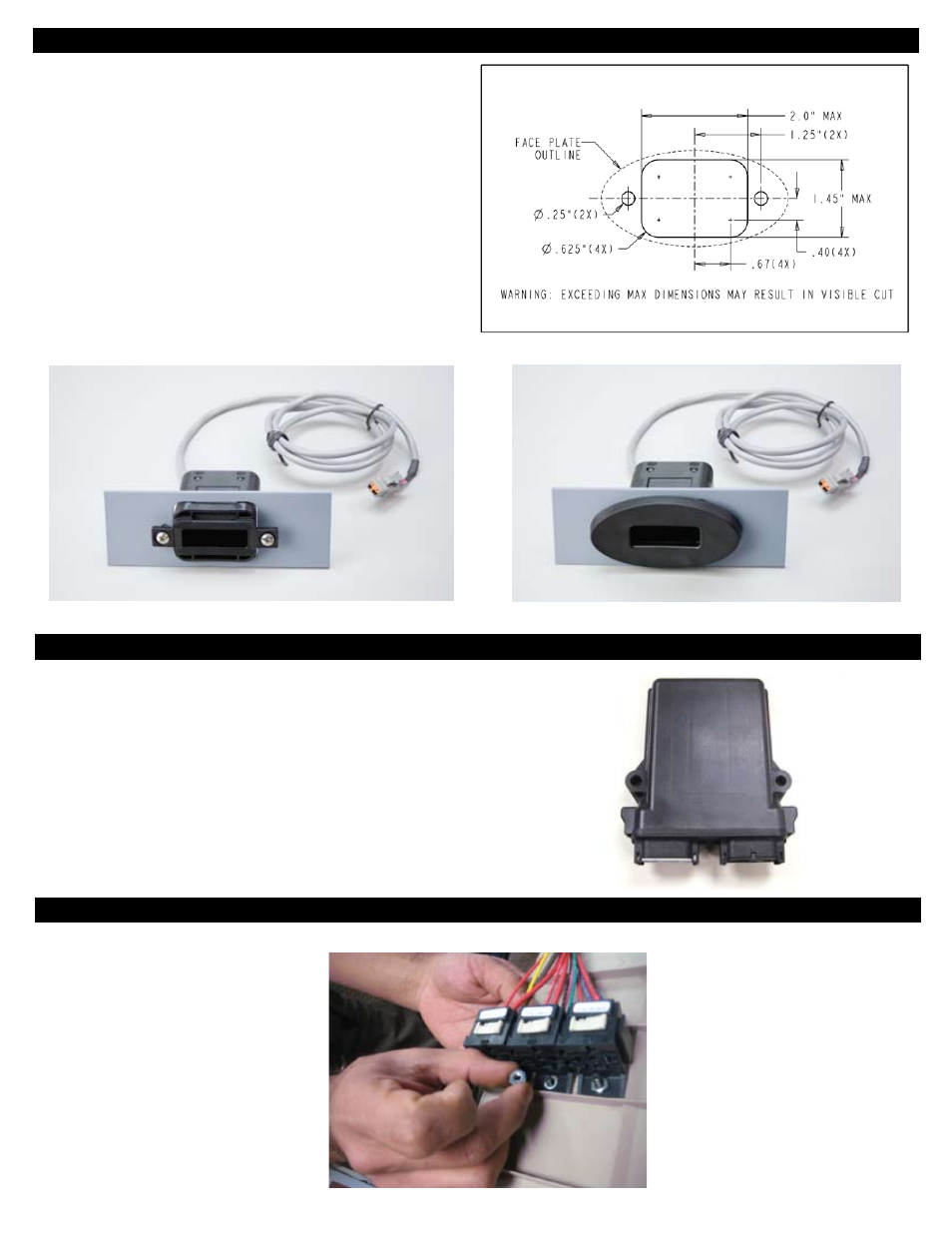

Figure 2
