Flaming River Keyless Ignition Systems User Manual
Page 10
10
11

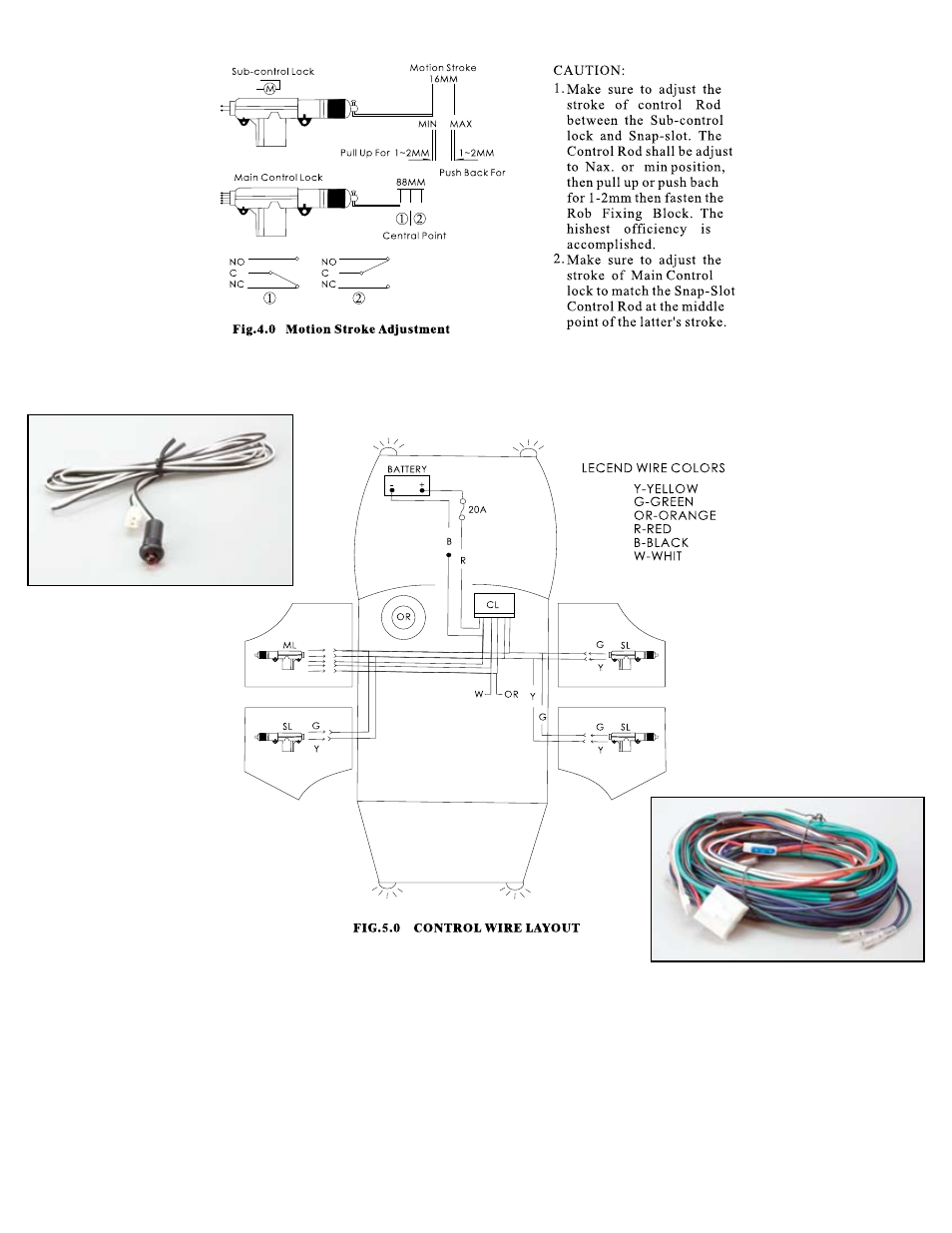

2. CONTROL WIRE WIRING ILLUSTRATION
CAUTIONS: 1. Connect – Red wire and Black wire to battery Cathode and Anode respectively.
2. For protecting wires passing through door and car casing, please insert wires through flexible tubes for preventing moisture.
3. MECHANISM MOTION TEST:
a. Pull and push the door-lock snob repeatedly to see if the other three door lock moves in the same direction and at the same time. (When a reversed motion is found, please reverse
the connection of the Yellow and Green wires)
b. When the test is finished successfully, fasten the door internal decoration board properly.
.1.
.2.
.3.
