TECHNICAL BULLETIN # 1002
STEERING BOX CENTERING INSTRUCTIONS – FR1540 MOPAR STEERING BOX
WARRANTY: ONE (1) YEAR FROM DATE OF PURCHASE. REPLACEMENT OR REPAIR OF PRODUCT DEEMED
DEFECTIVE BY THE FACTORY.
ANY LABOR INCURRED IS SPECIFICALLY EXCLUDED.
WEIGHT: 18 LB
IMPORTANT!!! It is critical that the steering box be at the center position BEFORE installation.
Incorrect centering will cause loose steering and premature wear. You should feel the box tighten
when at the center.
NOTE: All boxes are pre-lubricated and pre-adjusted to factory specifications.
DO NOT ADJUST THE STEERING BOX!!!
16:1 RATIO GEAR BOX FR1540
1) Place the steering box in a bench vise and be certain the box is held securely.
2) Place a ¾”-36 u-joint on the pinion input shaft
3) Turn the shaft to the right (clockwise) all the way to the right lock.
4) Turn the shaft to the left (counter clockwise) all the way to the left lock. (approx. 4-1/8 turns)
5) Turn the shaft to the right (clockwise) half the number of turns. (approx. 2-1/16 turns) You
should feel the box tighten when at the center.
6) Align the wide spline on the sector shaft of the box with the center of the sector area of the
casting.
P
Pinion Shaft Size Pinion Shaft Size:
5/8”-36
Pitman Shaft Thread:
7/8”-14

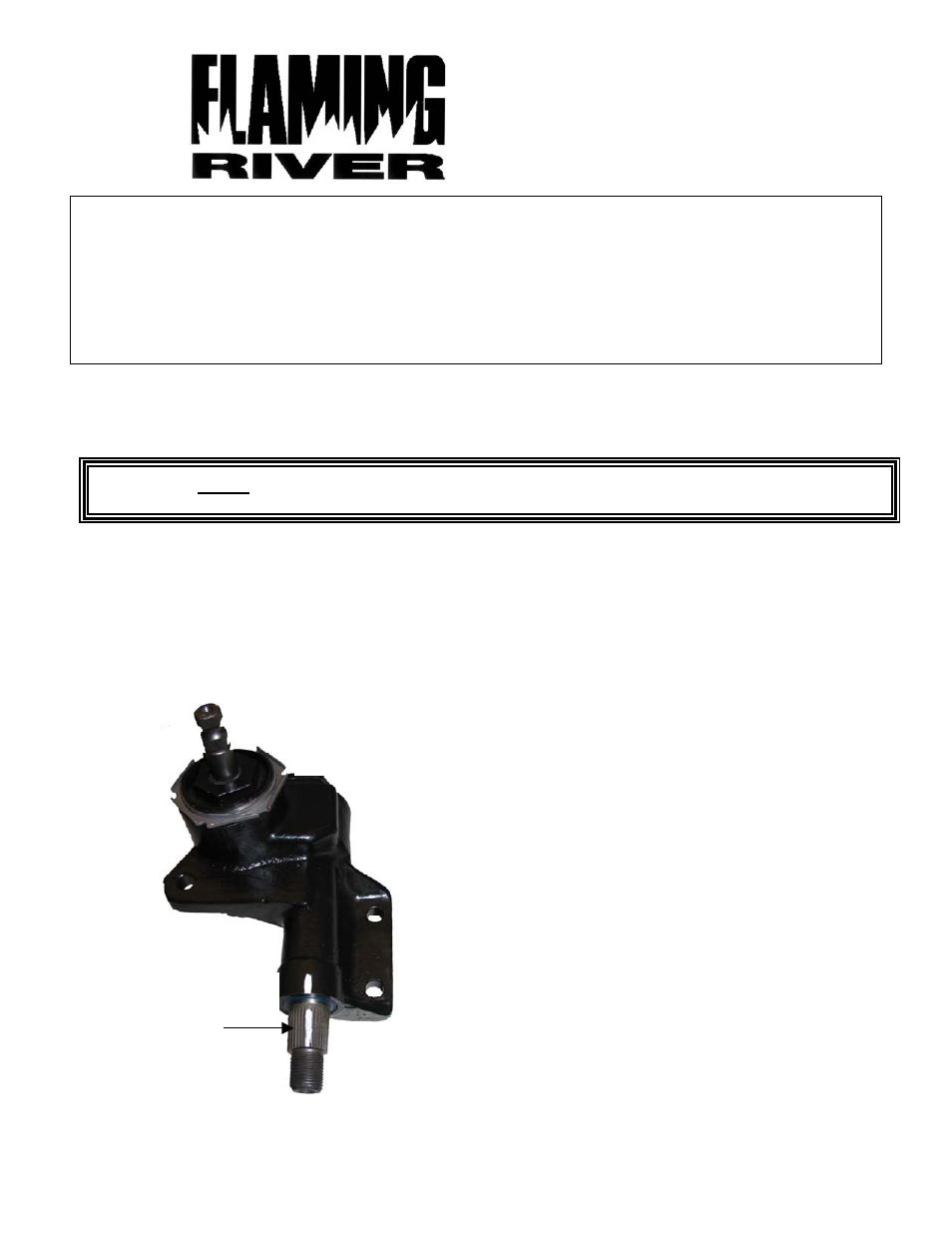

Paint stripe indicates
centered shaft.
Paint may or may not
be on box.
