WTTÃ9DQÃTvpuÃAyÃ8uh

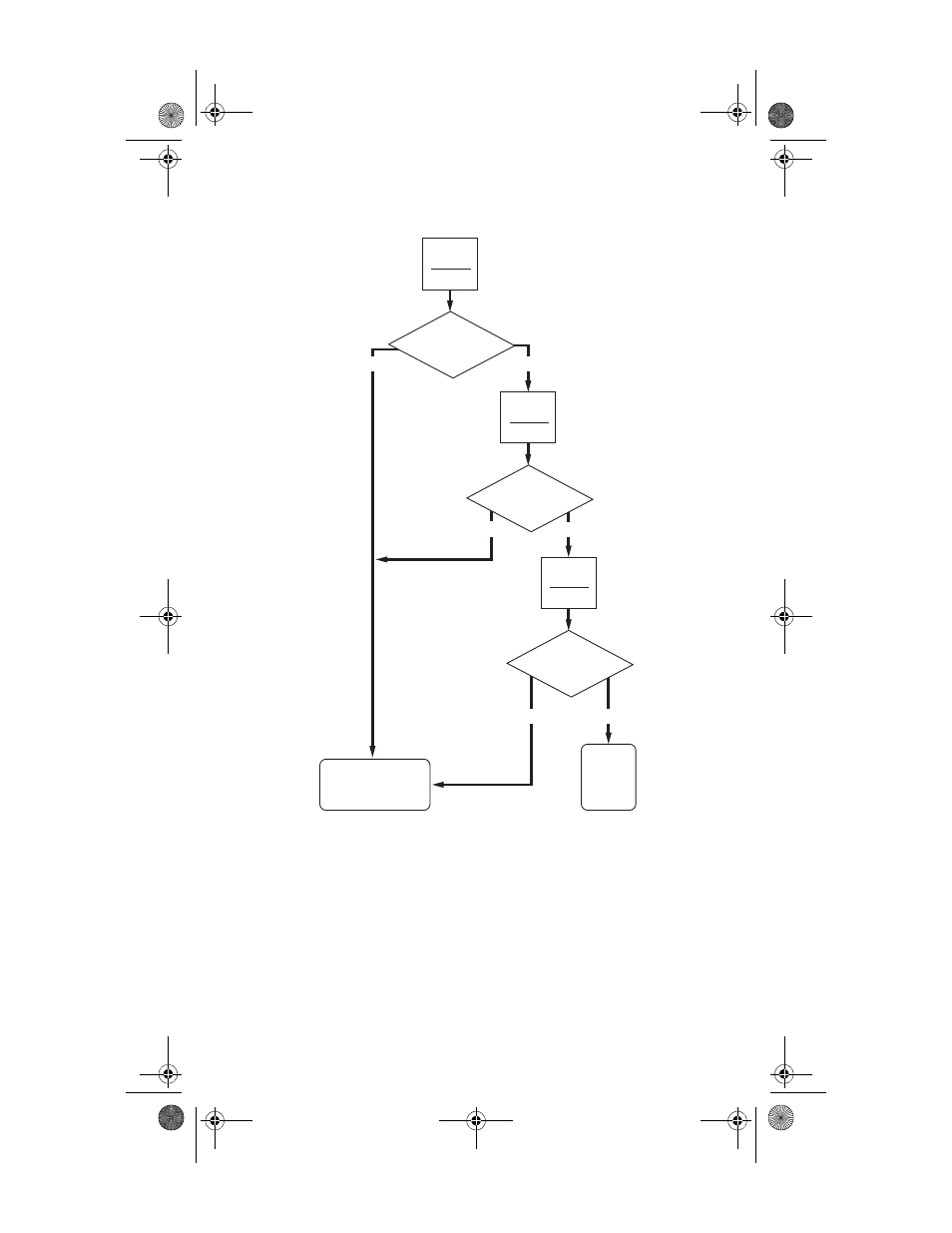

Use this flow chart to determine the optimum VSS dip switch setting.
0 = OFF
1 = ON
Set
1 2 3 4
0 1 0 1
Drive 2 mph.
Green LED flashing
or dimmed?
Drive 2 mph.
Green LED flashing
or dimmed?
Yes
No
Yes
No
Set
1 2 3 4
1 0 1 1
Turn Test LED Off (SW4)
and you are done.
Set
1 2 3 4
1 1 0 1
VSS not
working.
See
Trouble-
shooting.
No
Yes
Drive 2 mph.
Green LED flashing
or dimmed?
