3URFHGXUH ,QVWDOO WKH 'ULYH5LJKW &RQVROH

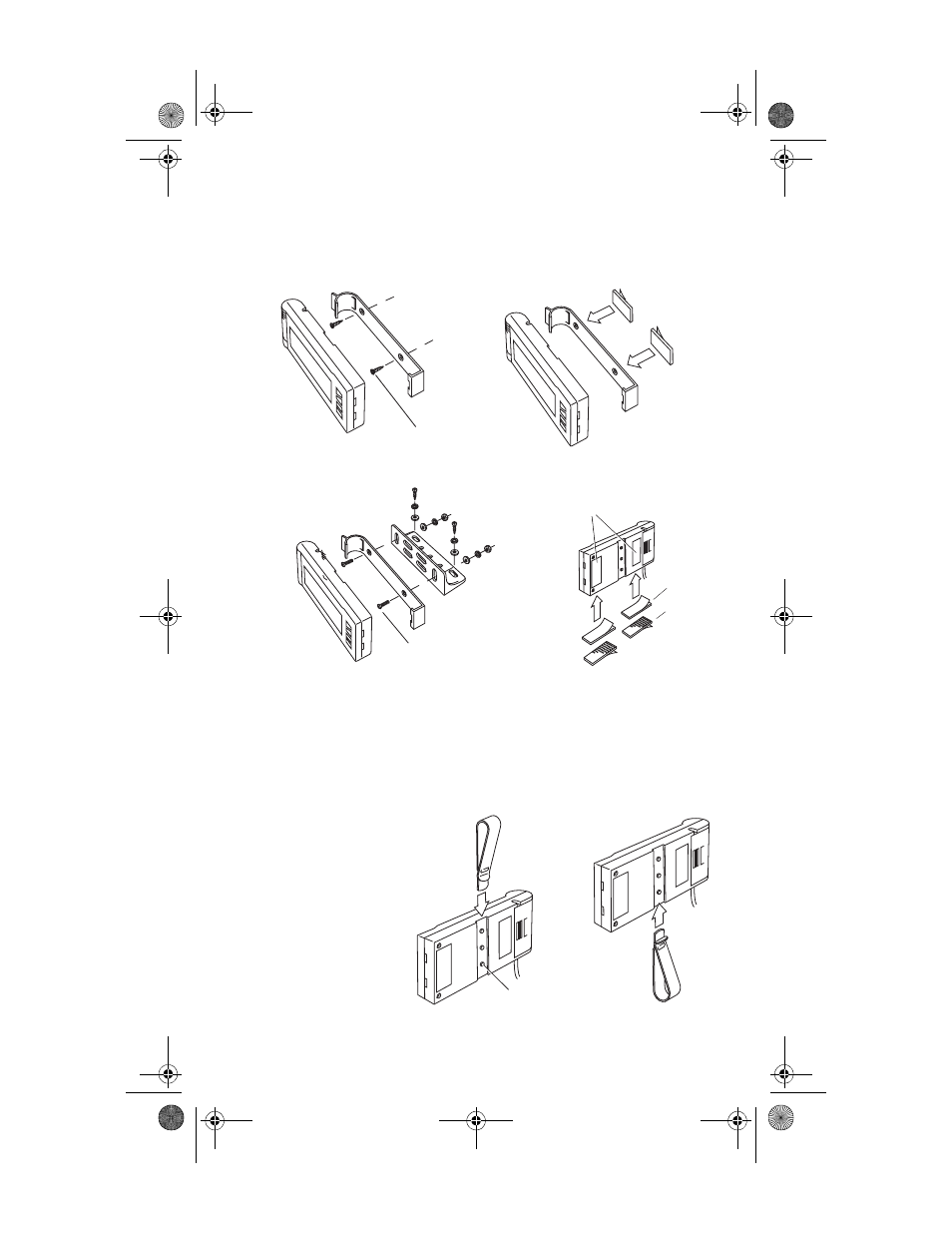

The DriveRight console can be mounted in a number of places, including the top
of the dash, on the face of the dash, or on a sun visor.
AhprÂsÃ9h†ui‚h qÃH‚ˆ‡vtÃPƒ‡v‚†
U‚ƒÃ‚sÃ9h†ui‚h qÃH‚ˆ‡vtÃPƒ‡v‚†
D†‡ ˆp‡v‚†Ãs‚ ÃV†vtÃWryp ‚ ® )
Apply the two adhesive-backed Velcro loop tapes to the flat spaces on the
back of the console or to the back of the bracket.
! Attach the hook tapes to the loop tapes, then press adhesive backing of the
hook tape onto your selected mounting surface. Do not separate the Velcro
for at least 24 hours after applying.
TˆÃWv†‚ ÃH‚ˆ‡vtÃ
Use the visor clip to
mount your console on
a visor or door pocket.
Install the clip on
the top or bottom
of the console to
orient the console
as you wish.
! Push the clip in
until the 3rd bump
engages.
Mounting
Bracket
Double-Sided
Foam Tape
OR
Flat Head Self-Tapping Screw
Mounting
Bracket
Pan Head Self-Tapping Screw
Split-Lock Washer
Flat Washer
Hex Nut
Split-Lock Washer
Flat Washer
Right Angle
Adapter Bracket
Mounting Bracket
Flat Head Machine Screw
Bracket Mounting
Loops
Hooks
Velcro Mounting
Flat Space
for Velcro
3 Bumps
(to hold clip)
OR
Visor Clip
