A voltmeter measures the voltage between the two
points where the leads are connected. Most vehicles
exhibit between 13 and 15 volts while being
operated above idle speed. Check your owners
manual or dealer for a more exact normal voltage
for your vehicle. A voltmeter is useful in that it
can give a warning of many electrical problems.
PRECAUTIONS
1. Follow the instructions carefully for the sequence
of nuts and washers on the connection posts
of the voltmeter. Refer to Figure 2.
2. Disconnect the battery ground cable before
performing any electrical work.
3. Route all wiring away from linkages, engine
parts that become hot, or moving parts.
4. Never smoke while working on your vehicle
and always keep a fire extinguisher nearby.
It should be rated for gas/chemical/electrical
fires.
5. Never lay tools on top of the battery or wear
jewelry during electrical work to avoid severe
electrical shorts.
6. Locate and operate gauges so that driving
visibility is not compromised.
VOLTMETER GAUGE
INSTALLATION INSTRUCTIONS
INSTALLATION
Make temporary test connection before permanently
mounting hardware or drilling holes.
This gauge can be mounted into any surface or into
a gauge pod. Refer to Figure 1.
NOTE: Do NOT leave any hardware out of these
connections.

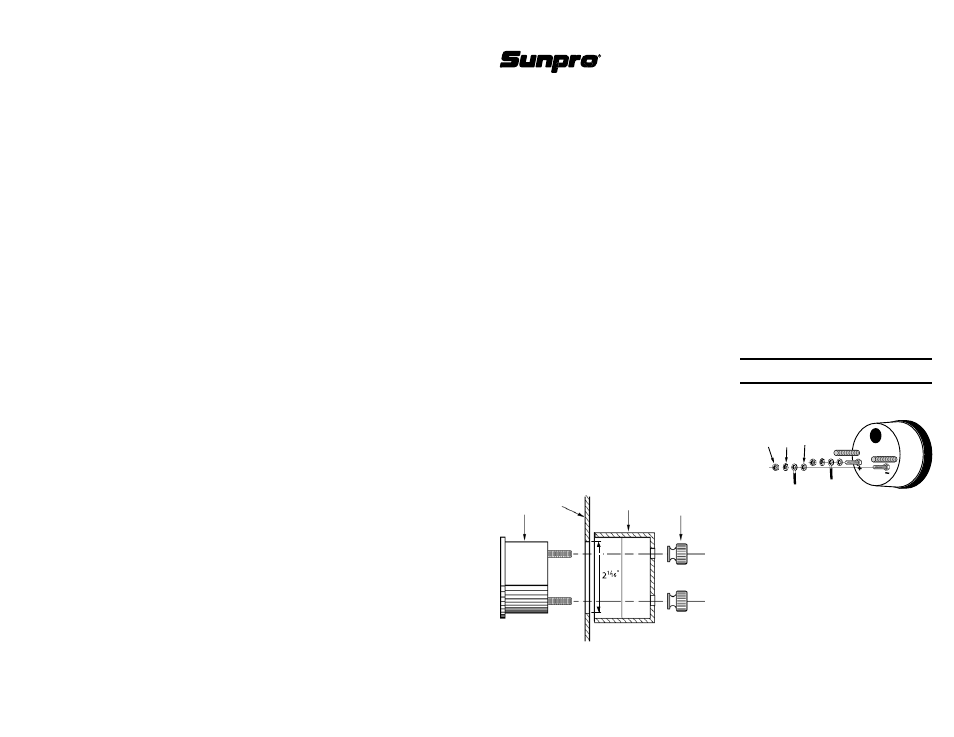

Figure 2
Wire Connections
GRouND
WIRE
FLAT
WASHER
LoCk
WASHER
VoLTMETER
+12V WIRE
NuT
GAuGE
DASHboARD
bRACkET NuTS
(kNuRLED)
Figure 1
Gauge Mounting:
Do not install bracket and nuts until step 9.
Sunpro ®
15825 Industrial Parkway,
Cleveland, oH 44135, u.S.A.
©2006 SPX Corporation
Sunpro ® is a registered trademark of Snap-on ®
Corporation used under license to
SPX ® Corporation 0002-000-2912
For warranty information
contact us at:
1-800 228-7667 or www.sunpro.com
1. Disconnect the ground cable from the bat-
tery.
2. Choose a location to mount the gauge where
it will be viewable from a normal driving posi-
tion.
3. If you are installing the gauge into a surface (for
example the dashboard) make a 2-1/16” hole
for the gauge.Do not accidentally cut any wires
or hoses. be sure there is clearance around
the hole for the gauge mounting bracket.
4. Connect a length of 18-gauge insulated copper
wire to a good ground source. be sure the
grounding surface is a good ground source
as not all metal surfaces inside the vehicle
are well grounded. This wire should be long
enough to reach the voltmeter’s mounting
location.
5. Connect another length of 18-gauge wire to
a location on the fuse box where the wire will
receive power whenever the ignition key is in
the START, oN or ACCESSoRY positions.
This wire should also be long enough to reach
the voltmeter.
6. After mounting the gauge, the wire from the
ground source (Step 4) should be connected
as shown in Figure 2, to the voltmeter’s con-
nection post marked “–”.
7. The wire from the fuse box (Step 5) should
be connected as shown in Figure 2, to the
voltmeter’s connection post marked “+”.
