2. CONNECTIONS

continued …

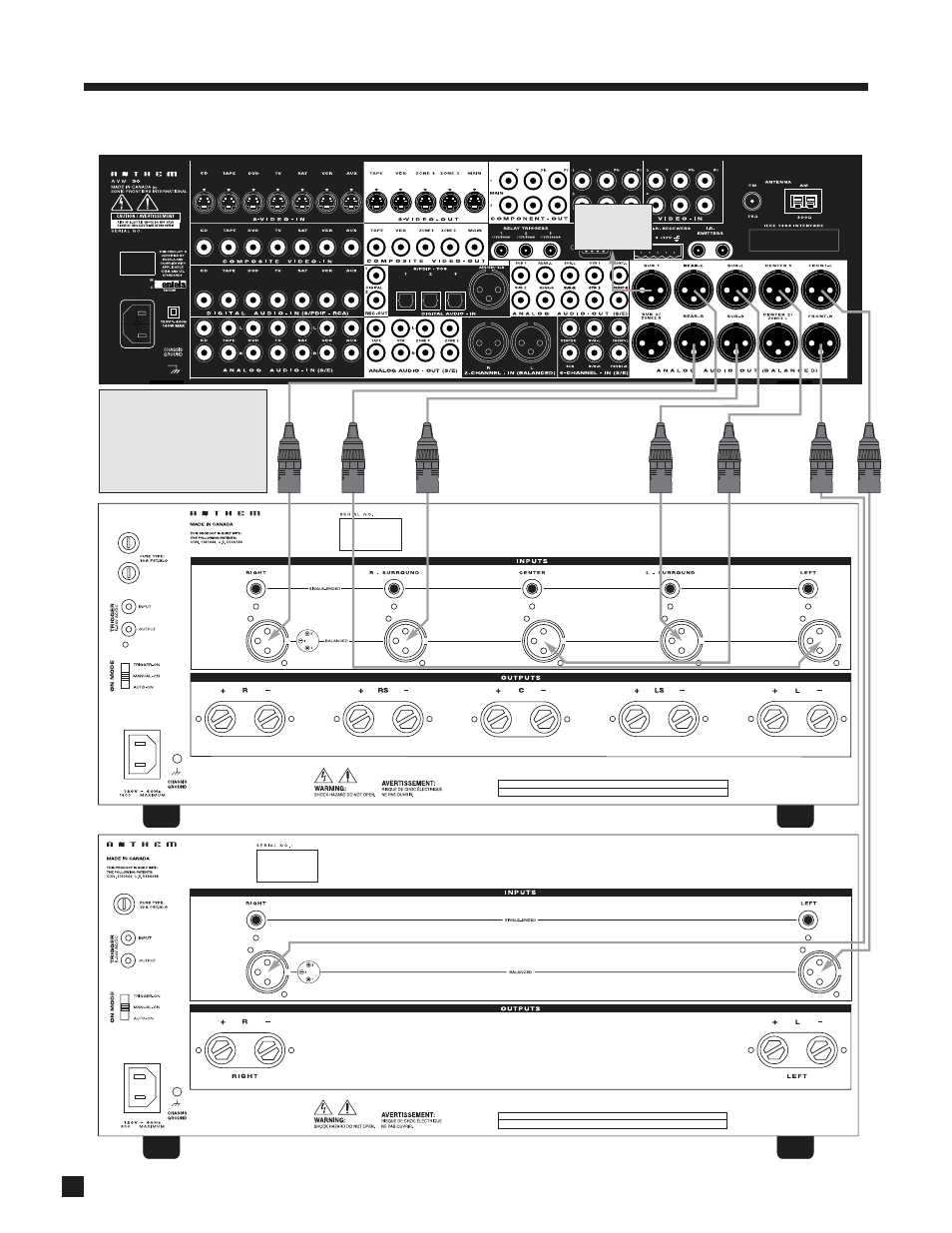

Example 3: AVM 30 to Amplifiers and Subwoofer

(Balanced connection shown, single-ended is similar)

M C A 5 0

WARNING

RISK OF HAZARDOUS ENERGY! MAKE PROPER SPEAKER CONNECTIONS. SEE OPERATING MANUAL BEFORE USING.

WARNING

RISK OF HAZARDOUS ENERGY! MAKE PROPER SPEAKER CONNECTIONS. SEE OPERATING MANUAL BEFORE USING.

M C A 2 0

Trigger Setup Suggestion:
If it is not necessary to have both
amplifiers turned on when stereo
sources are playing, set triggers
to turn on only the 2-channel
amplifier when a stereo source is
selected (see section 3.9).

To powered

subwoofer
