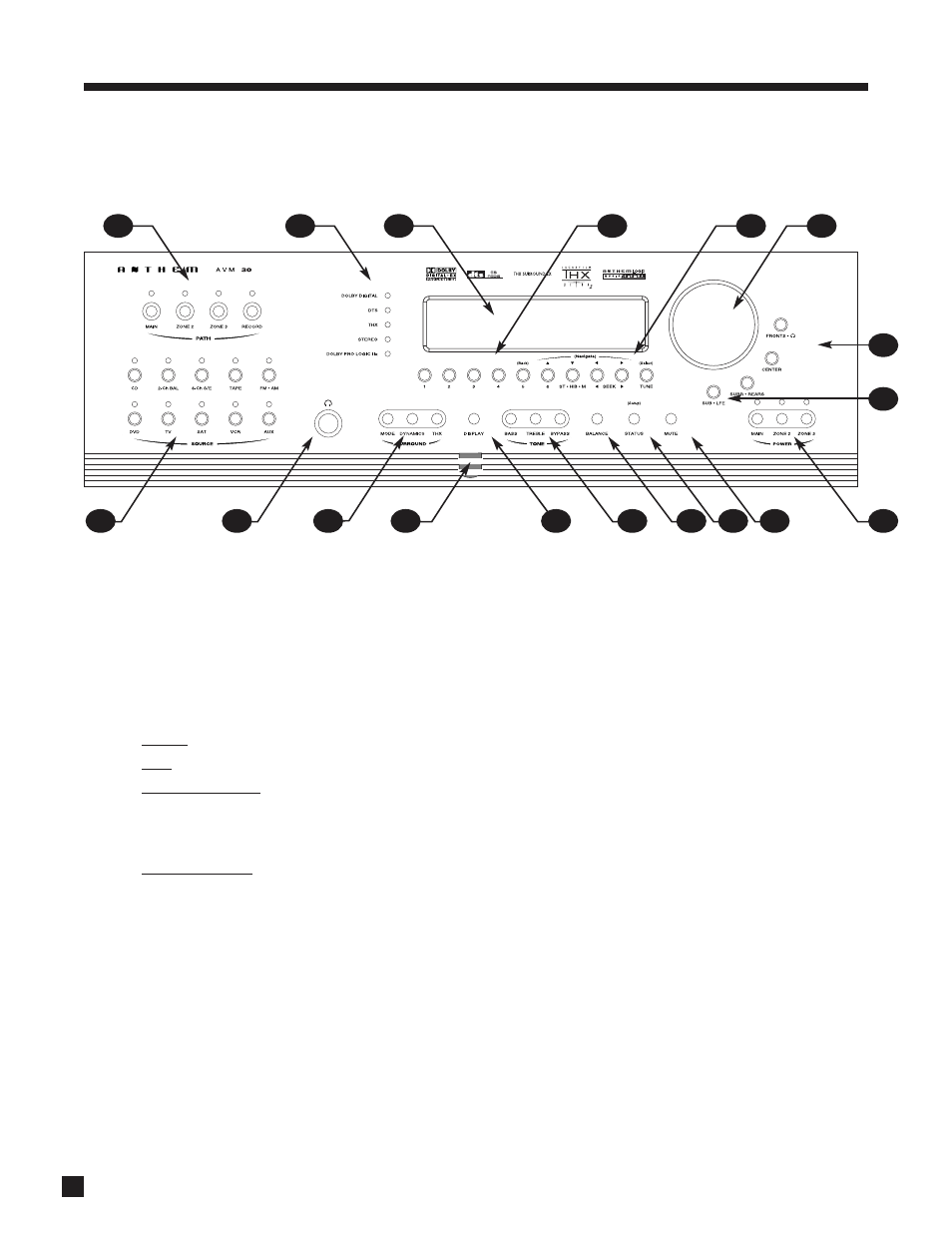

FRONT PANEL
1 – Path selection
2 – Mode / Surround Decoder indicators
3 – Display
4 – FM • AM Preset selection
5 – FM • AM Tuning / Setup navigation
6 – Master Control Knob
•
Volume
•
Tune for FM • AM
•
Setting Adjustment for Mode, DD Dynamics, THX
Options, Surround Mode Level / Bass / Treble /
Balance, Path Bass / Treble / Balance, Display
Brightness
•
Setup Adjustment for Letters, Numbers, and Times
7 – Surround Mode / Headphone settings for Level /
Bass / Treble / Balance
8 – Subwoofer / LFE Level settings
9 – Power On / Stand-By (MAIN / ZONE2 / ZONE3)
10 – Mute
11 – Status review / Setup (press and hold for 3 seconds)
12 – Balance setting
13 – Bass / Treble settings
14 – LED / Display Brightness setting (see section 3.10)
15 – Front Panel Remote Control IR Sensor
16 – Surround Mode / Dynamics / THX Options settings
17 – Headphone Jack
18 – Source selection
