Connections, Continued, Example 2: video recorder to avm 30 – Anthem AVM 30 User Manual
Page 21
©
©
©
©
13
2. CONNECTIONS
continued …
VCR
EJECT

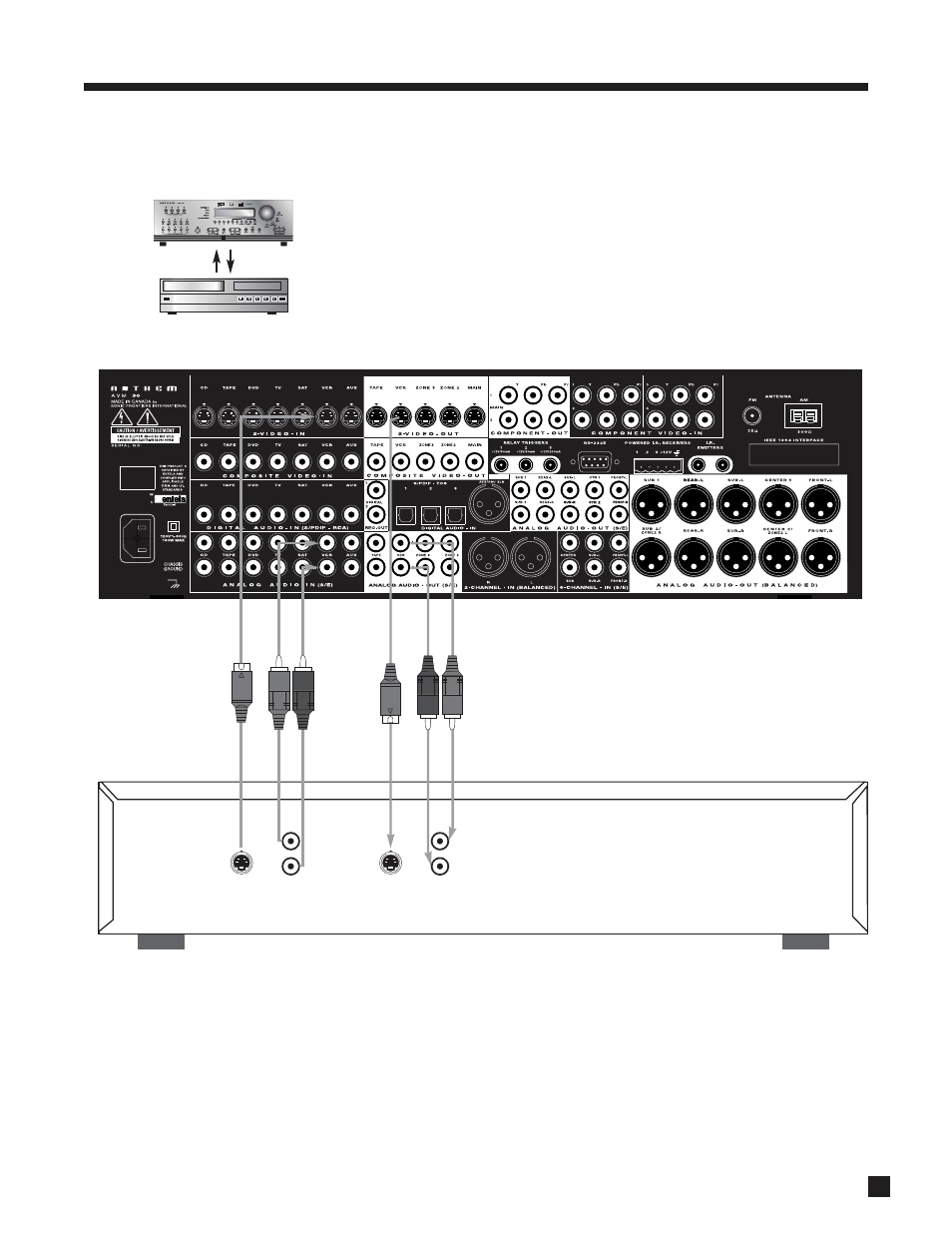

Example 2: Video Recorder to AVM 30
AUDIO
OUT
L
R
AUDIO
IN
For ZONE2, ZONE3, and
REC, in most cases you
must use the same input
type as the output type.
If MAIN uses a different
input connection, all you
need to do is add these
connections for ZONE2,
ZONE3, and REC.
VIDEO
OUT
VIDEO
IN
L
R
