1.5 FRONT PANEL DISPLAY

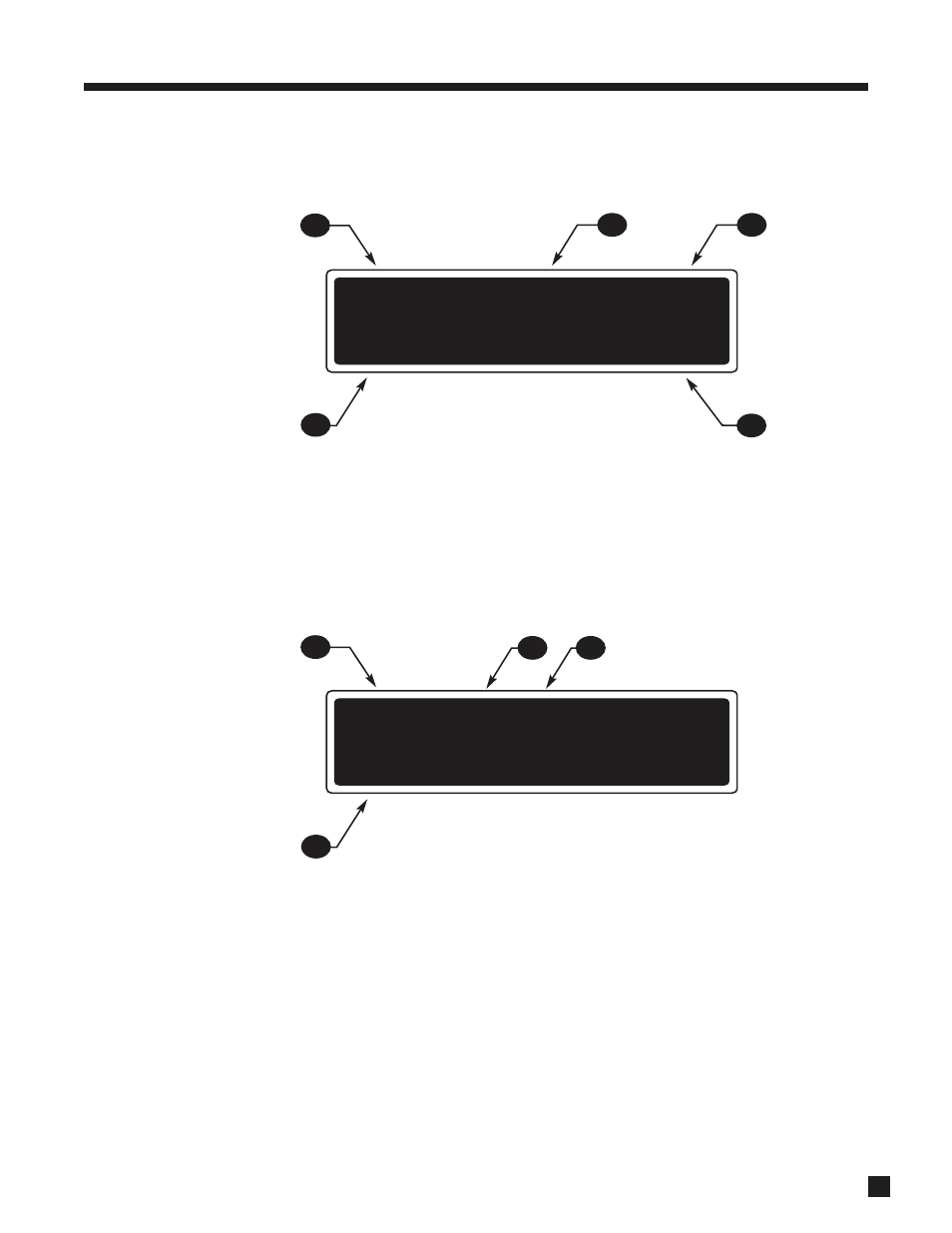

MAIN Display Example:
1 – Source selection.
2 – Audio Input Format or Sleep indication if engaged.
3 – Path that the information on the display refers to.
4 – Volume.
5 – Surround Mode.
FM • AM Display Example:
1 – Band+Bank+Preset. The tuner has three FM banks (FM1, FM2, and FM3) and one AM bank.
2 – FM mode. Displays “St” when in stereo, “HB” when in Hi-Blend, or “Mn” when in mono.
3 – Seek and scan indications.
4 – Currently tuned FM • AM frequency to the nearest 0.1 MHz for FM and to nearest 10 kHz for AM.
If changes take place simultaneously in different Paths, the hierarchy of the display info is:
i) Volume changes, ii) Front Panel activity, iii) MAIN, iv) ZONE2, v) ZONE3, vi) RECORD, vii) HEADPHONE.
1. INTRODUCTION
continued …
5 4
3 2 1
4
1 3 2
DVD Dolby D MAIN
5.1+PLIIx Mov - 18.5
FM2-5 St Sk> MAIN
101.3 MHz -18.5 dB
