Page 20
12 Input and Output Adapters

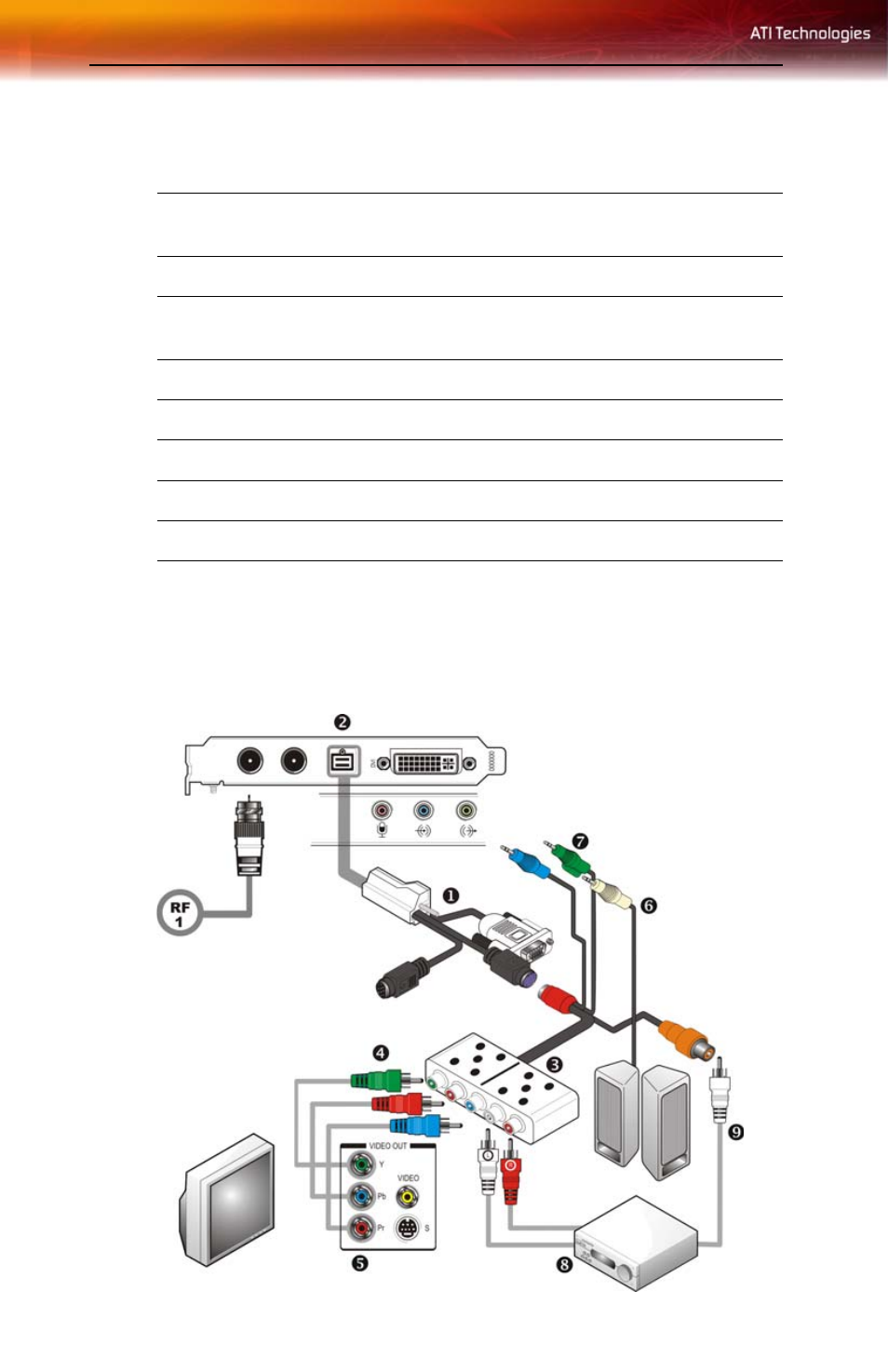

Watching your PC Output on High-definition TV
Use the ATI output adapter to connect a high definition TV (North America
only) to your All-In-Wonder® X1800 card, as shown.
1
Typical VCR or camcorder audio and video input connectors. Use
composite video in or S-Video in; S-Video will provide better results.
To use your TV as a display, you must enable TV Out .
2
Cables with RCA plug at each end, available separately from a
consumer electronics dealer.
3
Cable with S-Video plug at each end.
4
ATI Output Adapter. You can snap the adapters together for
convenient placement and use.
5
Input / Output connector
6
All-In-Wonder® X1800 card.
7
PC speaker connection (optional).
8
Line-In to sound card
9
Dolby® Digital AC-3 Amplifier.
