Ridetech 41190000 - Manual (Page 11)

Air Ride Technologies
Hoop Clamp
Main Hoop
(7090)
Main Hoop
Mounting
Bracket
Wire Trough
Body Seam
Upper Tab
Reinforcement
Plate (7090)
Reinforcement
Plate (70908)
9
41190000
74-81 Camaro TigerCage
Main Hoop Installation
NOTE: After the holes have been drilled, If you
prefer the mounting brackets over the carpet,
lay the carpet back in place and use a sharp
prick punch to locate the mounting holes in the
floor pan. With a sharp utility knife cut holes in
the carpet at the bolt locations.

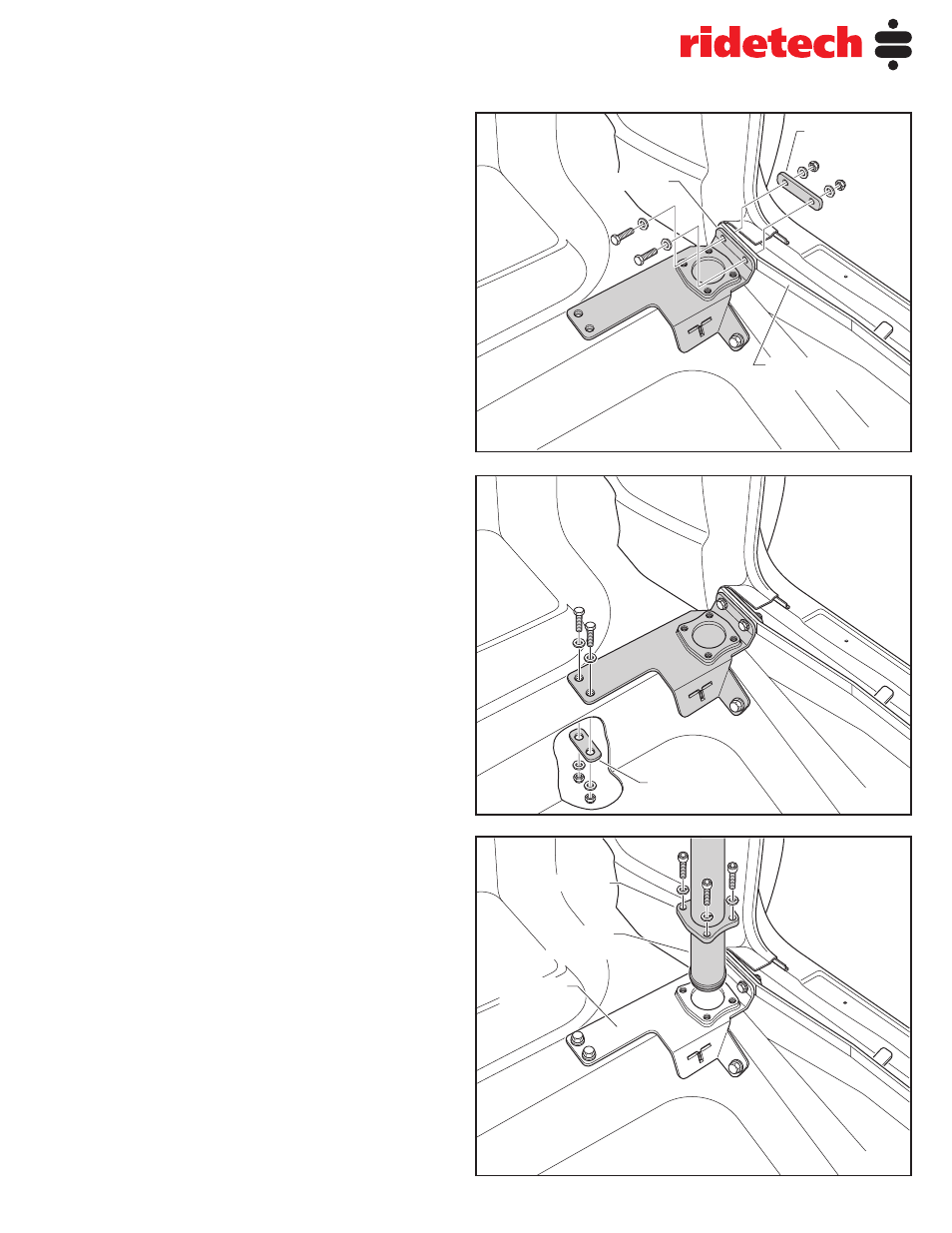

Step 0. Sandwich the wire trough body seam
between the upper tab of the mounting bracket
and reinforcement plate Part # 7090.
Secure using two 3/8” x 1 ¼” bolts, flat wash-
ers and Nylok nuts (See Fig 18).
Step . Secure a third reinforcement plate
Part # 70908 to the main hoop mounting
bracket with two 3/8” x 1 ¼” bolts, flat washers
and Nylok nuts (See Fig 19).
Step . Repeat steps 17 through 21 for
installation of the passenger side main hoop
mounting bracket Part # 9090.
IMPORTANT:
Use Anti-Seize on all fasteners
that are threaded into stainless clamps or
brackets.
Step . Insert both ends of the main hoop
Part # 7090 into the main hoop mounting
brackets (See Fig 20). Slip four 3/8” x 1” socket
head cap screws and lock washers through the
hoop clamps and fasten to the main hoop
mounting brackets. Do not tighten yet.
Fig 8
Fig 9
Fig 0
