Step 2 – Quick Fuel Technology Qfi Electronic Fuel Injection System User Manual
Page 21
21

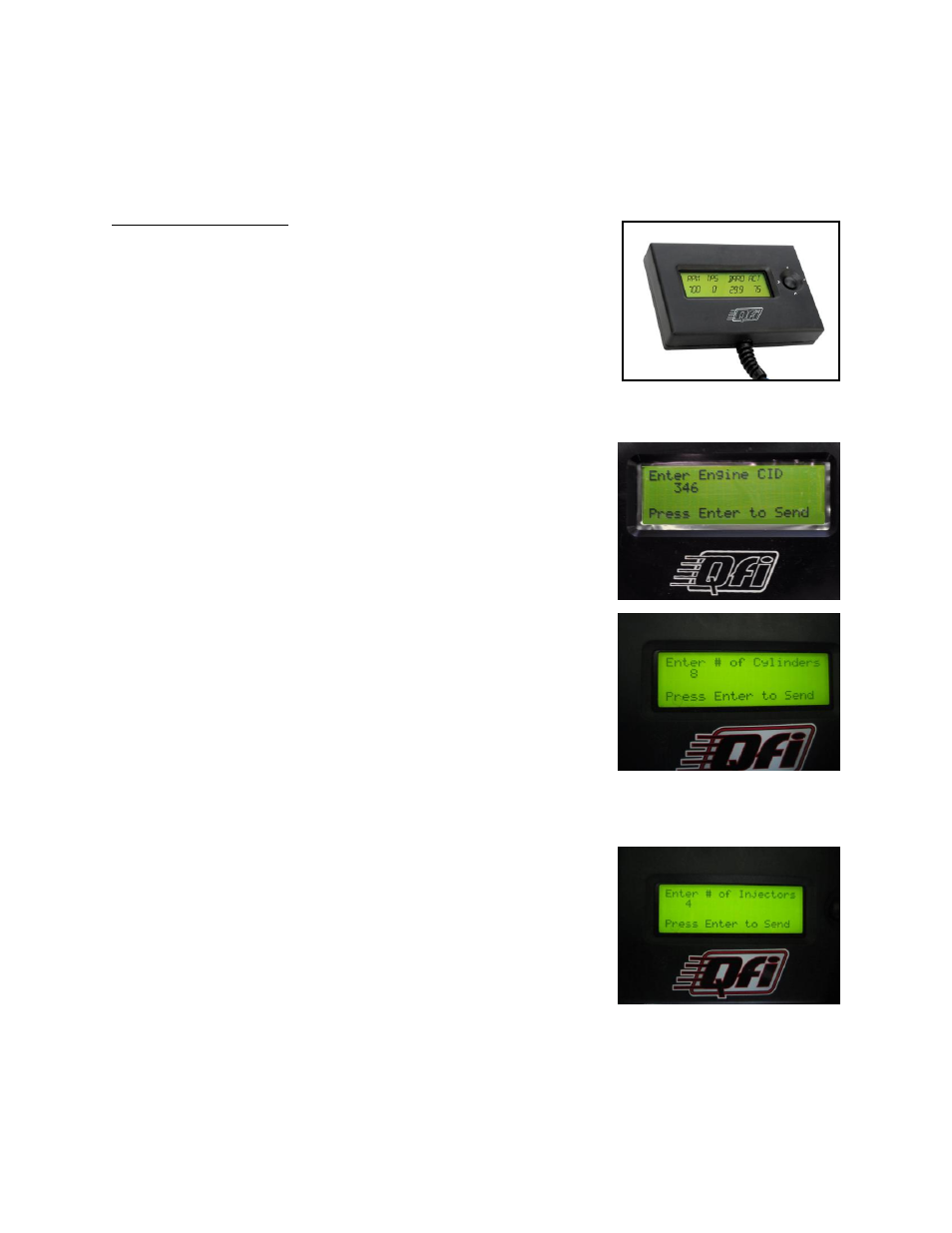

HANDHELD Controller
If the
HANDHELD
displays a “COMM ERROR” message, see if the
HANDHELD’s
communication
cable is connected, and that the ECU is powered on. Then press the RESET button on the
HANDHELD
.
STEP 2
- BEGIN SETUP
1. Using the UP/DOWN controller buttons, select “Initial Setup”
and press “Enter”
2. You will begin to enter the engine’s basic parameters into the
ECU’s memory
3. Once you enter these it into the ECU memory, you can edit
them later using the “Advanced Setup” menu or with the
DASHBOARD program
4. Enter the engine’s displacement (cubic inches)
5. Enter the number of cylinders
For the Qfi system this will be either 6 or 8
6. Enter number of injectors
For the Qfi system, enter 4
